Grounding Point G41P
Location: On the center ground screw in the middle of the knee member (in the interior).

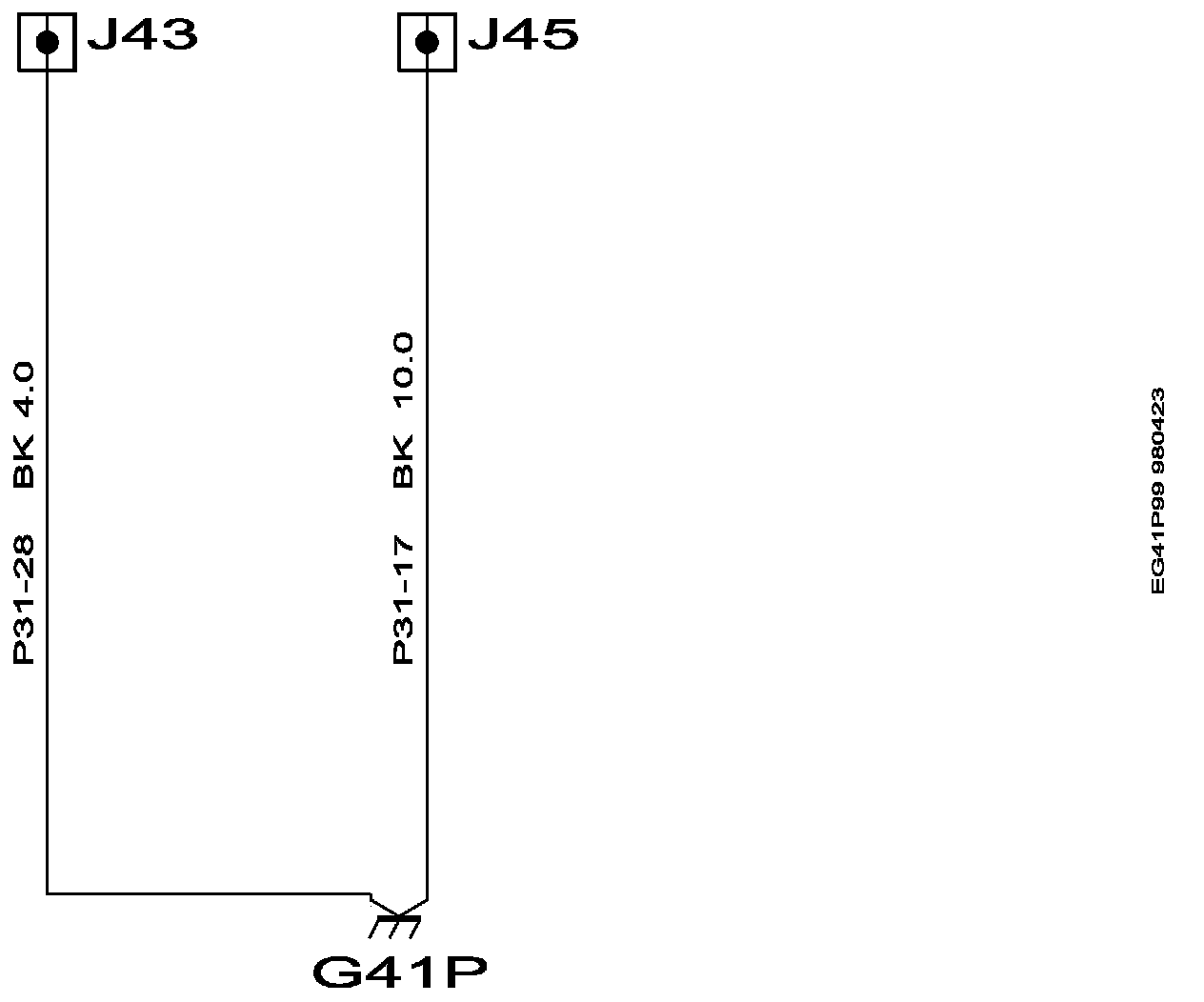

Grounding Point G41P:

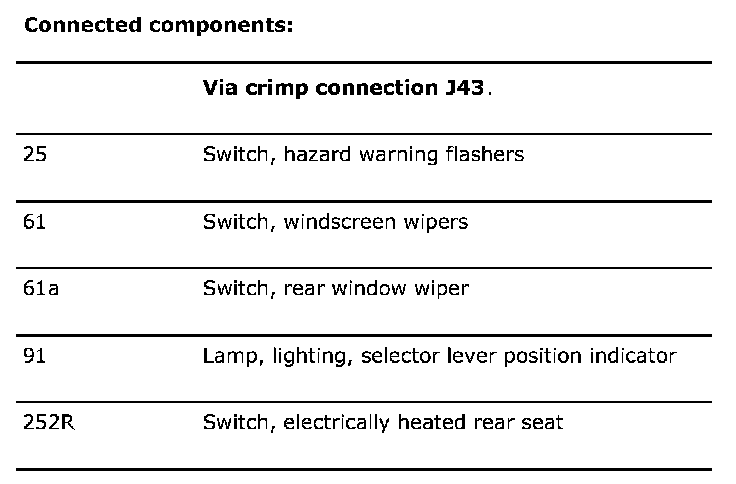

Connected Components (Part 1):

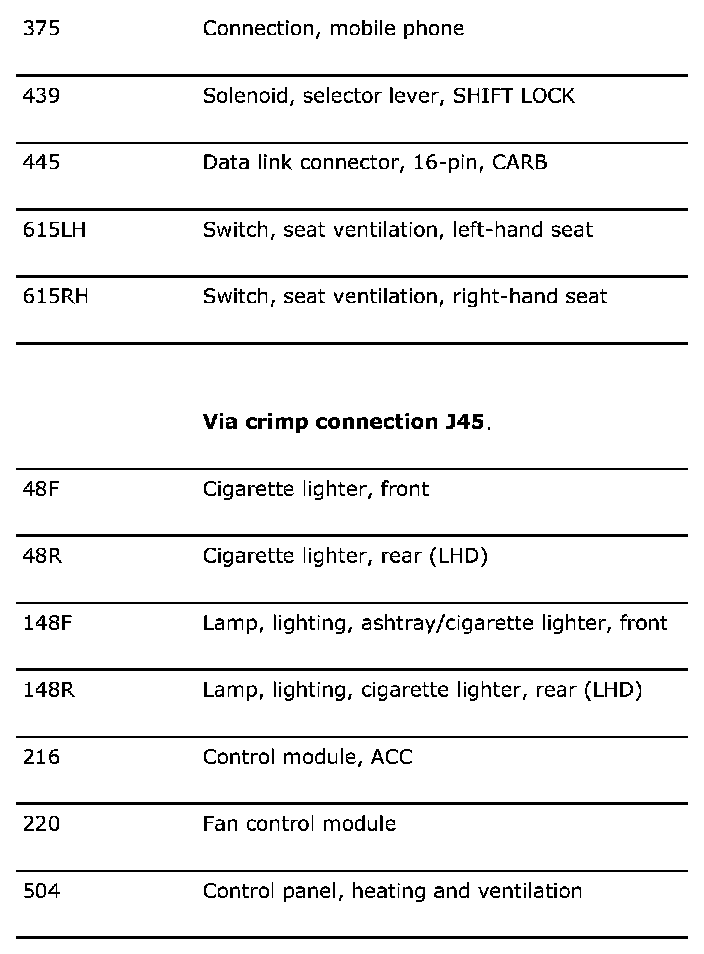

Connected Components (Part 2):
Location: On the center ground screw in the middle of the knee member (in the interior).
