Grounding Point G42
Grounding Point G42

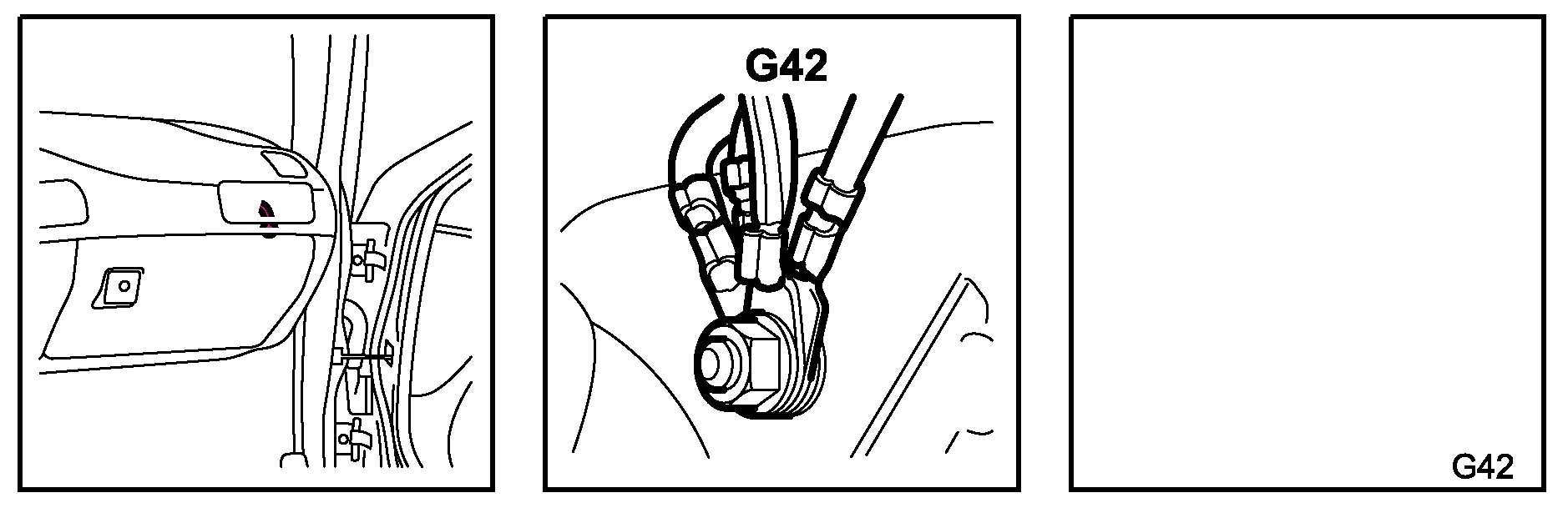

Location:
On the right-hand side of the knee member.

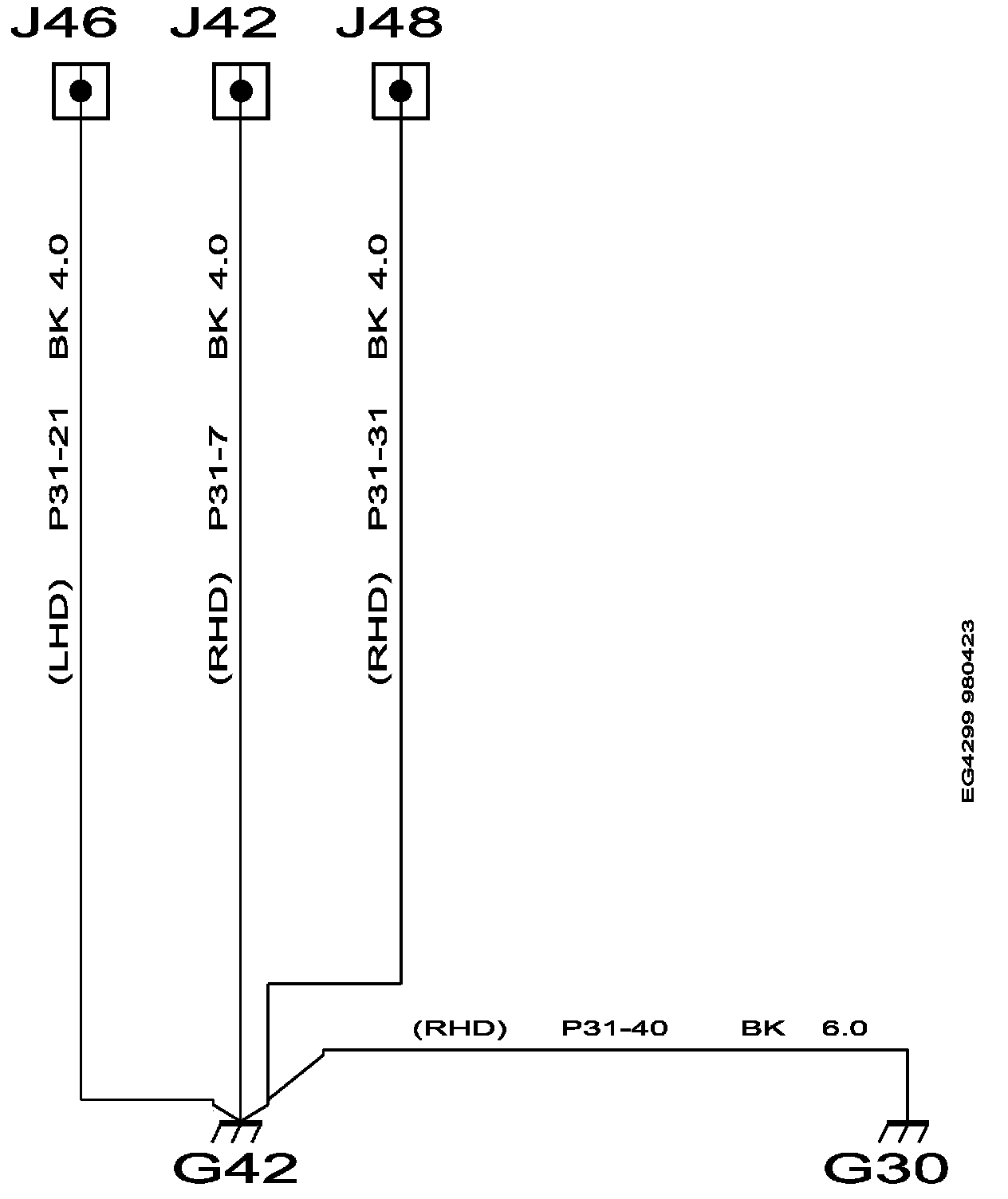

Grounding Point G42:

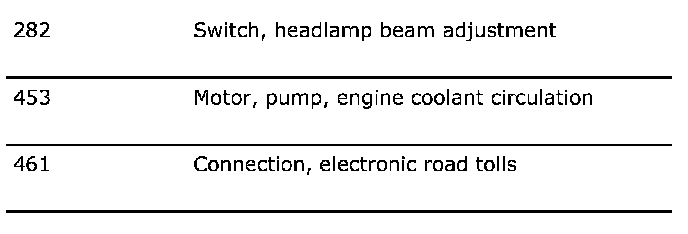

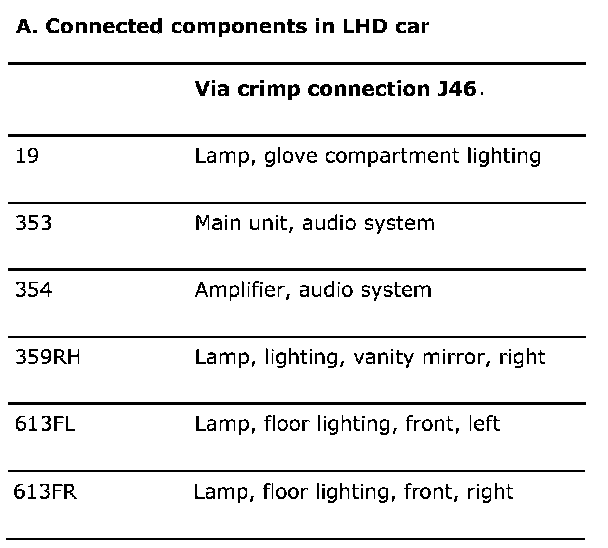

Connected Components (Part 1):
Connected Components (Part 2):
Connected Components (Part 3):
