Engine: Tools and Equipment

Lifting trolley
83 94 793 Lifting trolley
83 94 801 Parent fixture
83 95 170 Adjustable feet
83 95 196 Assembly fixture
83 95 188 Fixture





Lifting beam
83 94 850 Lifting beam





Holder, V6
83 95 287 Holder, V6





Power unit lifting sling
83 92 409 Power unit lifting sling





Holder
83 94 751 Holder





Work stand
78 74 878 Work stand





Shaft, for floor stand
83 90 478 Shaft, for floor stand





Valve rack
83 93 787 Valve rack





Protective sleeve
83 95 022 Protective sleeve





Counterstay
83 95 063 Counterstay





Flywheel locking segment
83 94 868 Flywheel locking segment





Piston fitting tool
83 95 113 Piston fitting tool





Assembly set for rear crankshaft seal

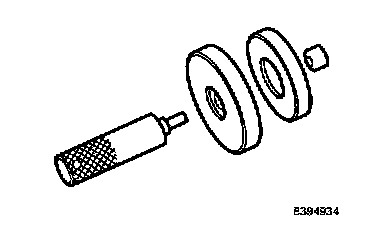

83 94 934 Assembly set for rear crankshaft seal (consisting of 83 94 97 and 83 94 975)





Assembly tool for front crankshaft seal
83 94 942 Assembly tool for front crankshaft seal





Installation tool for camshaft sprockets and camshaft drive belt

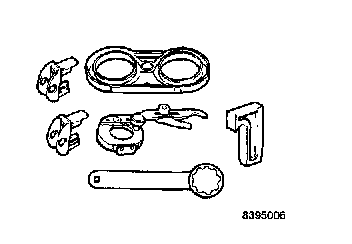

83 95 006 Installation tool for camshaft sprockets and camshaft drive belt (consisting of KM-800-1/-21-10/-20/-30 and 83 94 983)





Assembly tool for camshaft seal
83 94 959 Assembly tool for camshaft seal





Belt tension meter
83 93 985 Belt tension meter





Fixture, cylinder head
83 95 055 Fixture, cylinder head





Valve spring compressor
83 95 246 Valve spring compressor





Pliers for removing valve stem seal
83 94 157 Pliers for removing valve stem seal





Assembly tool for valve stem seal
83 95 071 Assembly tool for valve stem seal





Magnetic tool
83 91 401 Magnetic tool





Compressed air adapter for spark plug hole
83 94 173 Compressed air adapter for spark plug hole





Valve guide reamer
83 95 089 Valve guide reamer





Locating shaft for valve seat cutter
83 95 097 Locating shaft for valve seat cutter

83 93 936 Valve seat cutters, 60 Degrees:

Valve seat cutters
78 61 040 Valve seat cutter 45°
83 95 105 Valve seat cutter 70°
83 93 936 Valve seat cutter 60°





Dial gauge
87 92 194 Dial gauge





Holder
87 90 727 Holder





Spring balance
83 90 130 Spring balance





Wedge
83 95 238 Wedge





Strap
83 95 212 Strap





Converter holder

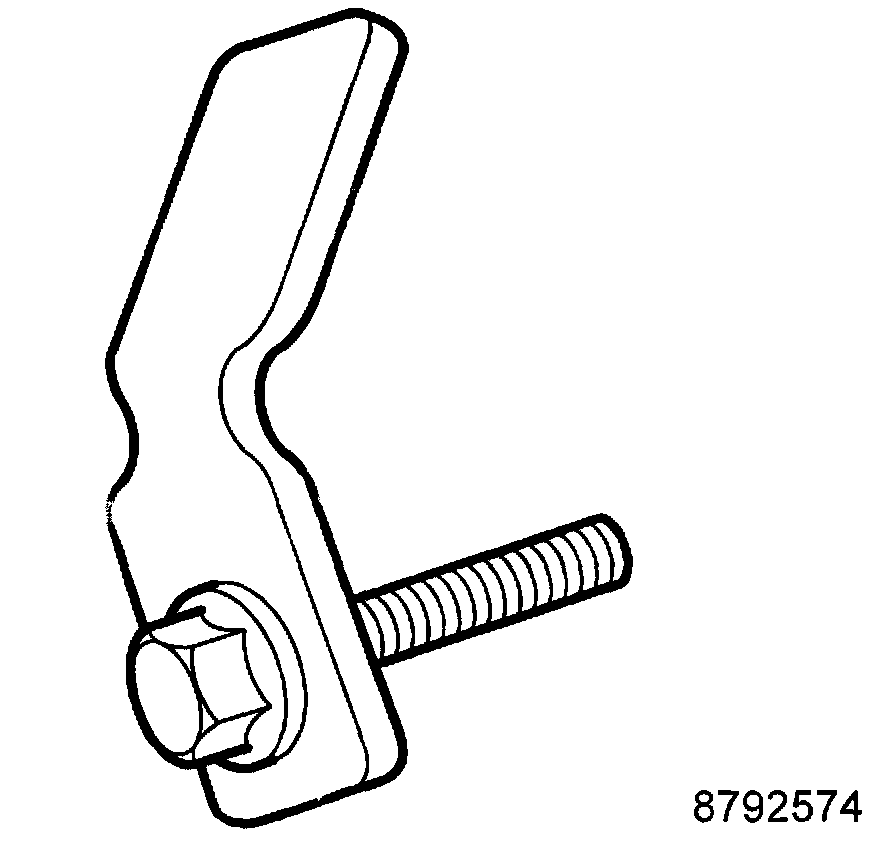

87 92 574 Converter holder





Spark plug socket
83 95 485 Spark plug socket





Plastigage
(45) 30 08 558 Plastigage





Puller, ball joint
89 96 696 Puller, ball joint
