Home >> Saab >> 2000 >> 9-5 SE Sedan (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Switch >> Diagrams

Blower Motor Switch: Diagrams

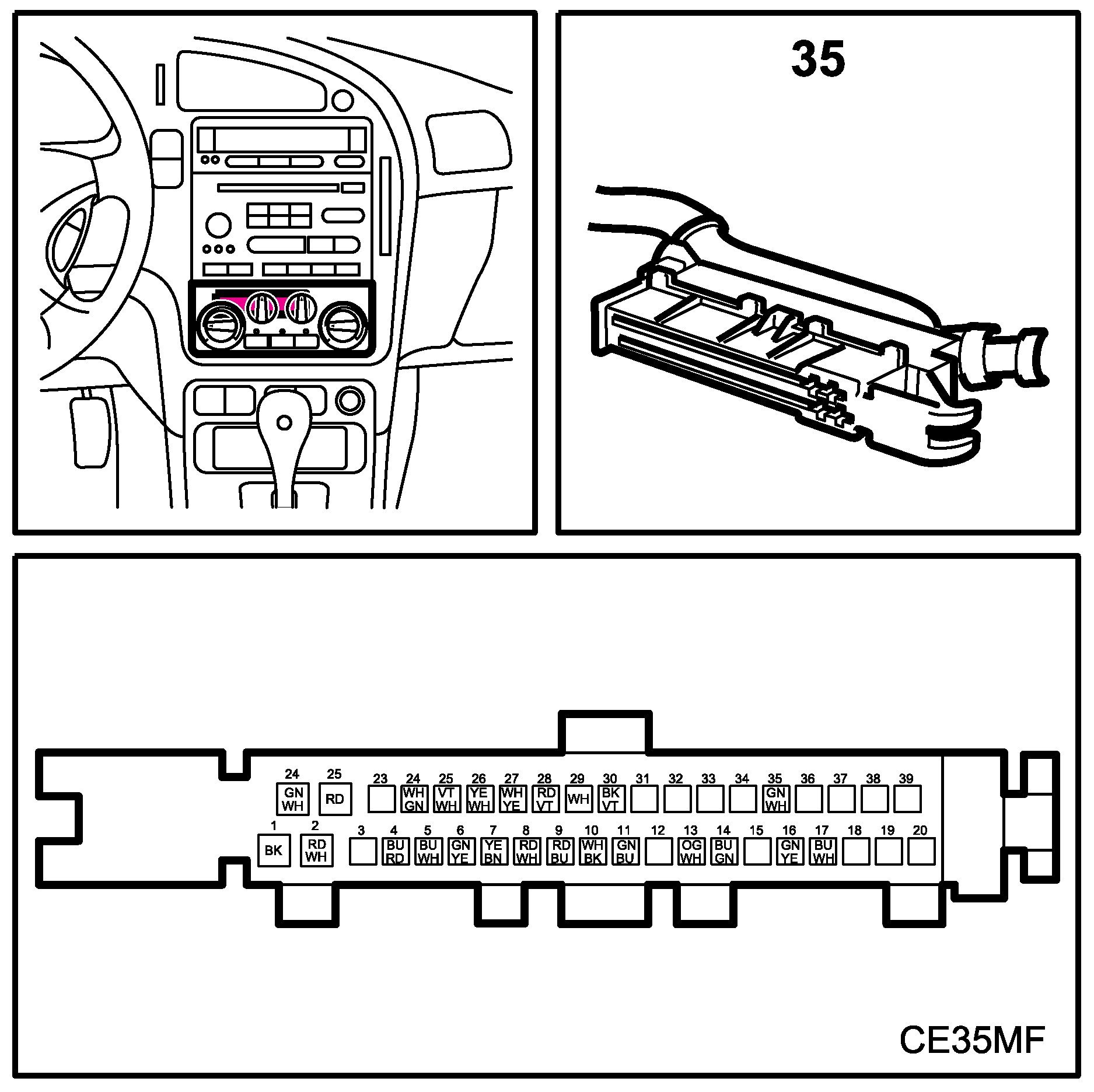

Switch, Ventilation Fan (35):
