Outer Light Cluster, Rear 4D

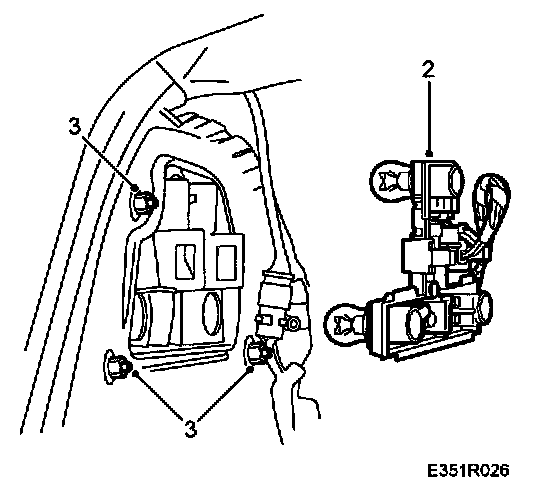

To remove





1 Unscrew the nuts holding the side trim and fold down the trim.





2 Loosen the lamp holder.
3 Unscrew the lamp housing retaining nuts and remove the rear light.

To fit





1 Position the lens correctly and screw on the retaining nuts.
2 Fit the lamp holder.





3 Fit the trim.

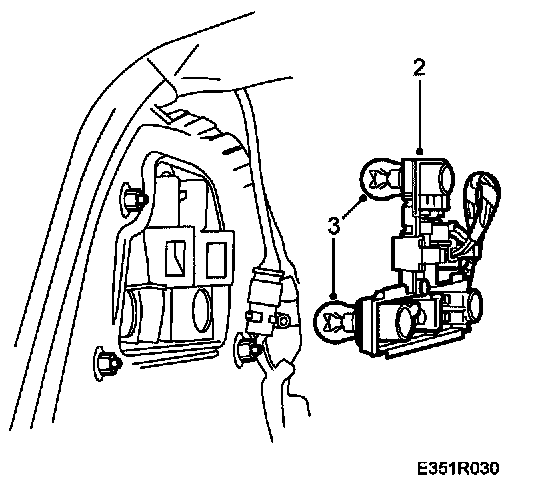

Replacement of lamp bulb





1 Open the cover in the trim.





2 Loosen the lamp holder.
3 Change the bulb in the lamp holder.
4 Fit the lamp holder.
5 Put back the trim cover.
