Spotlight Bulb

Changing

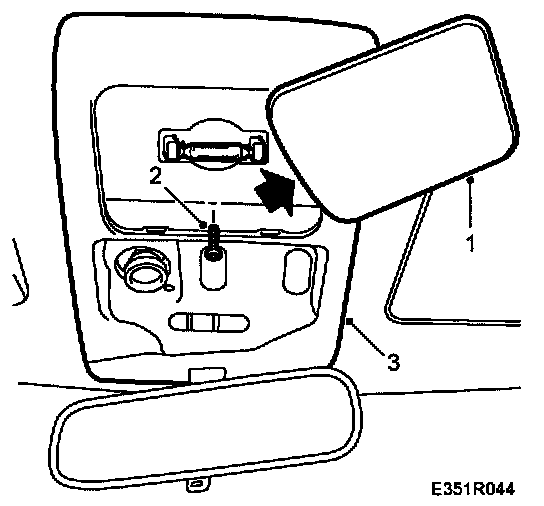

1 Remove the cover glass.
2 Remove the cover retaining screw.
3 Remove the temperature sensor and microphone from the cover (certain markets).

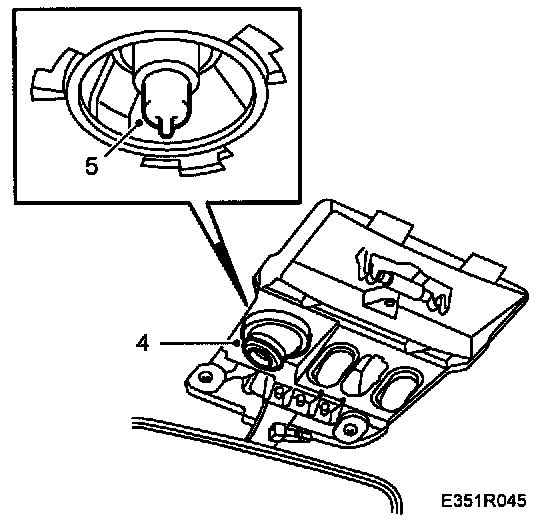

4 Remove the spotlight reflector by turning it anti-clockwise.
5 Change the bulb.
6 Fit the spotlight reflector by turning it clockwise.
7 Fit the temperature sensor and microphone to the cover (certain markets).
8 Fit the cover and retaining screw.
9 Fit the cover glass.
