Switch Bulbs

Changing bulb in switch between steering wheel and driver's door.
1 Remove the main fuse box cover.
2 Insert a hand into the hole and press out the switch from inside.
3 Turn the bulb on the bottom of the switch anti-clockwise and pull it straight out.
4 Fit a new bulb and press the switch into the panel.
5 Fit the main fuse box cover.

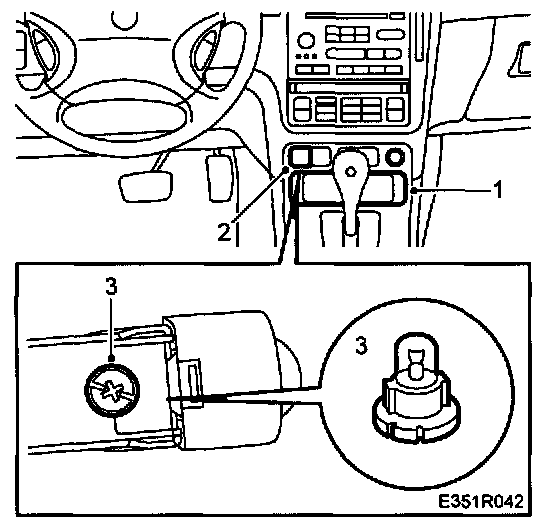

Changing bulb in the switch in the switch panel





1 Remove the storage compartment or ashtray.
2 Insert a hand into the hole and press out the switch from inside.
3 Turn the bulb on the bottom of the switch anti-clockwise and pull it straight out.
4 Fit a new bulb and press the switch into the panel.
5 Fit the storage compartment or ashtray

Replacing bulb in hazard flasher switch





1 Pull out the switch with two screwdrivers. Remove the lamp.
2 Fit a new bulb and press the switch into the pane
