Home >> Saab >> 2001 >> 9-5 Aero (9600) L4-2.3L Turbo (B235) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

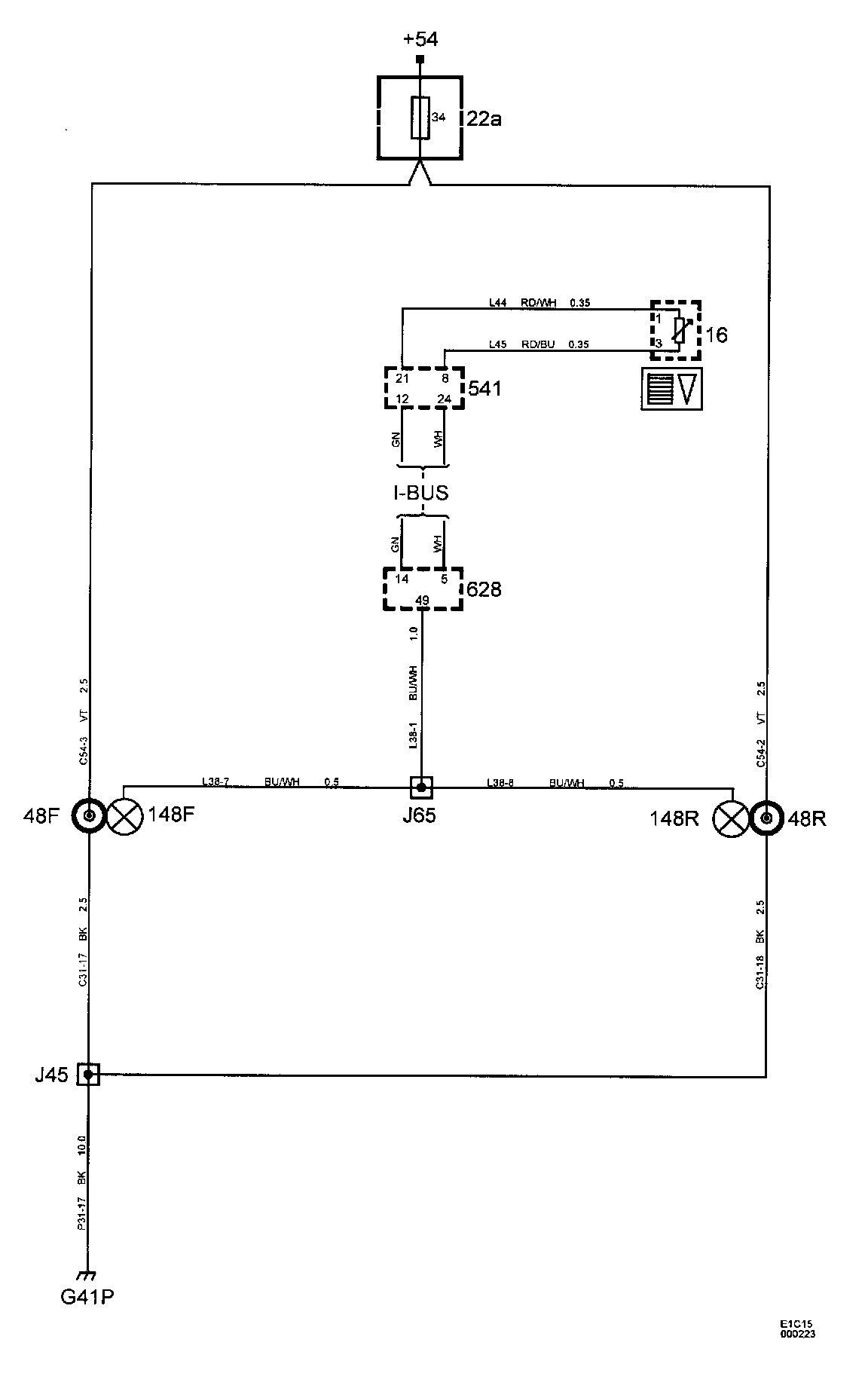

Cigarette Lighter

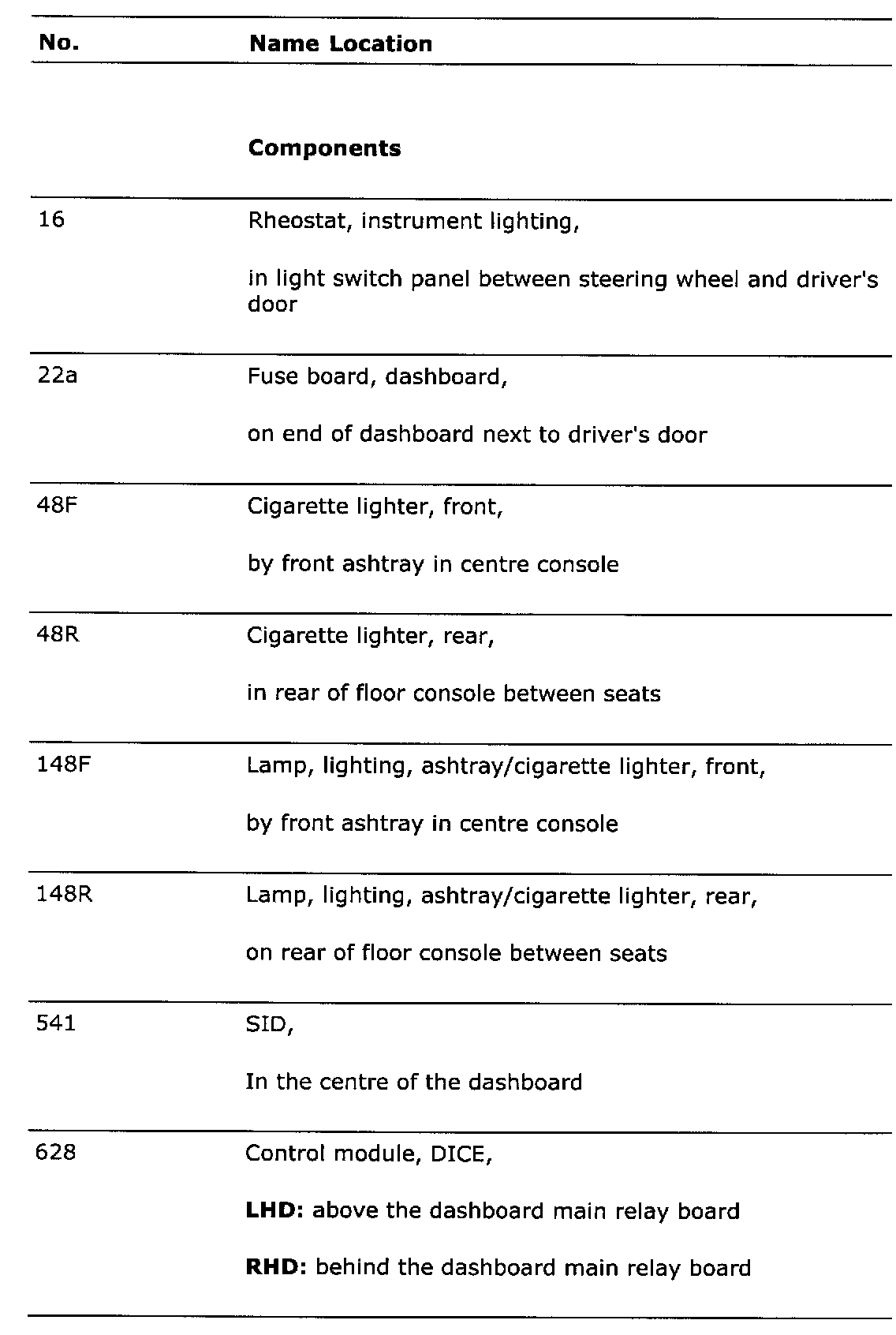

List of components

Part 1:

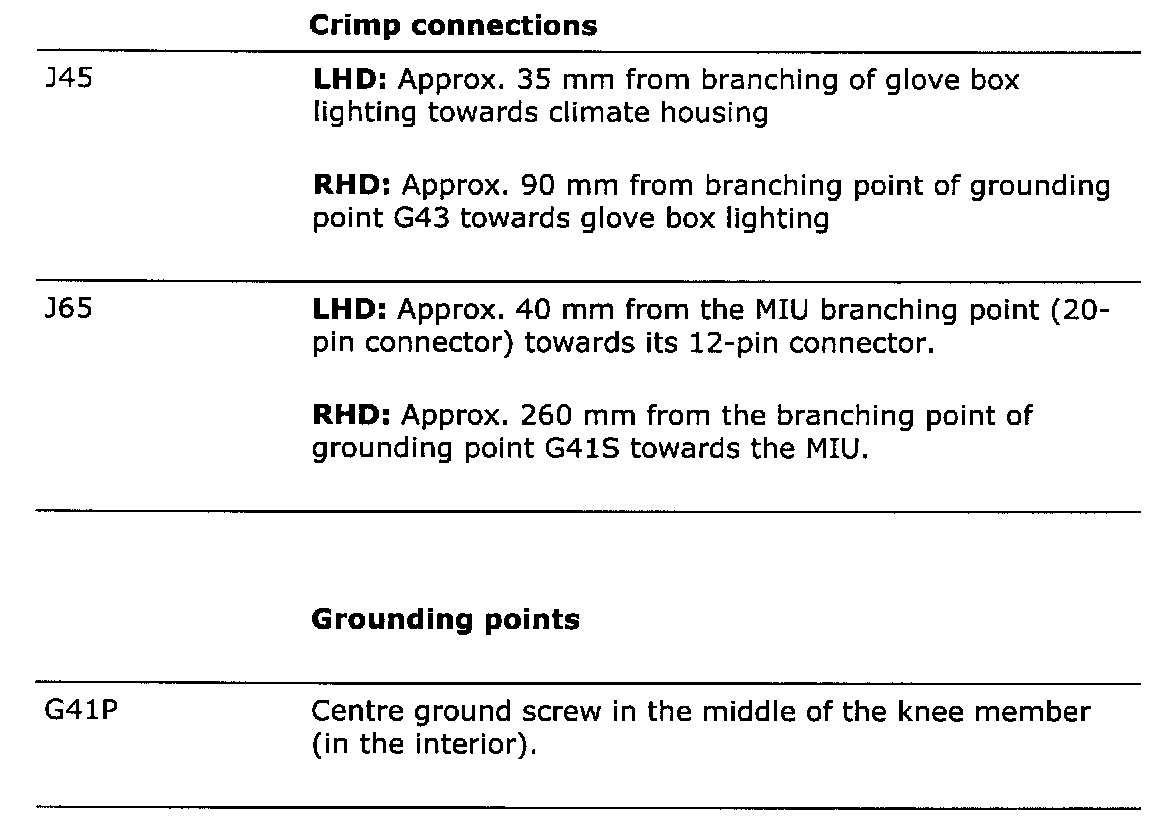

Part 2:
