Direction Indicator Repeater Lamps RH And LH

Direction Indicator Repeater Lamps RH And LH












The repeater lamps are situated in the upper part of the main instrument unit and show when the direction indicators are on.

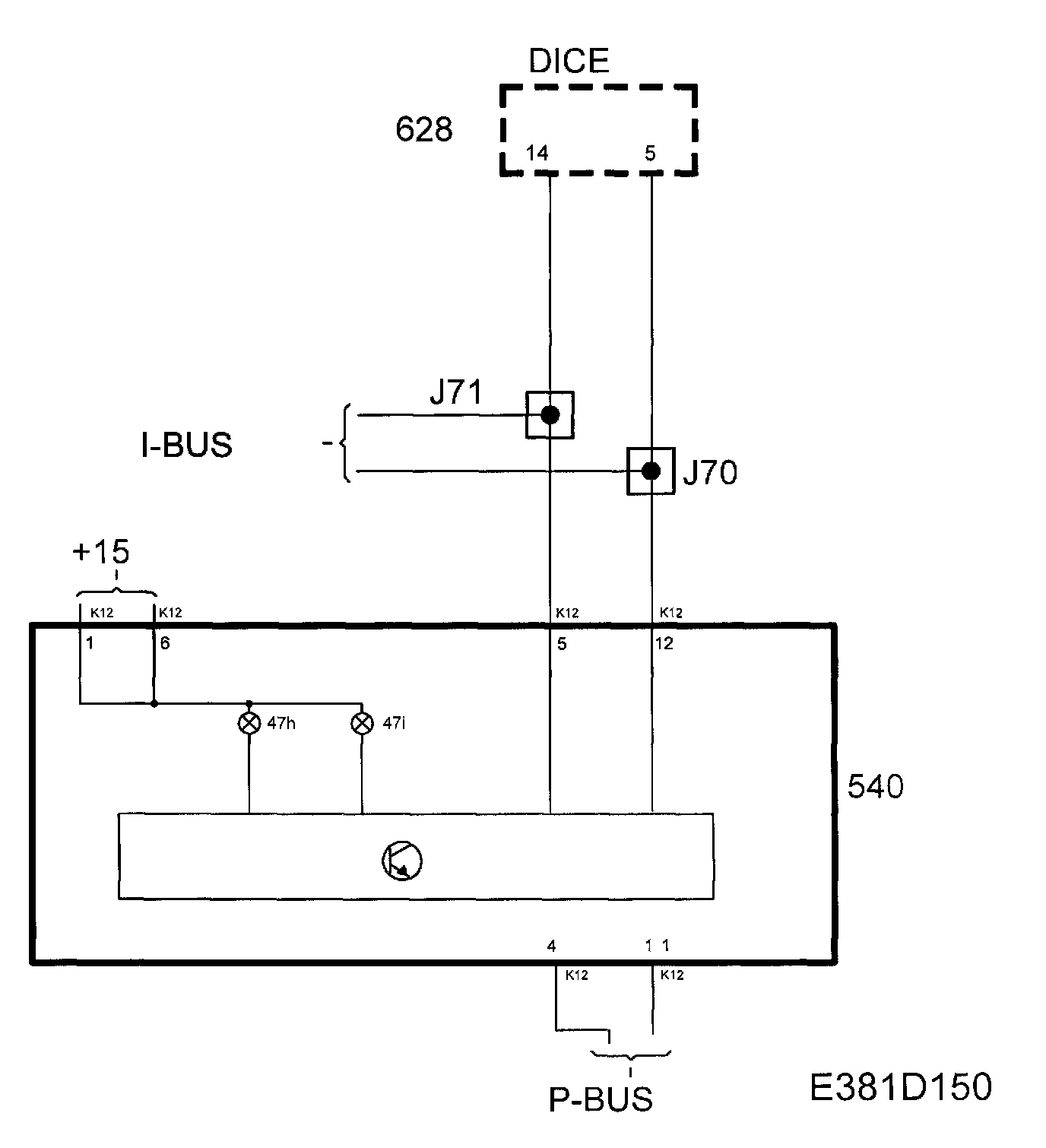

The lamps are supplied with current in the main instrument unit and grounded by the MIU's control module. DICE continuously sends bus information on the status of DIRECTION INDICATORS RIGHT and DIRECTION INDICATORS LEFT, unit ON/OFF.

On receiving DIRECTION INDICATORS ON, the control module grounds the output of the lamp in question which then lights up.

Example

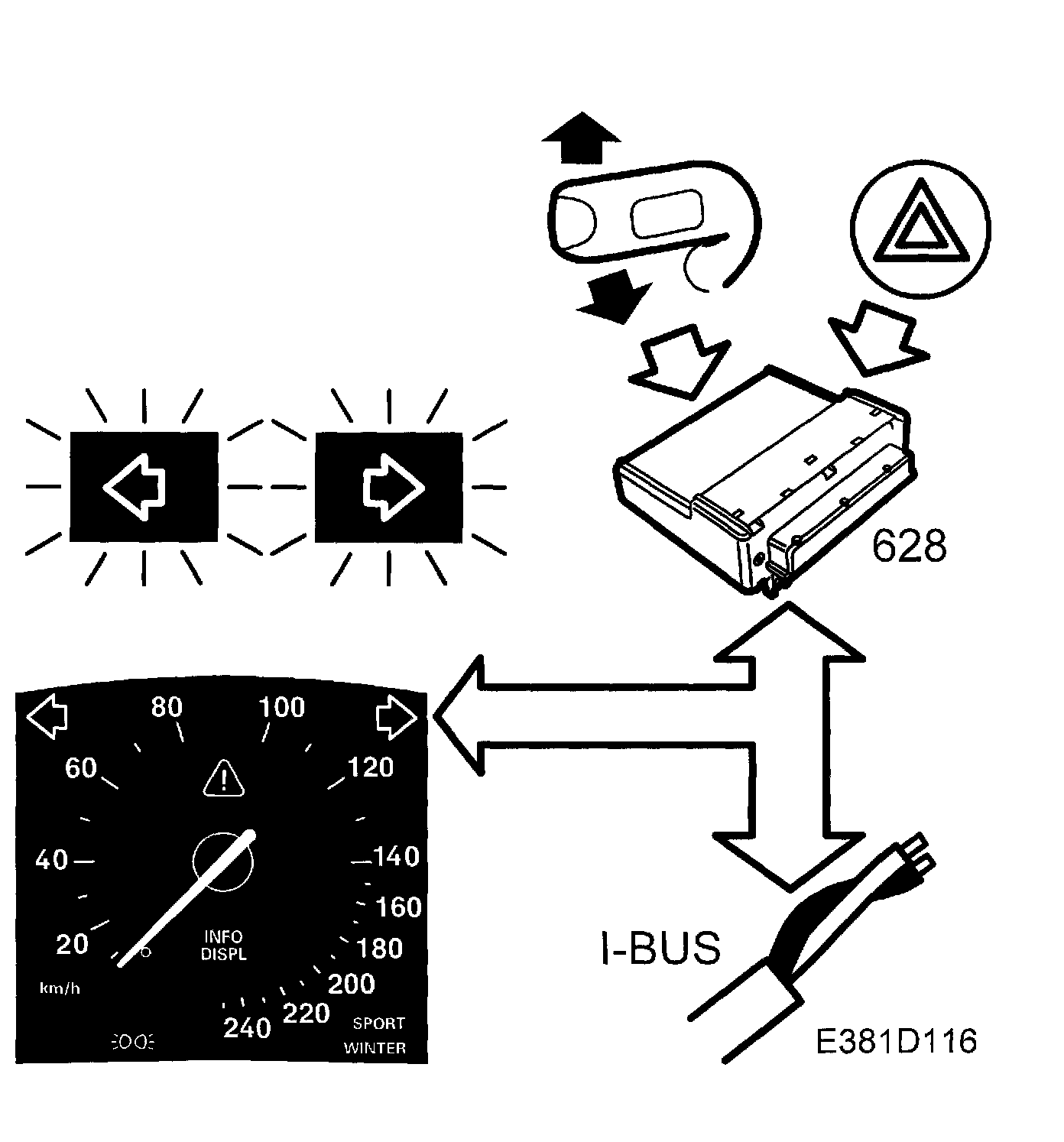

If the LH direction indicators are activated, DICE will change the status of the information DIRECTION INDICATORS LEFT ON/OFF at the same time as the direction indicator lamps are lit. In this way, the main instrument unit control module can synchronize the flashing of the repeater lamps with the direction indicator lamps.

The SID also activates the TIC-TAC sound at the same time as the lamps flash.

The function is the same for the RH direction indicators.

Hazard flashers
The function for the hazard flashers is the same as for the direction indicators LH/RH except that both lamps are activated at the same time.

When the hazard flashers are activated and the ignition is OFF, the indicator lamps will not flash.

Diagnostics
The function has no diagnostics.
