Warning Lamp, Handbrake

Warning Lamp, Handbrake

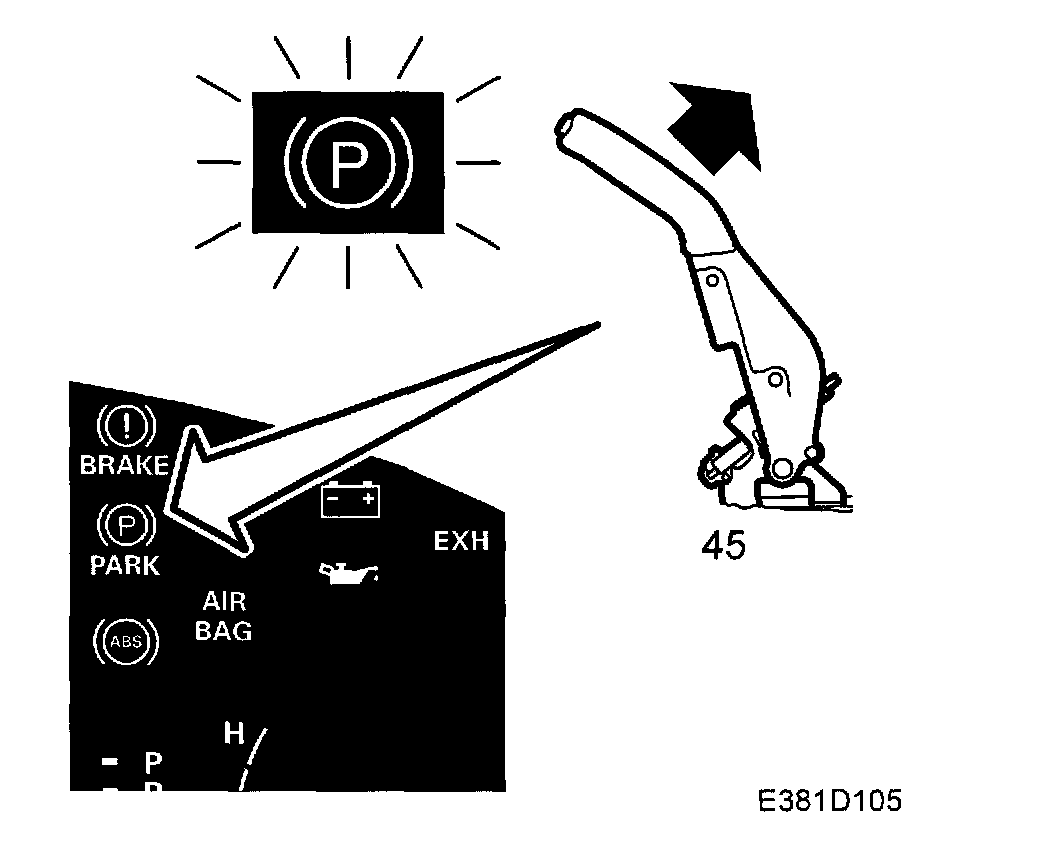

The handbrake warning lamp is situated on the right-hand side of the main instrument unit and informs the driver if the handbrake is applied.

The lamp is supplied with current in the main instrument unit. As long as the handbrake remains applied, the switch operated by the handbrake lever grounds the lamp via terminal 11 (K20), causing it to light up.

If vehicle speed exceeds 5 km/h from a speed less than 5 km/h while the handbrake is applied, the central warning lamp also lights and the MIU sends a request to the SID to activate an acoustic signal.

Diagnostics
The function has no diagnostics.
