Fuse Board 342a In Engine Bay




Fuse Board 342a In Engine Bay

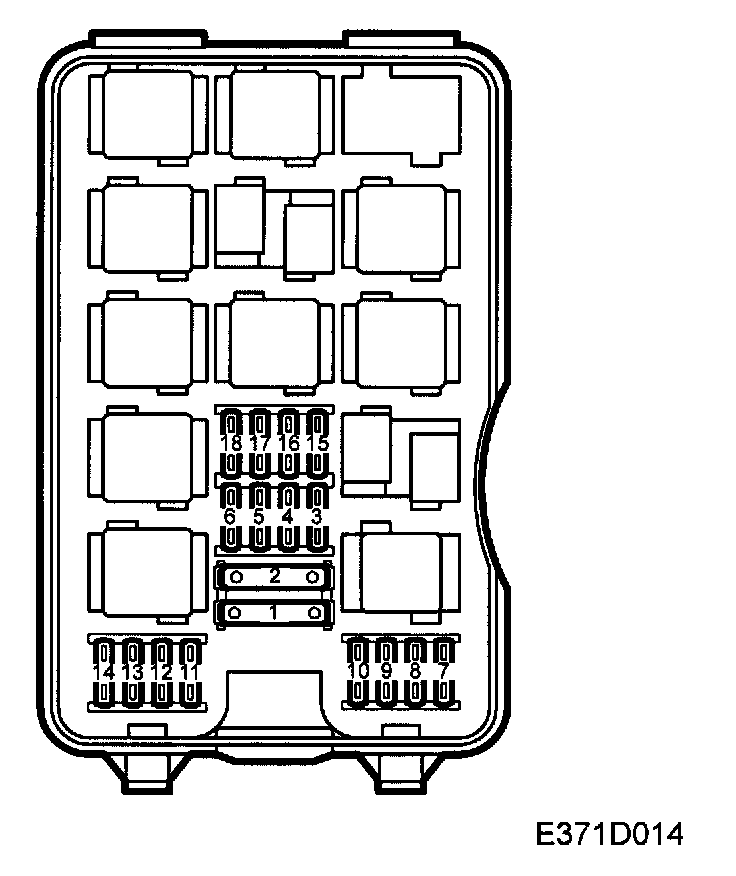

Panel Layout:

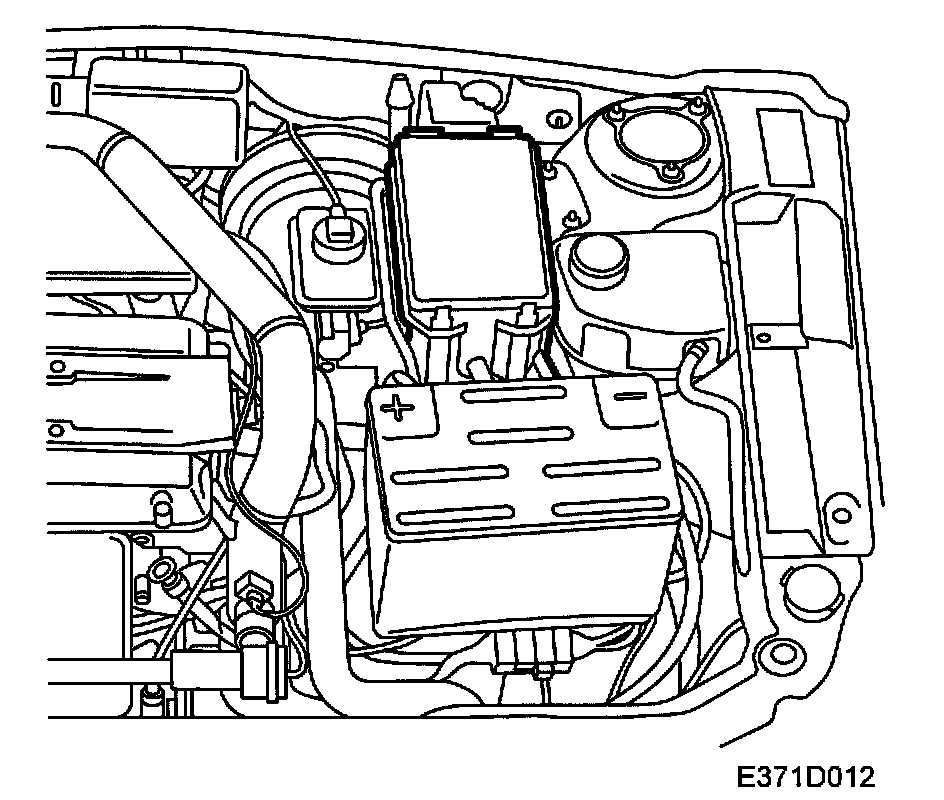

Panel Location:




Behind the battery
The upper socket (maxi-fuse = left-hand socket) is for incoming voltage.

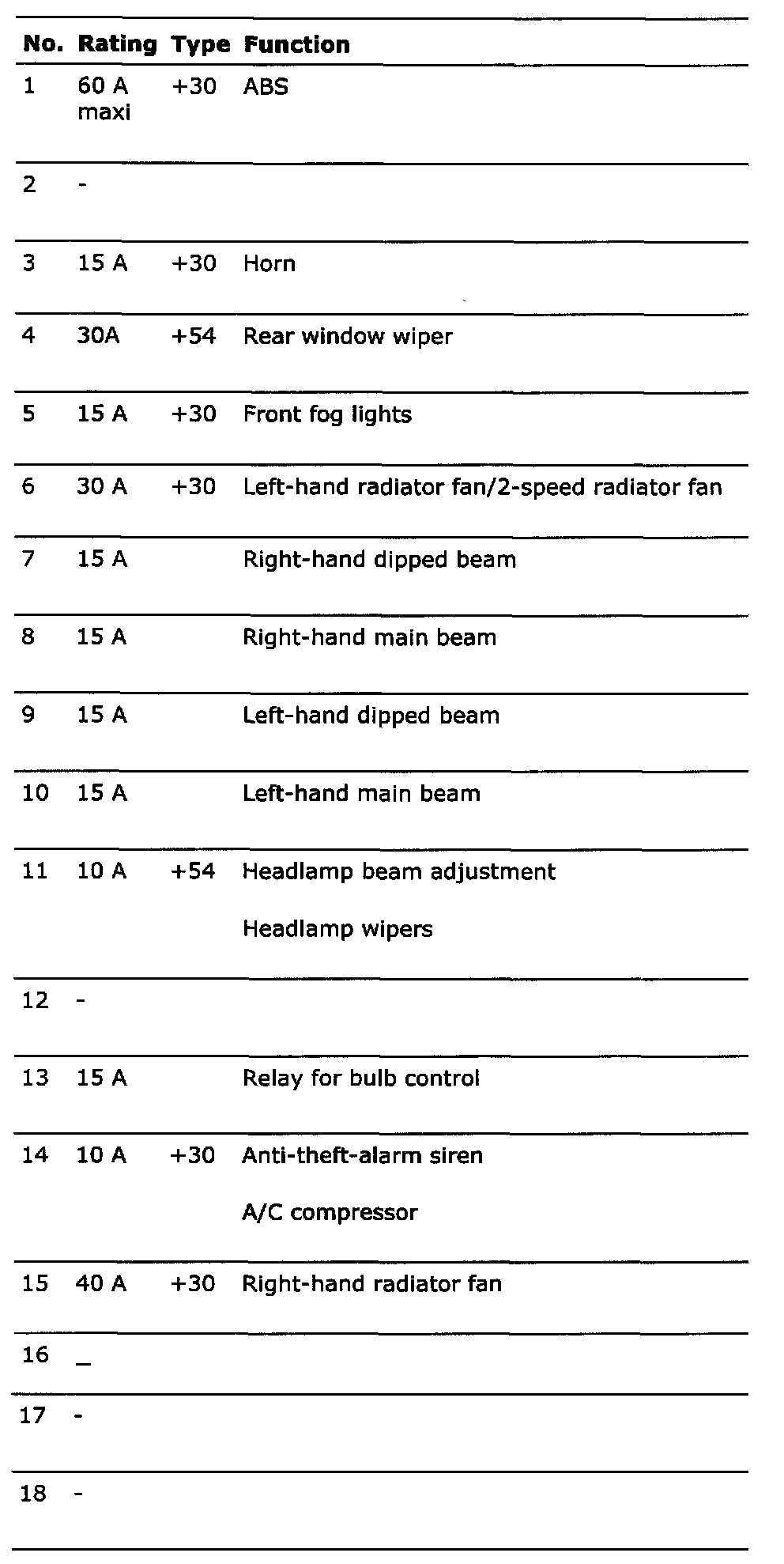

Fuses 1 - 18:
