Wiring Harness, Dashboard




Wiring Harness, Dashboard

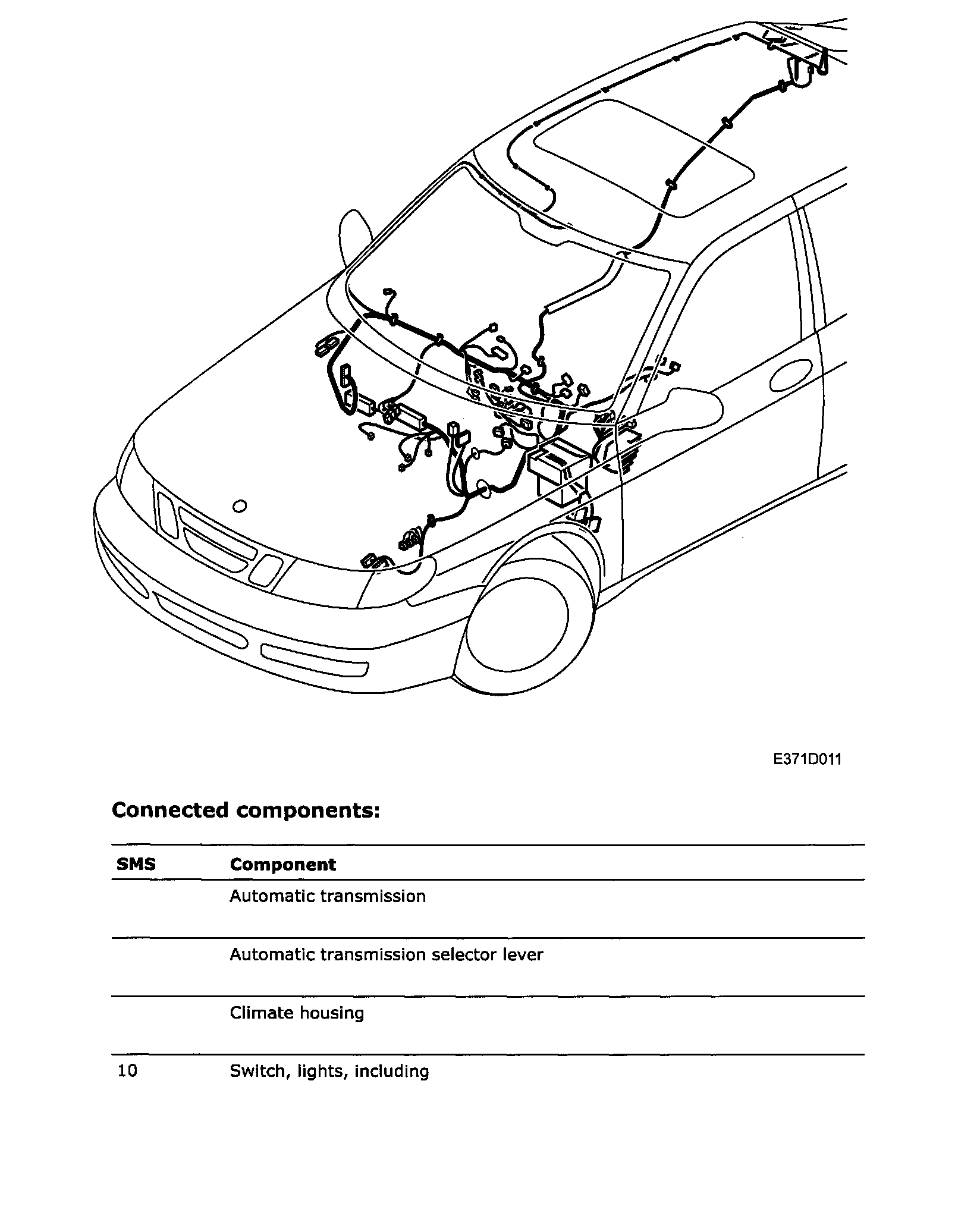

rO�*Diagram:

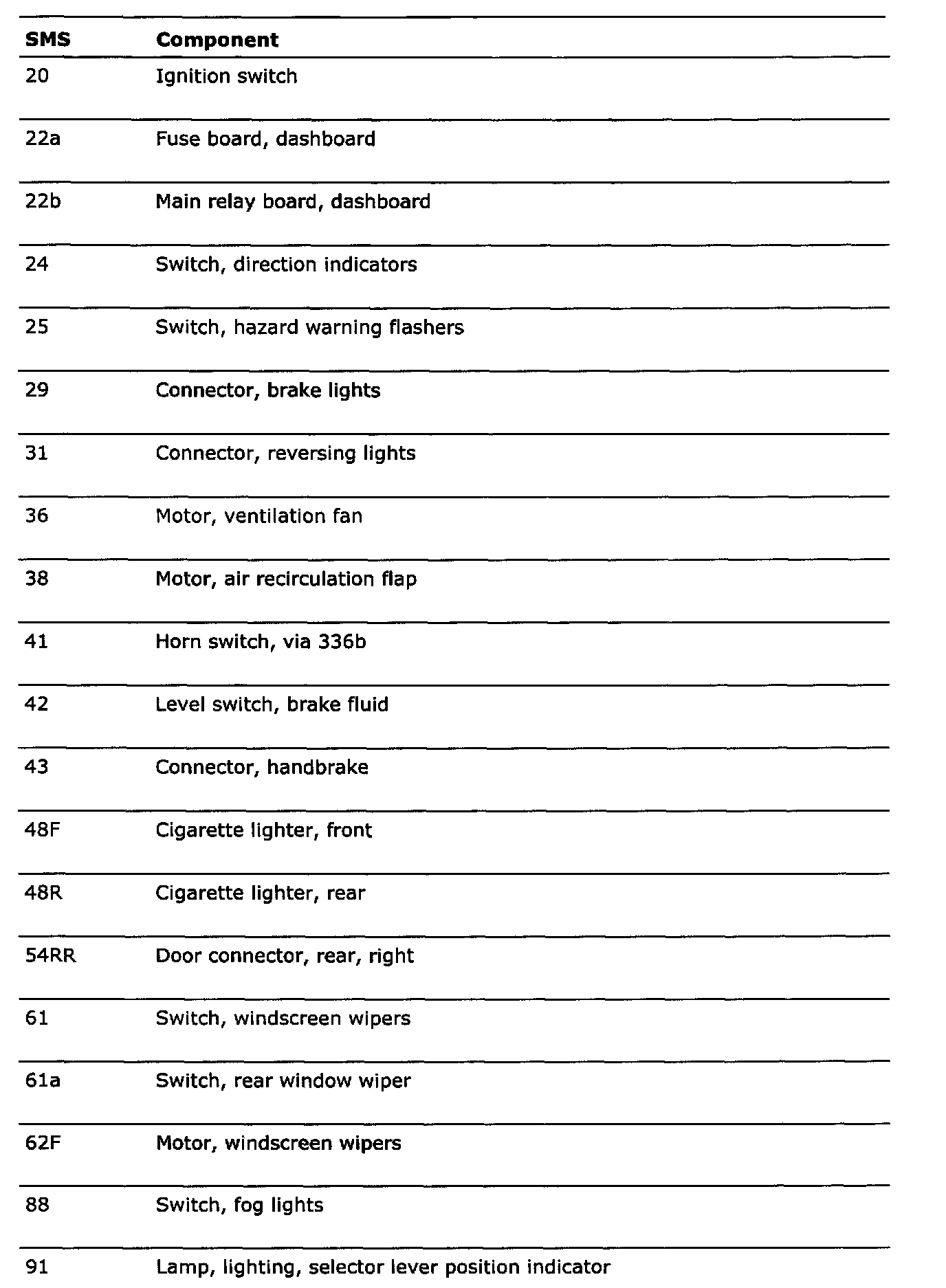

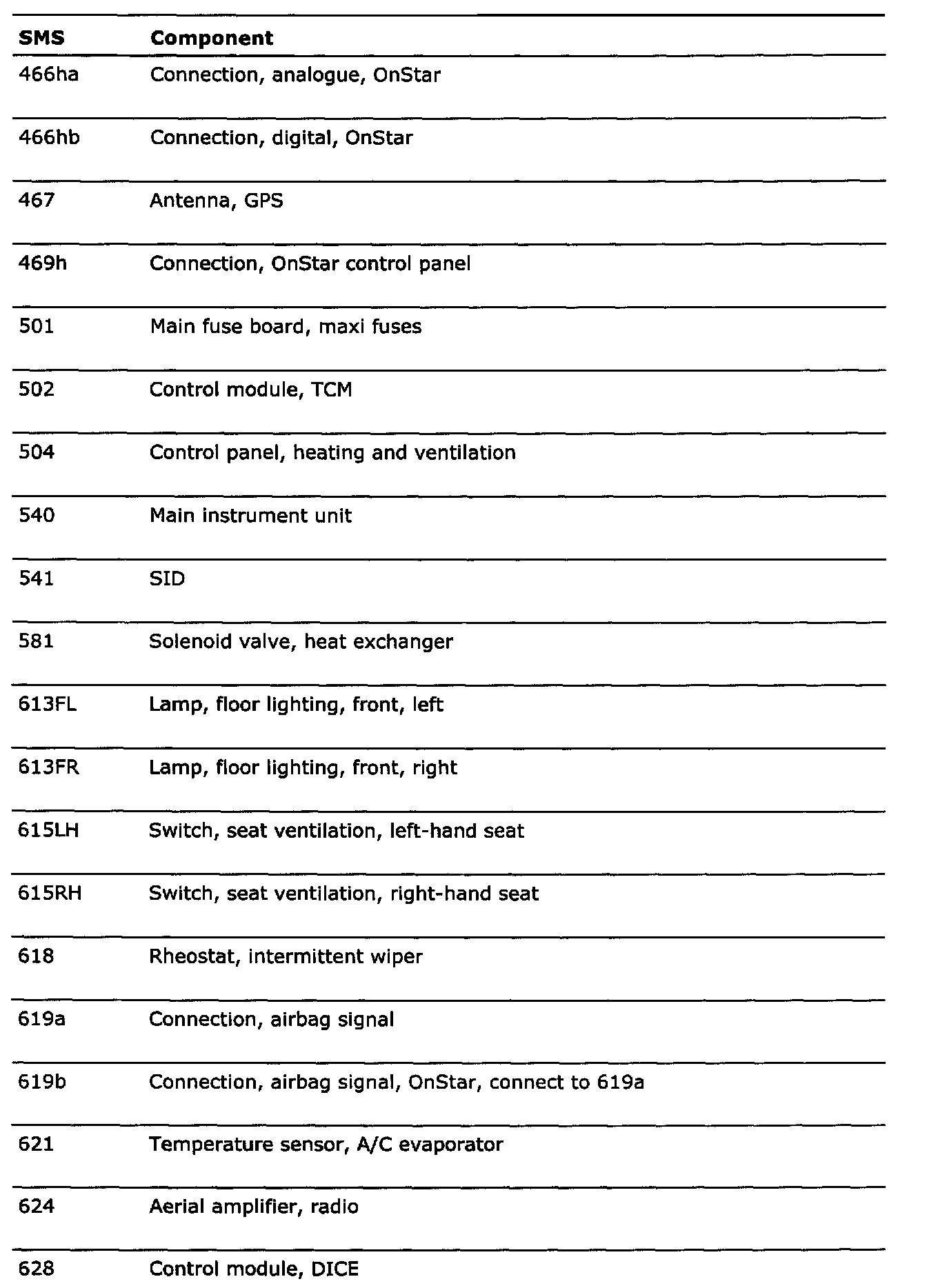

List 1:






List 2:






List 3:






List 4:






List 5:
