Grounding Point G43




Grounding Point G43

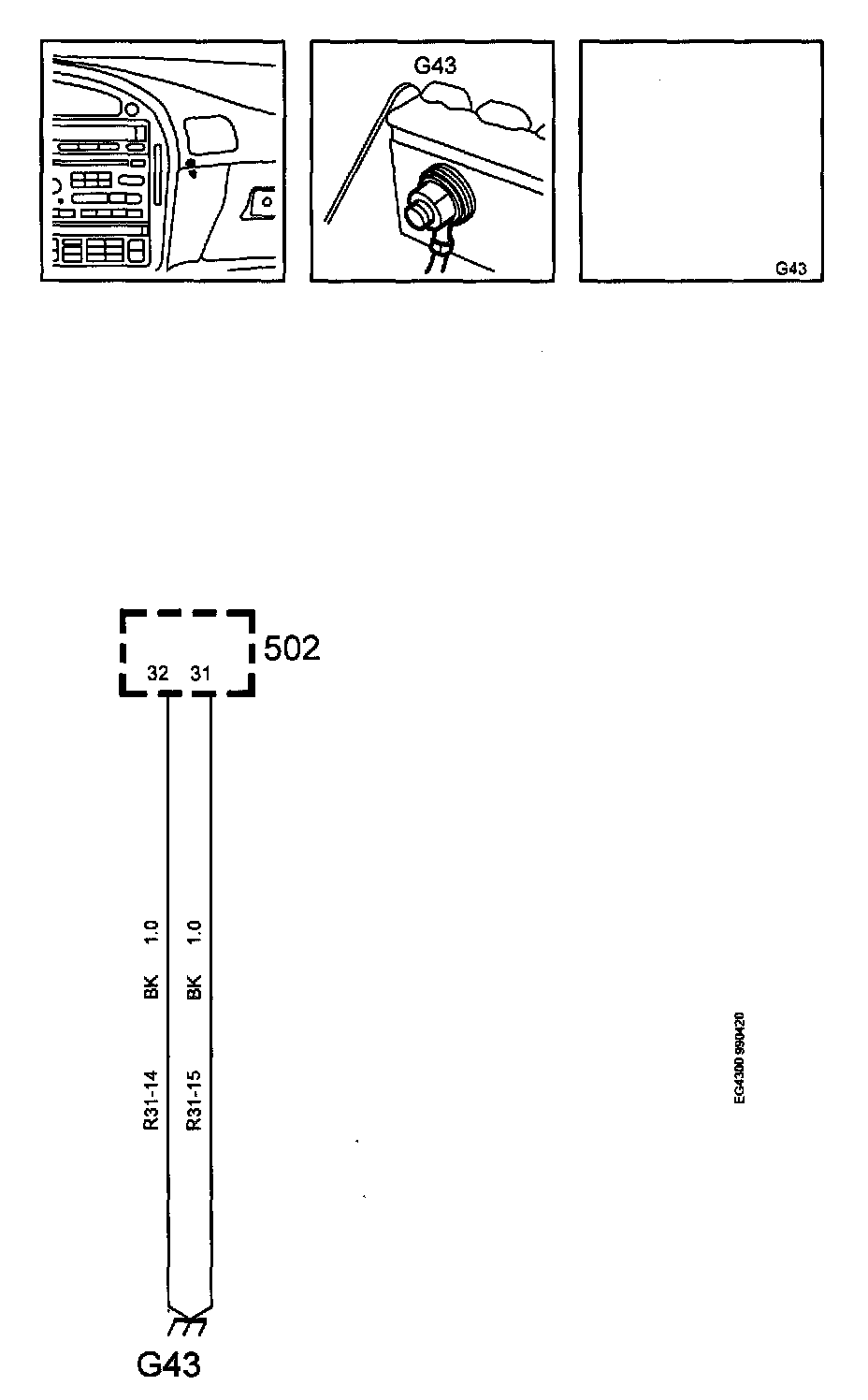

Location: On the right-hand ground screw in the middle of the knee member (in the interior).

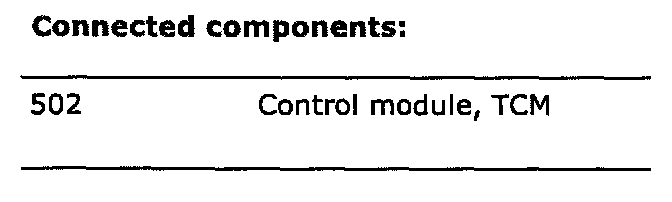

502:
