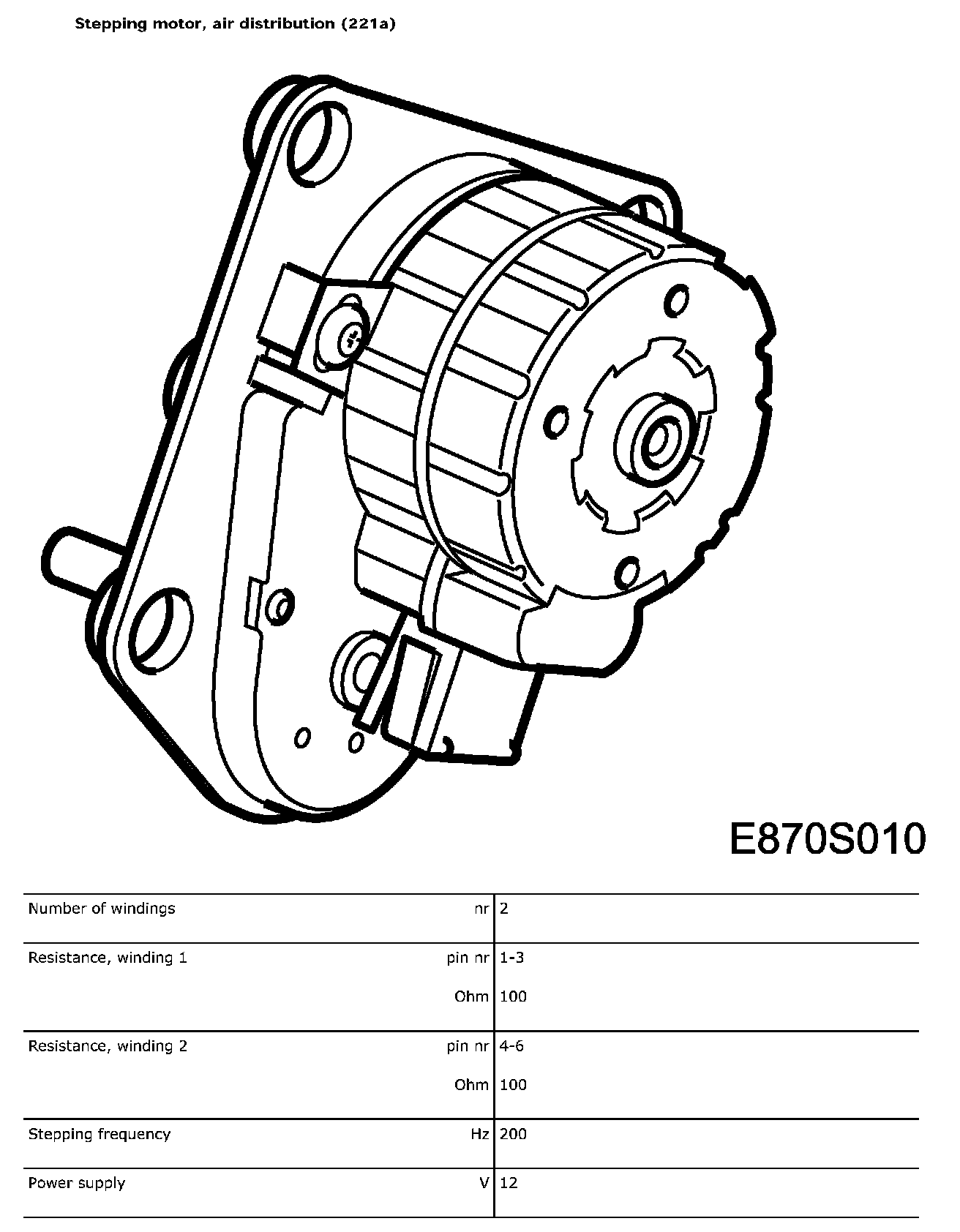

Stepping Motor, Air Distribution (221a)

Stepping Motor, Air Distribution:



Stepping Motor, Air Distribution (221a):
