Home >> Saab >> 2001 >> 9-5 Aero (9600) L4-2.3L Turbo (B235) HO >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splices >> J90, Rear Harness

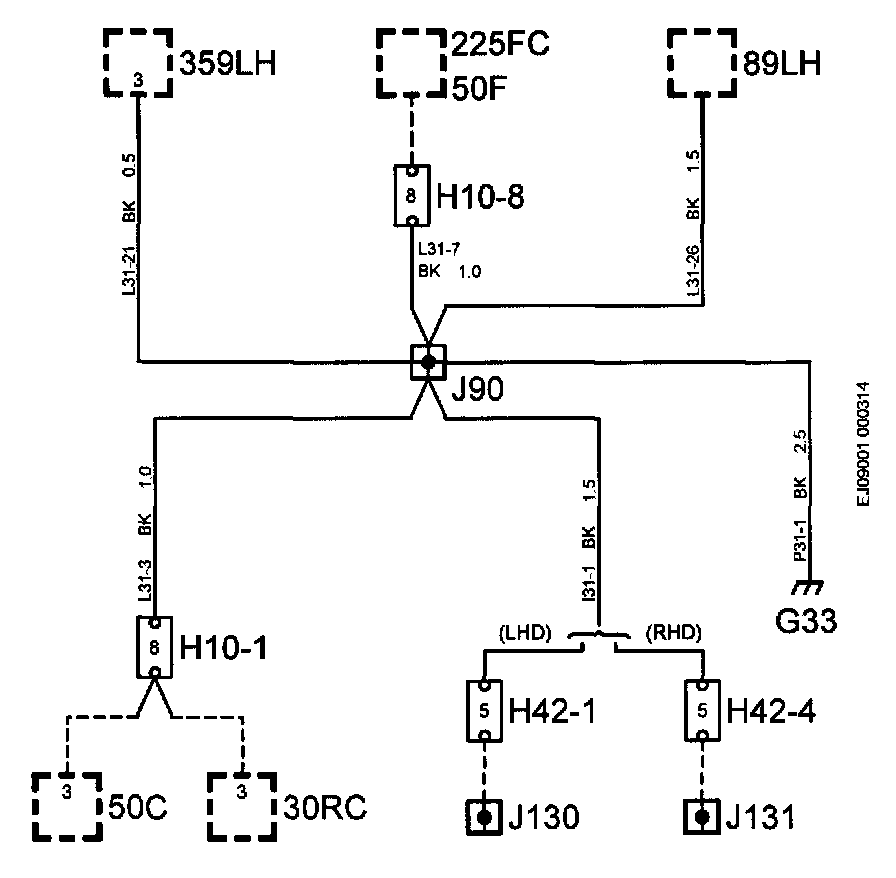

J90, Rear Harness




Crimp Connection J90, Rear Harness
