Wiper Relay: Locations




Relay Board 342b In Engine Bay

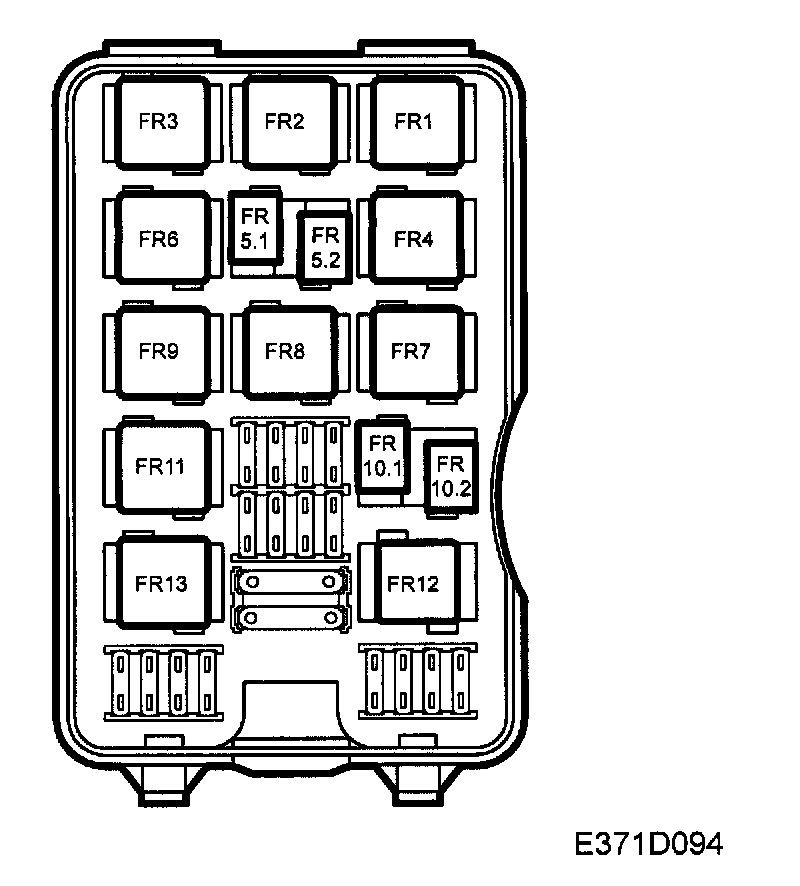

Panel Layout:

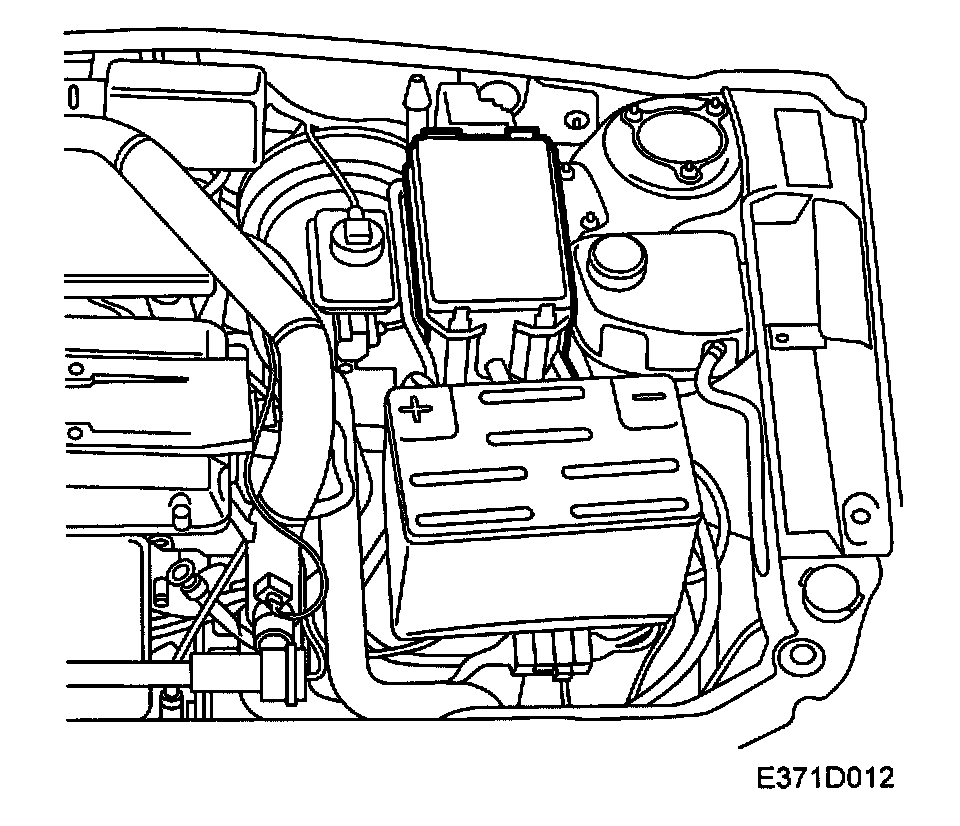

Panel Location:




Behind battery

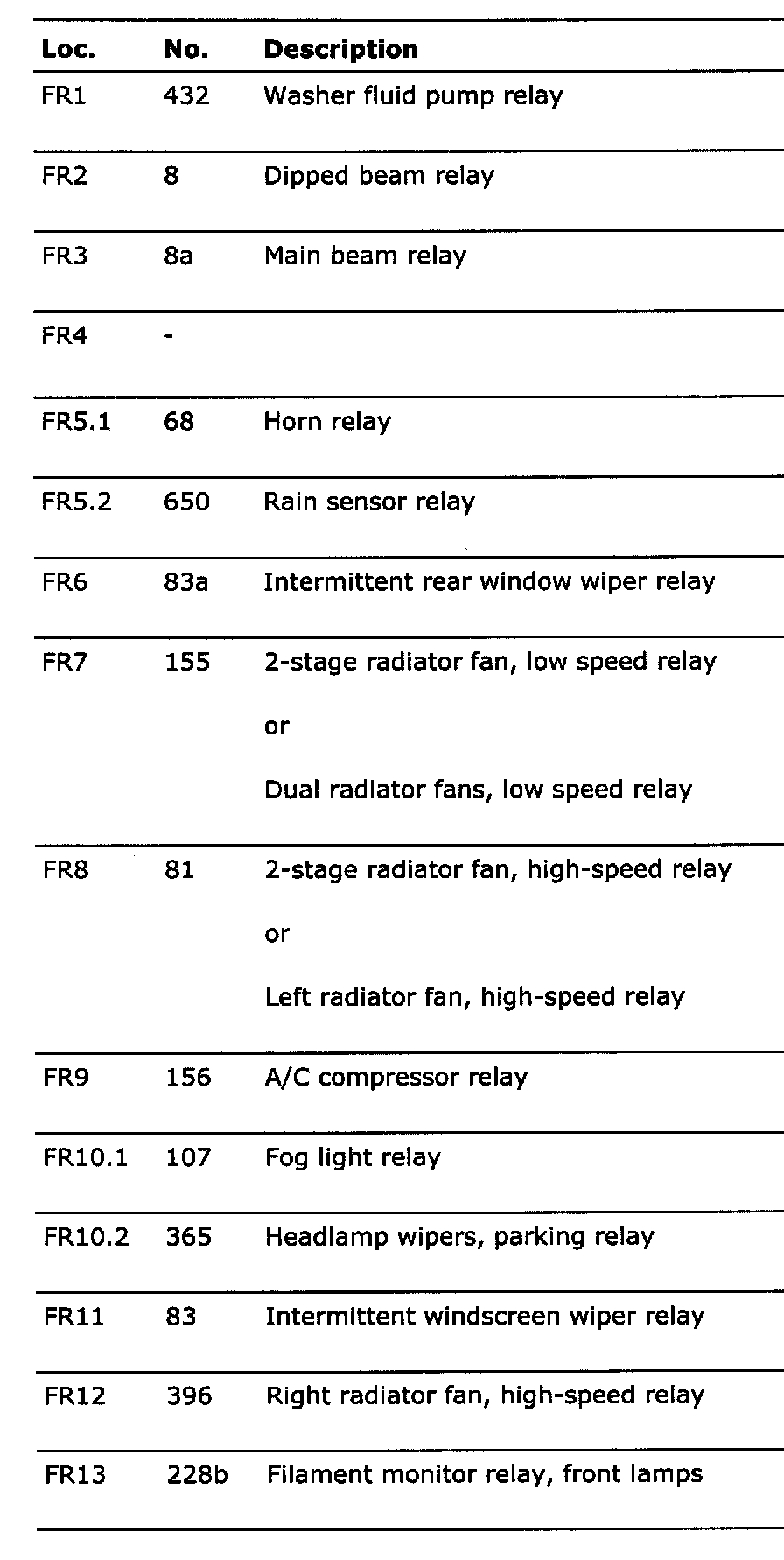

Relay Designation:
