Radiator Fan, Two Fans




Radiator Fan, Two Fans

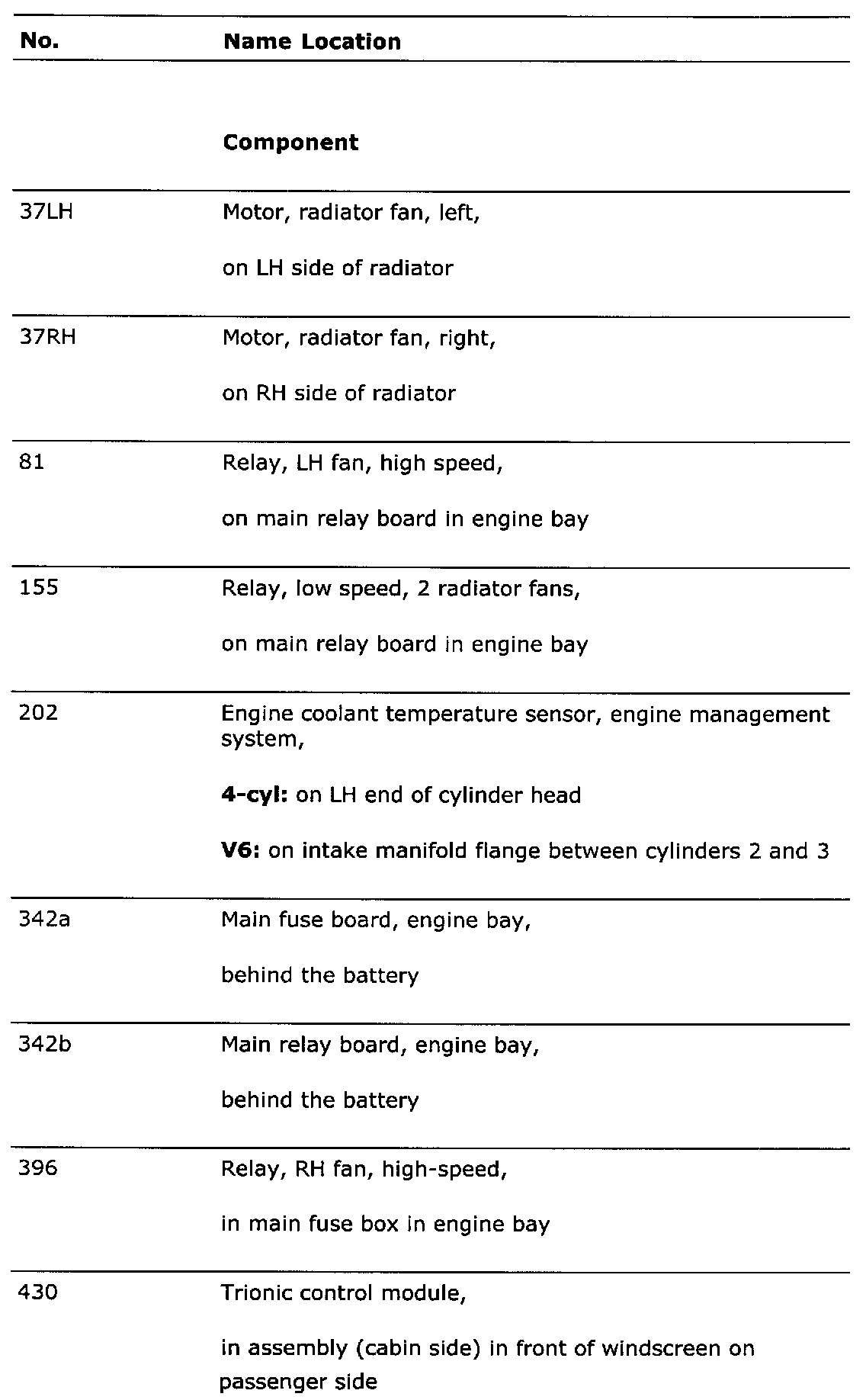

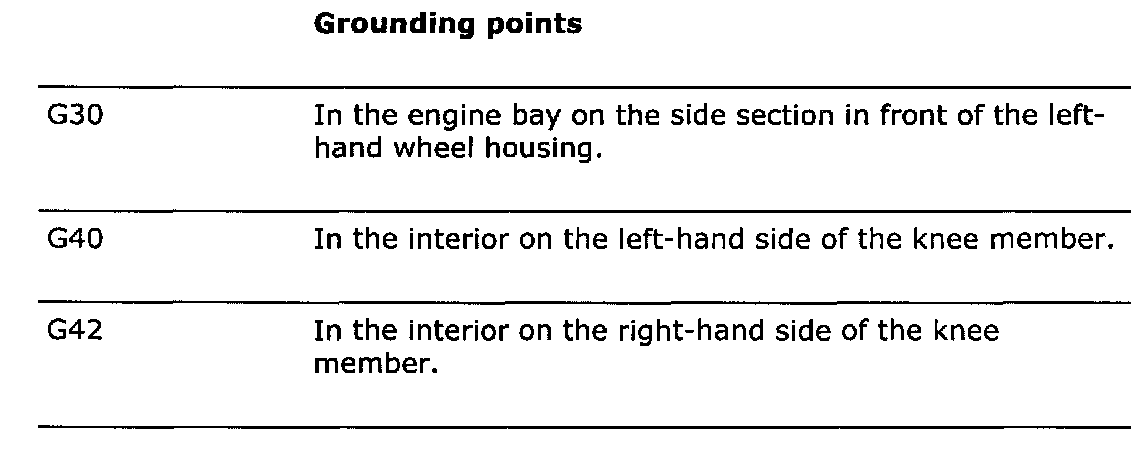

List of components


Part 1:






Part 2:






Part 3:
