Automatic Transmission/Transaxle

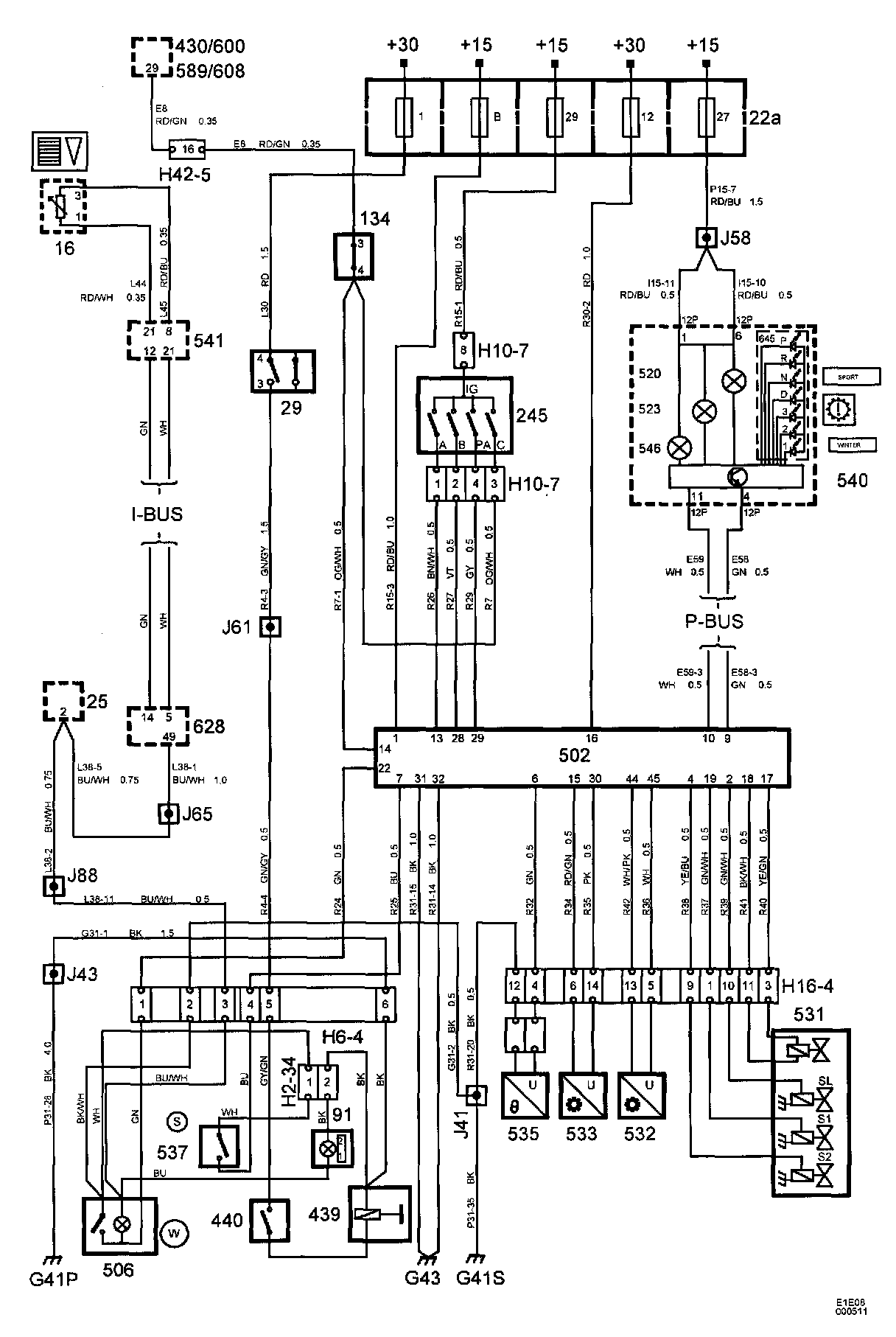

Automatic Transmission Control System (TCM)

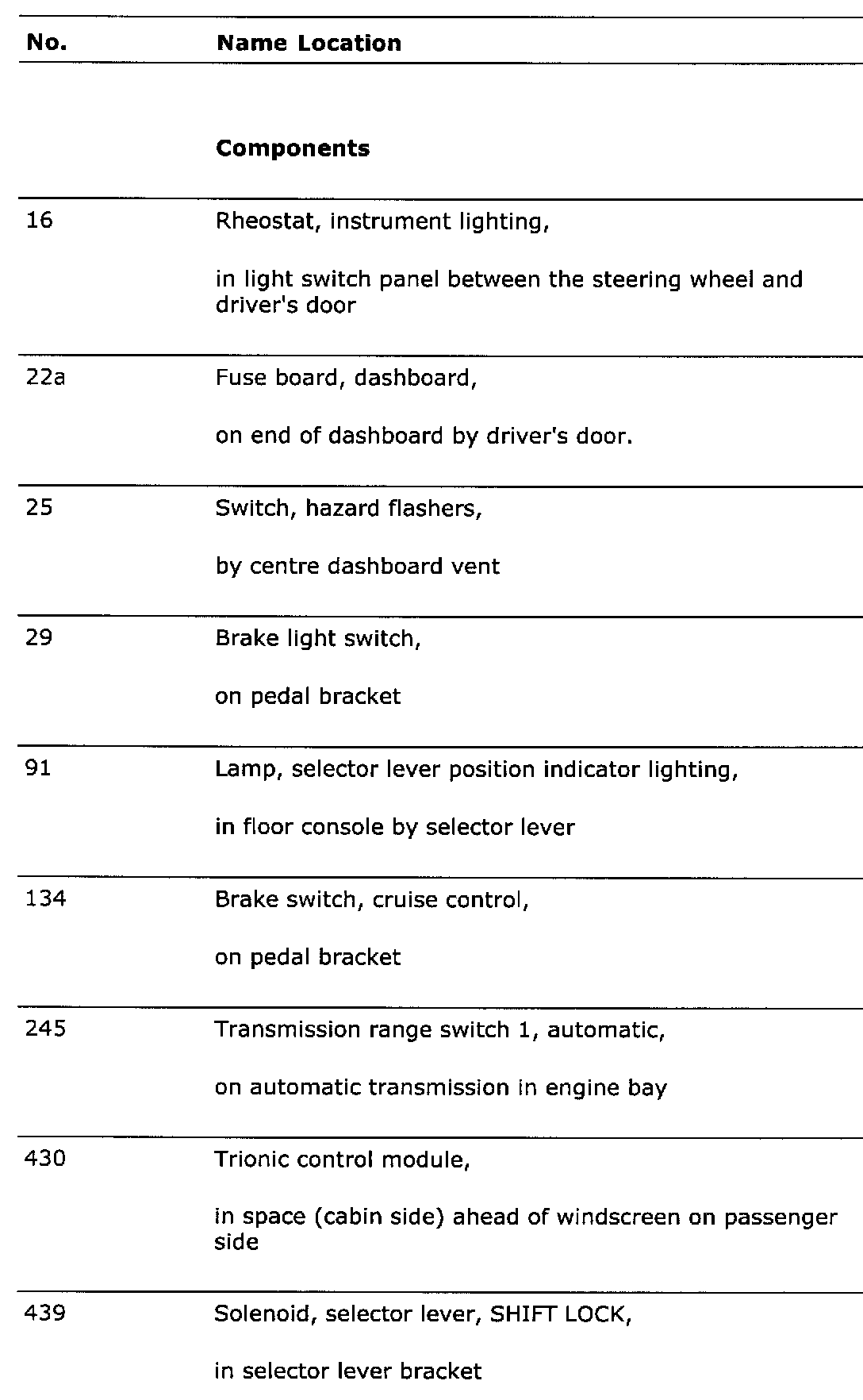

List of components


Part 1:






Part 2:






Part 3:






Part 4:
