Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2001
>>
9-5 SE Wagon (9600) V6-3.0L Turbo (B308)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System

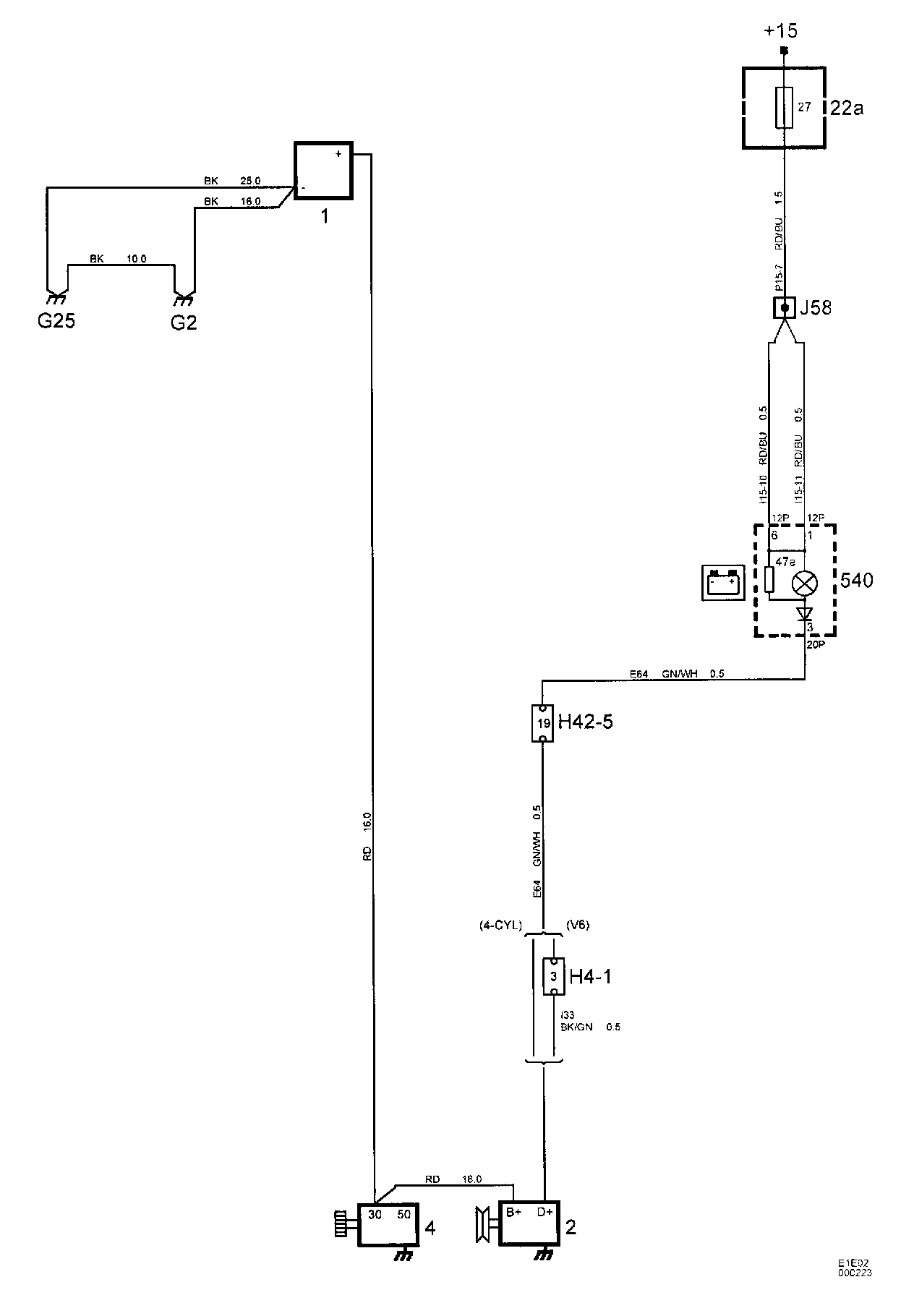

Charging System
Charging Systems

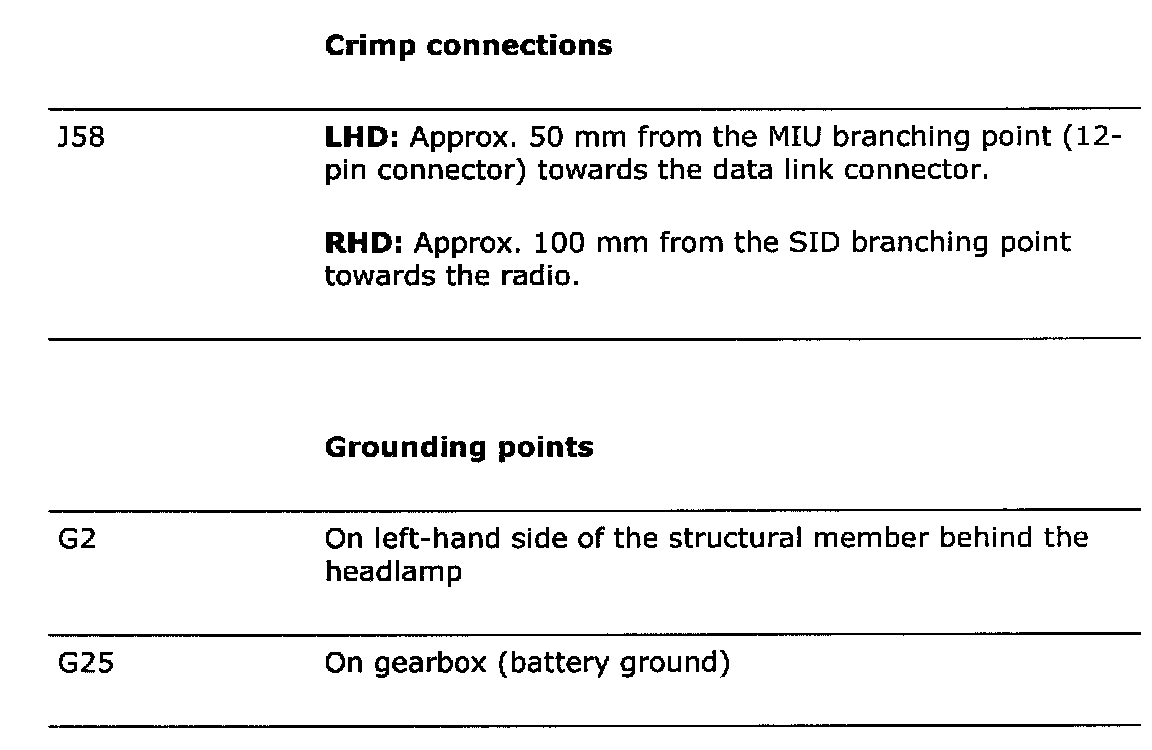

List of components
Part 1:
Part 2:
