Electrically Adjustable Driver's Seat With Memory (PSM), LHD

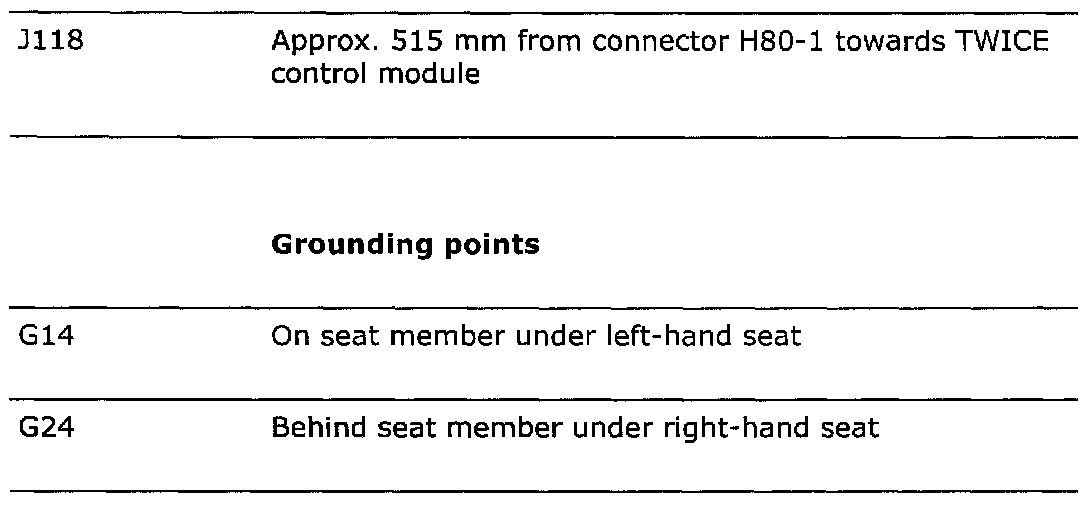

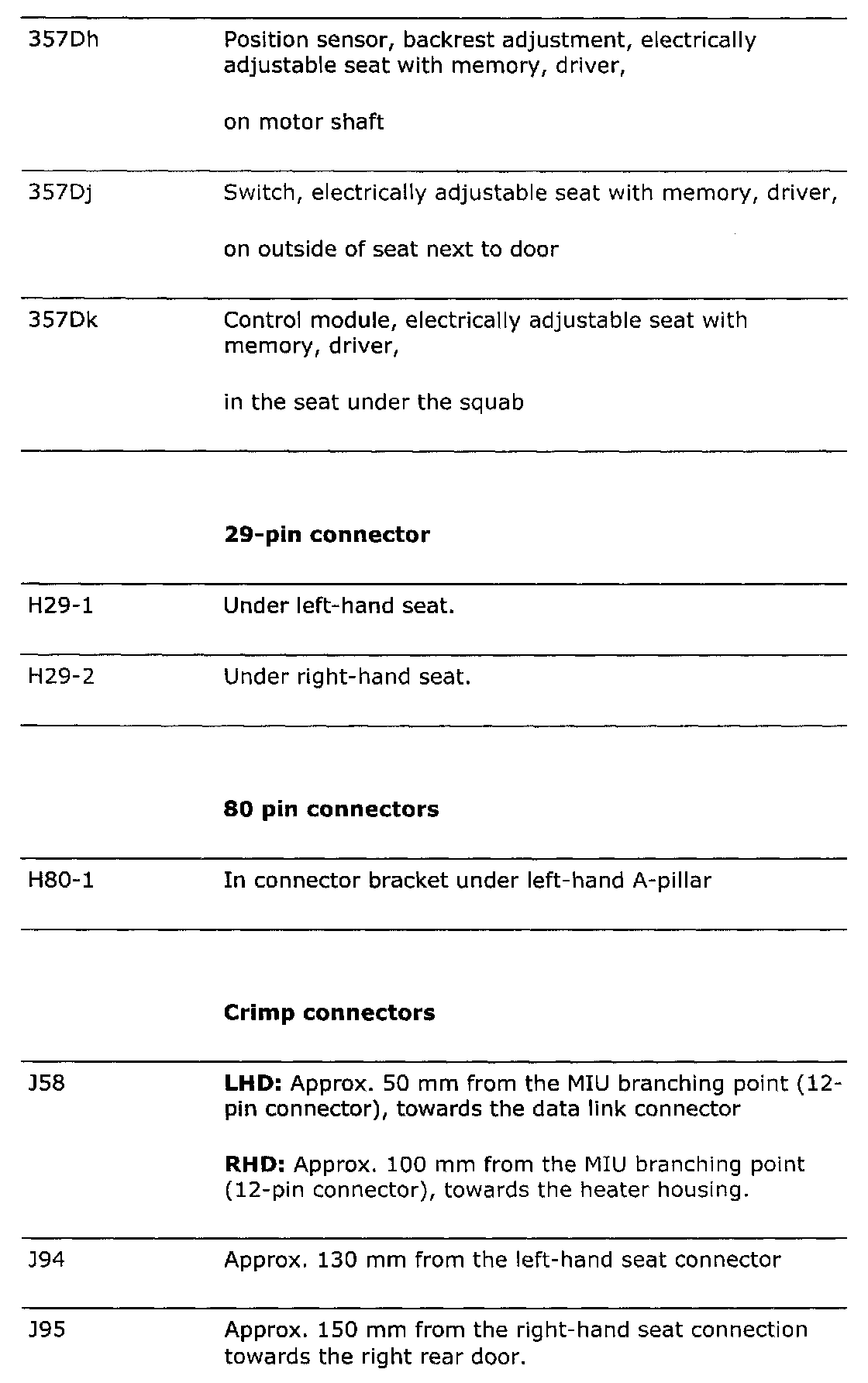

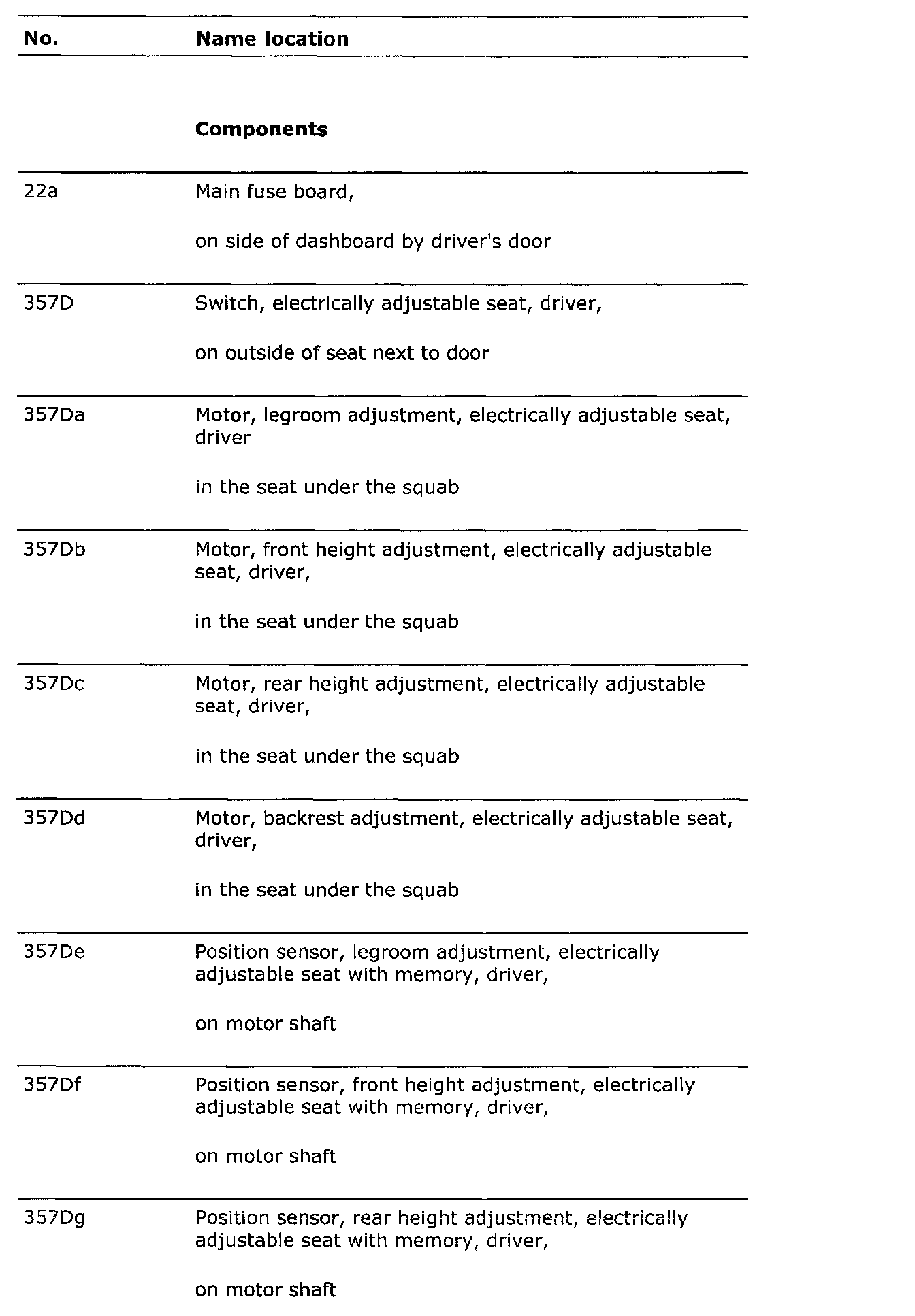

List Of Components
Part 1:
Part 2:
Part 3:
