Trunk / Liftgate

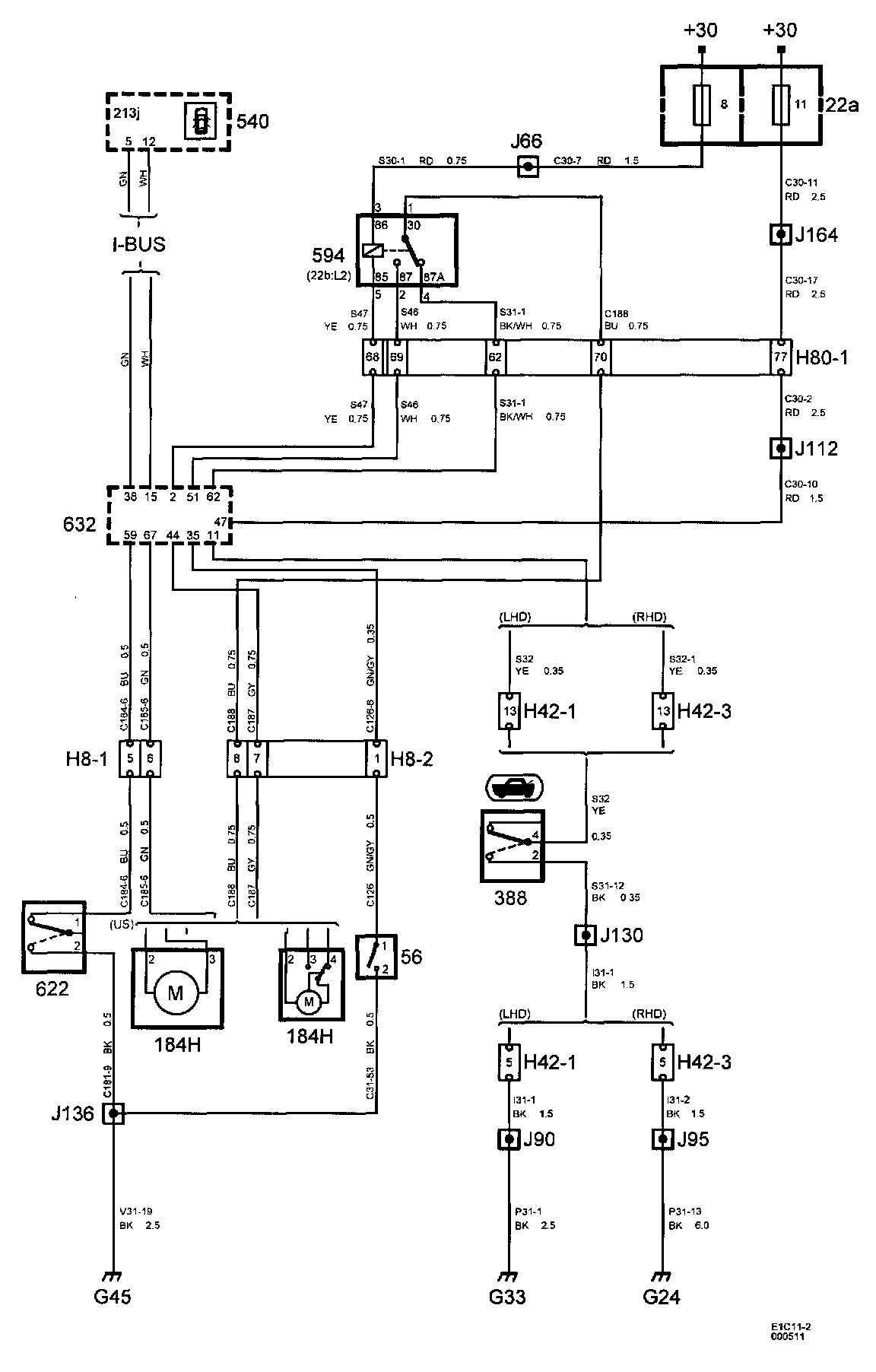

Electrical Opening Of Tailgate Lock, 5D

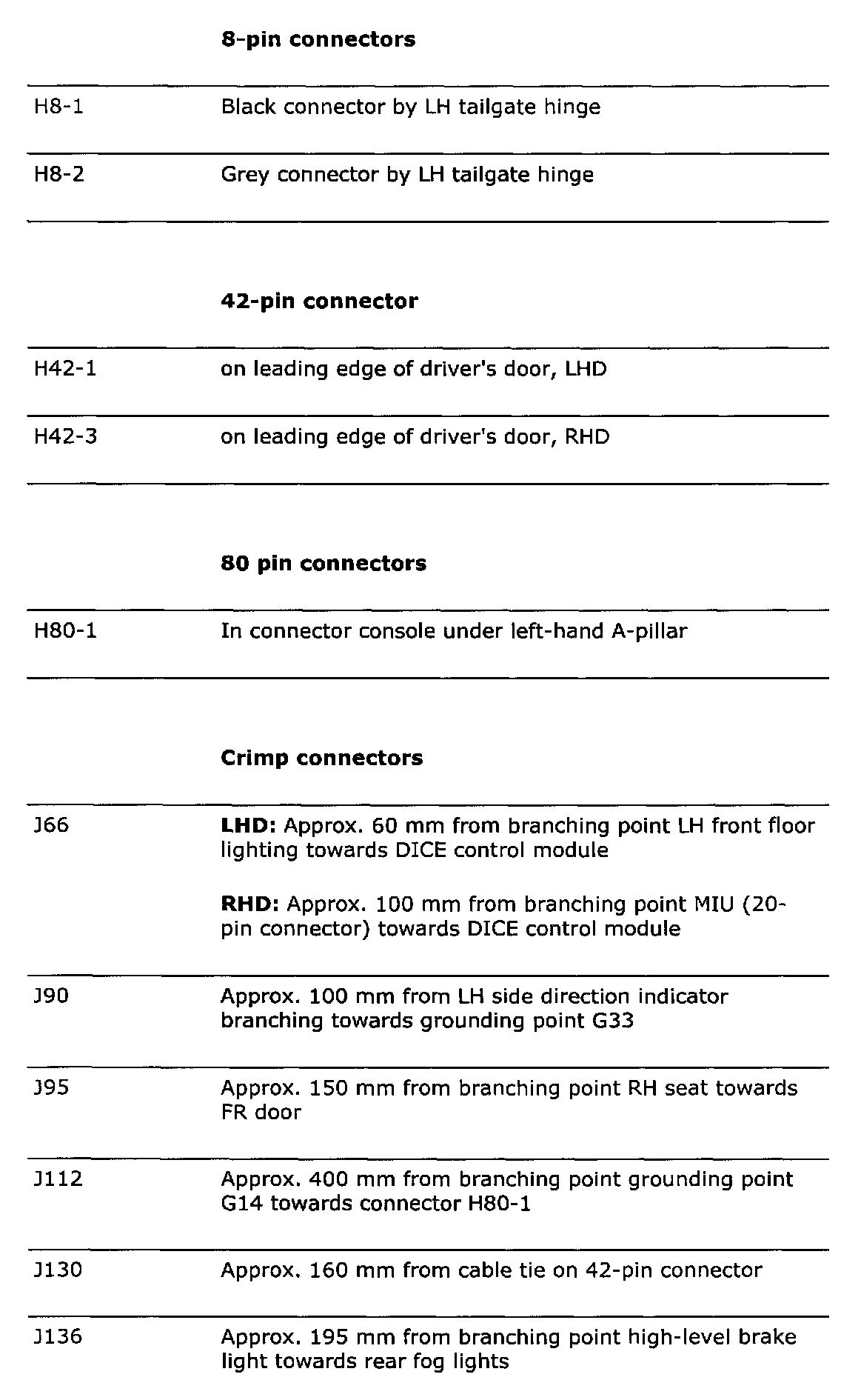

List of components


Part 1:






Part 2:






Part 3:
