Home >> Saab >> 2001 >> 9-5 SE Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Cooling System

Cooling System

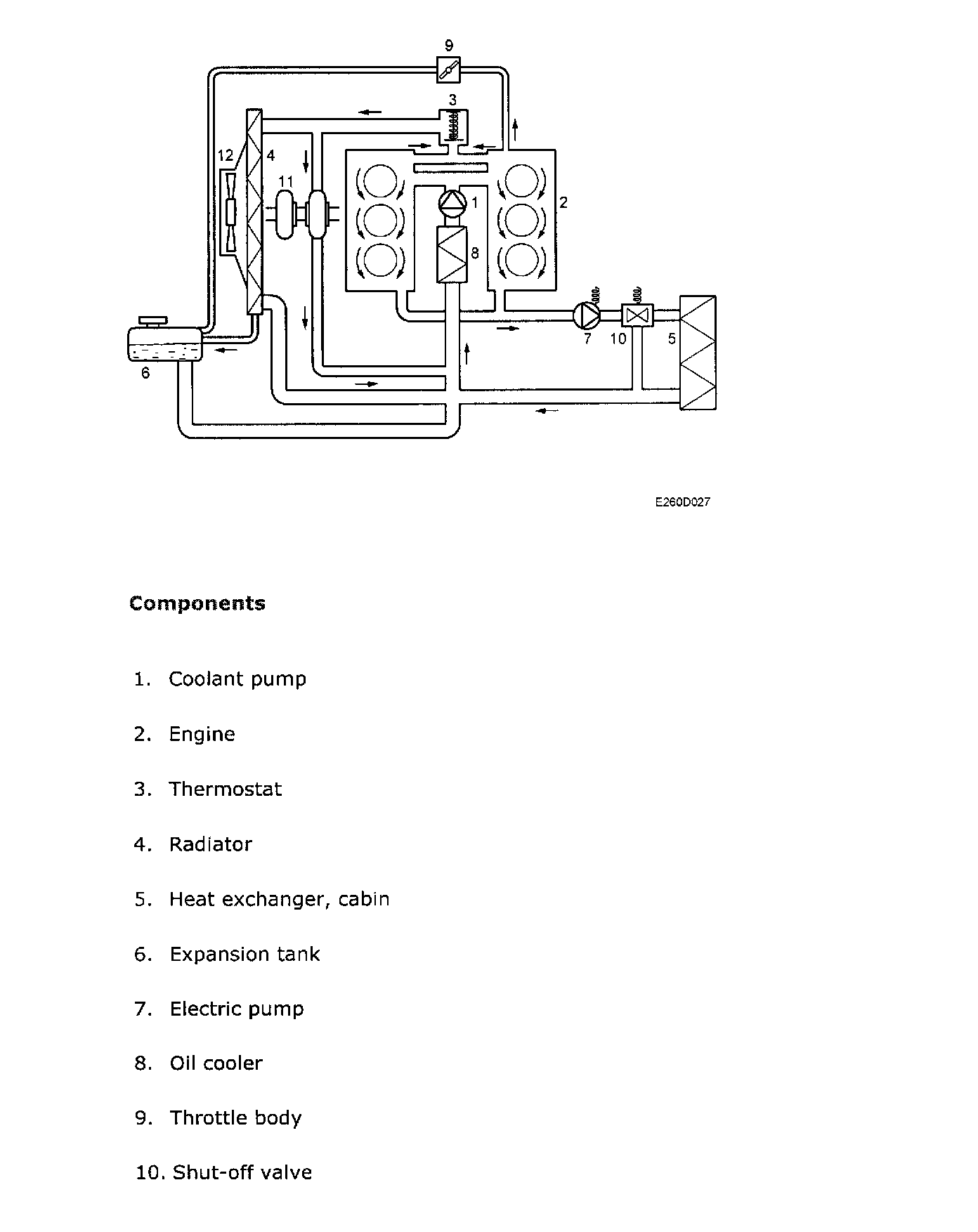

Cooling System Diagram


Part 1 Of 2:




Part 2 Of 2:
