Grounding Point G30

Grounding Point G30

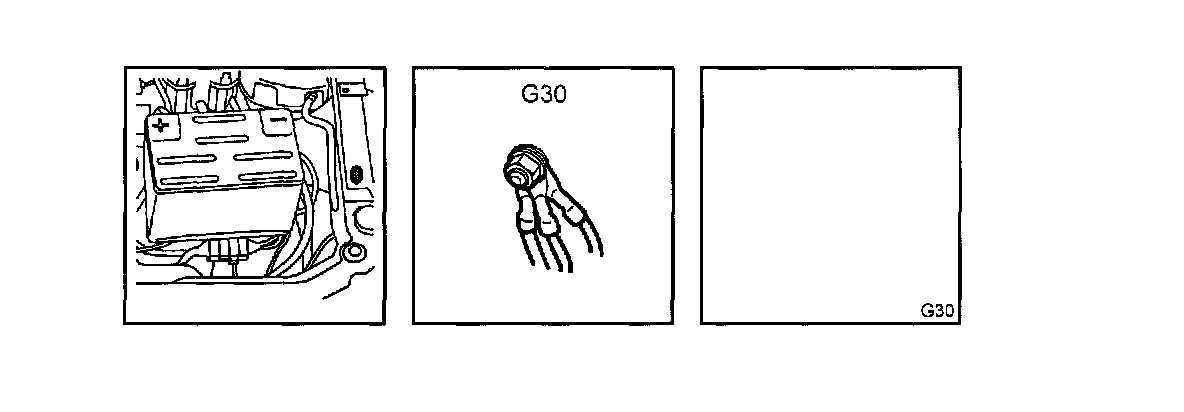

Component Illustration:

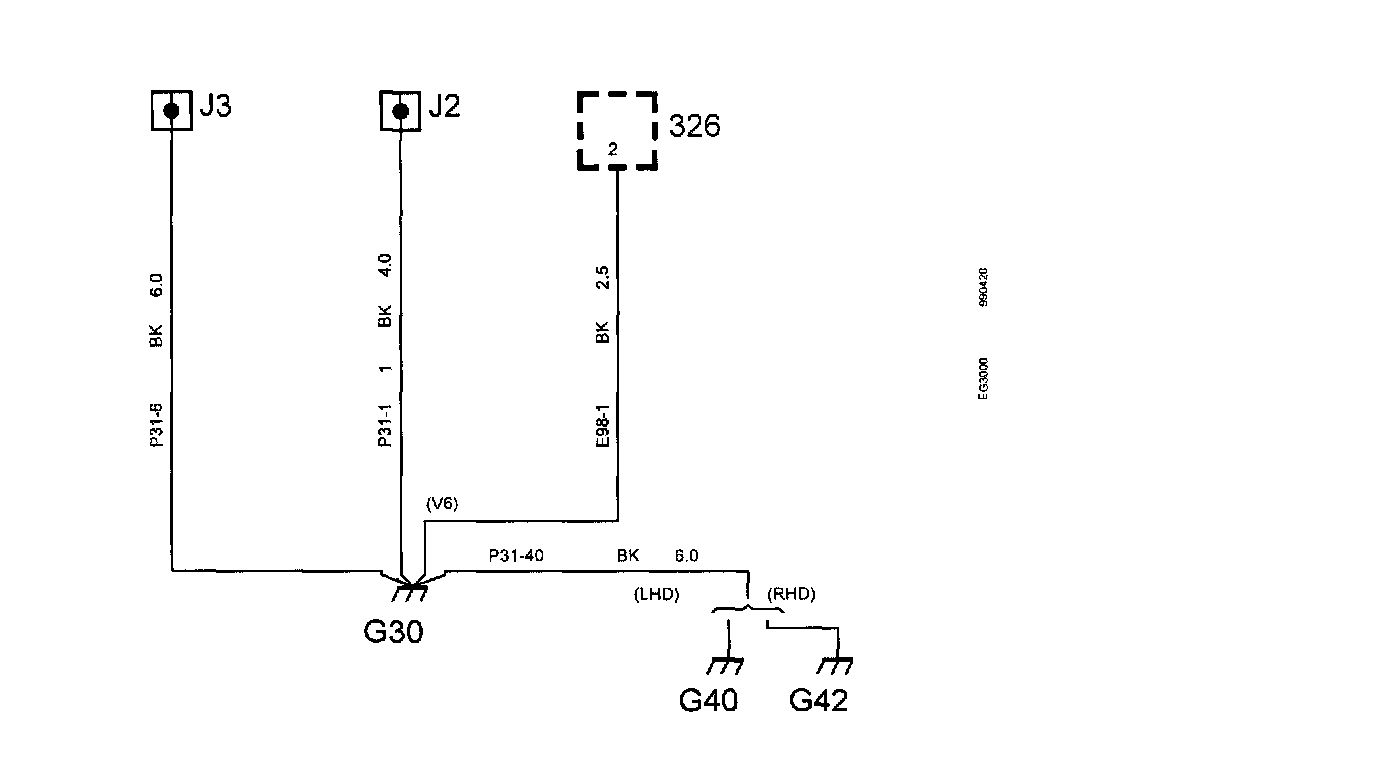

Circuit Diagram:

Location:
In the engine bay on the side panel in front of the left-hand wheel housing

Connected Components
G40 Grounding point in cabin on left-hand side of knee protection bar (LHD)
G42 Grounding point in cabin on right-hand side of knee protection bar (RHD)
326 Secondary air injection pump motor

Via Crimp 32
63a Headlamp washer-fluid pump motor
66FL Headlamp wiper motor, LH
119FL Side reversing light, LH
275 Anti-theft alarm siren
280FL Headlamp beam adjustment motor, LH
382 TC/ABS control module
432 Washer fluid pump relay
547 Control module, ABS

Via Crimp 33
11FL Main beam bulb, LH
12FL Dipped beam bulb, LH
13FL Front parking light bulb, LH
27FL Front direction indicator bulb, LH
37LH Left radiator fan motor (via relay 81)
37RH Right radiator fan motor
40LH Horn, LH
40RH Horn, RH
63b Windscreen washer fluid pump motor
195 Washer fluid level switch
228b Filament monitor relay
234FL Side marker light bulb, LH
367 2-stage radiator fan resistor

Via Crimp 3137, Which Is In Turn Connected To Crimp 32
85FL Fog light lamp, LH
85FR Fog light lamp, LH
