Grounding Point G40


Grounding Point G40

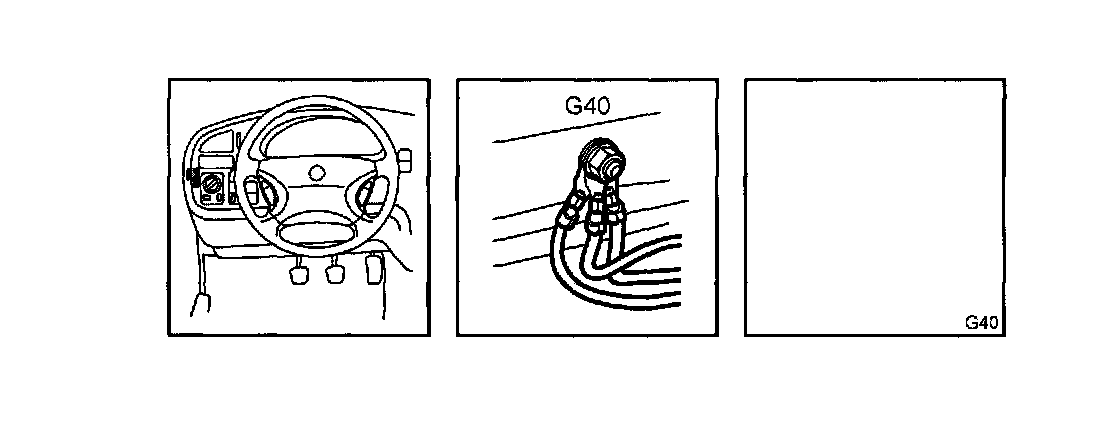

Component Illustration:




Circuit Diagram:





Location:
In passenger compartment on left-hand side of knee member.

A. Connected Components In LHD Car
G30 Grounding point in engine bay on side panel in front of LH wheel housing

Via Crimp J42
10 Switch, lights
21 Relay, ignition switch
42 Level switch, brake fluid
242 Level switch, coolant
628 Control module, DICE

Via Crimp J48
62F Motor, windscreen wipers
88 Switch, fog lights
276 Bonnet switch, anti-theft alarm
282 Switch, headlamp beam length adjustment
405 Relay, reversing lights, automatic
453 Motor, coolant circulation pump

B. Connected Components In RHD Car

Via Crimp J46 -
19 Lamp, glove box lighting
353 Main unit, audio system
354 Amplifier, audio system
359RH Lamp, RH vanity mirror lighting
613FL Lamp, LH front floor lighting
613FR Lamp, RH front floor lighting
637 Control module, ADM
649 Rain sensor
