Main Components, Heated Rear Window and Door Mirrors

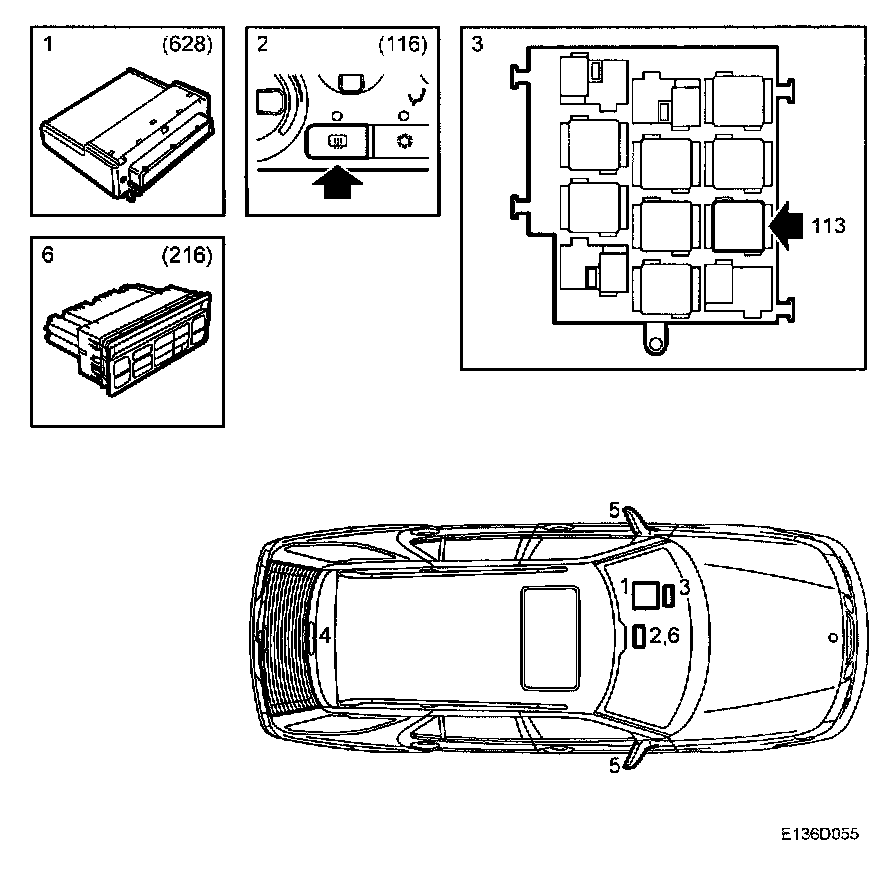

Main components, electrically heated rear window and door mirrors (5D)







1. Control module, DICE (628)
2. Electrically heated rear window, switch (116)
3. Relay, electrically heated rear window (113)
4. Electrically heated rear window, element (115)
5. Electrically heated door mirrors, elements (207)
6. Control module, ACC (216)
