System Overview, Exterior Lighting

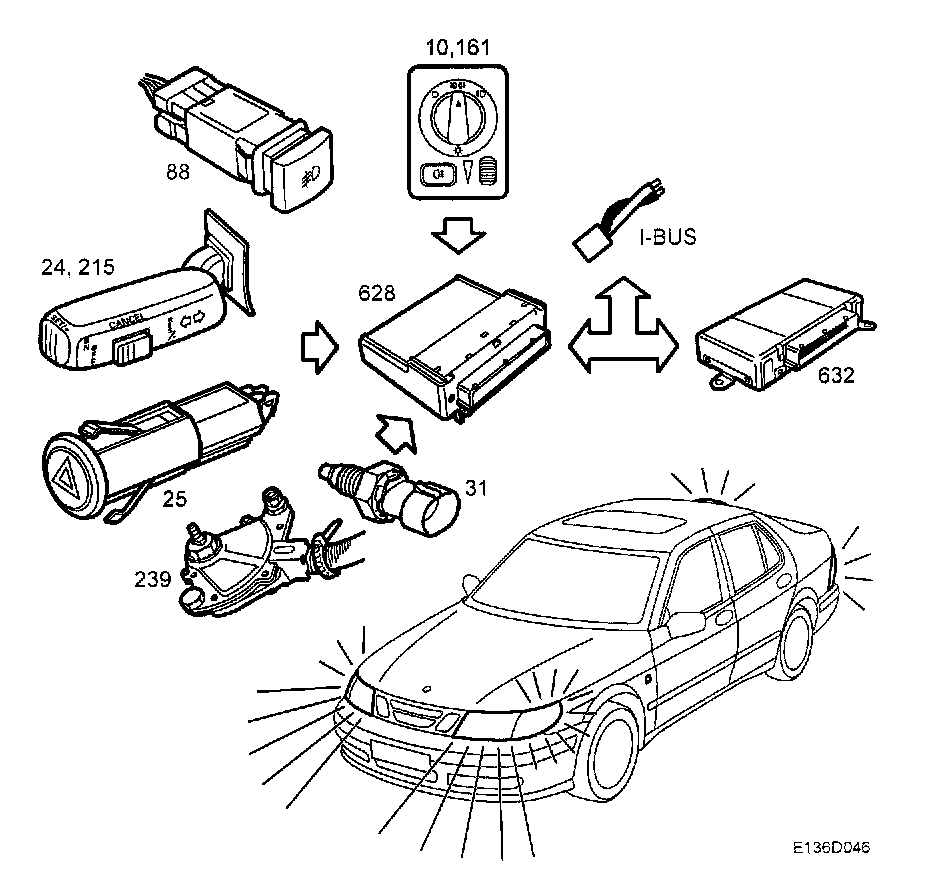

System overview, exterior lighting







- Control module, DICE (628)
- Lights, switch (10)
- Dipswitch (215)
- Front fog lights, switch (88)
- Rear fog lights, switch (161)
- Direction indicators, switch (24)
- Switch, hazard flashers (25)
- Reversing lights, switch (31)
- Selector lever position switch 2, automatic transmission (239)
- Control module, TWICE (632)

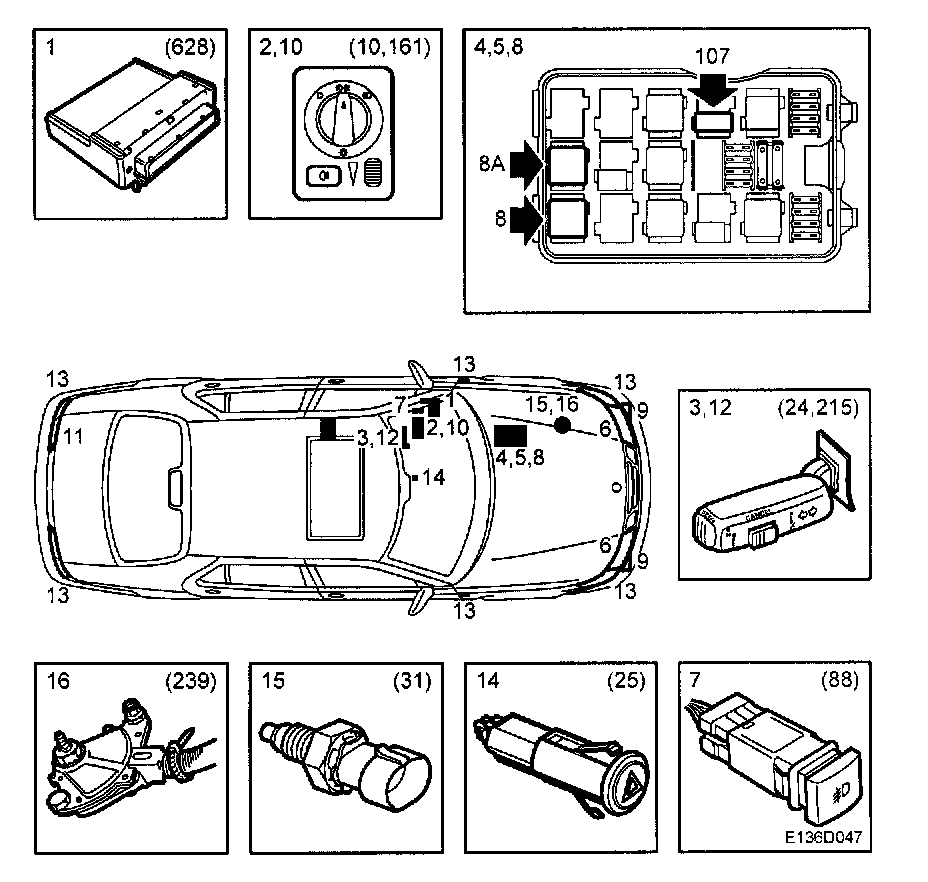

Main components, exterior lighting







1. Control module, DICE (628)
2. Lights, switch (10)
3. Dipswitch (215)
4. Headlamp relay (8)
5. Main beam relay (8A)
6. Main/dipped beam lamps (11/12)
7. Front fog lights, switch (88)
8. Fog light relay (107)
9. Front fog lamps (85)
10. Rear fog lights, switch (161)
11. Rear fog lamp (33)
12. Direction indicators, switch (24)
13. Direction indicator lamps (27)
14. Switch, hazard flashers (25)
15. Reversing lights, switch (31)
16. Selector lever position switch 2, automatic gearbox (239)
