Center Mounted Brake Lamp: Service and Repair

High-Level Brake Light 5D

To remove
1. Open the tailgate.







2. Remove the glass cover plates.
3. Unscrew the nuts securing the brake light and unplug the connector.

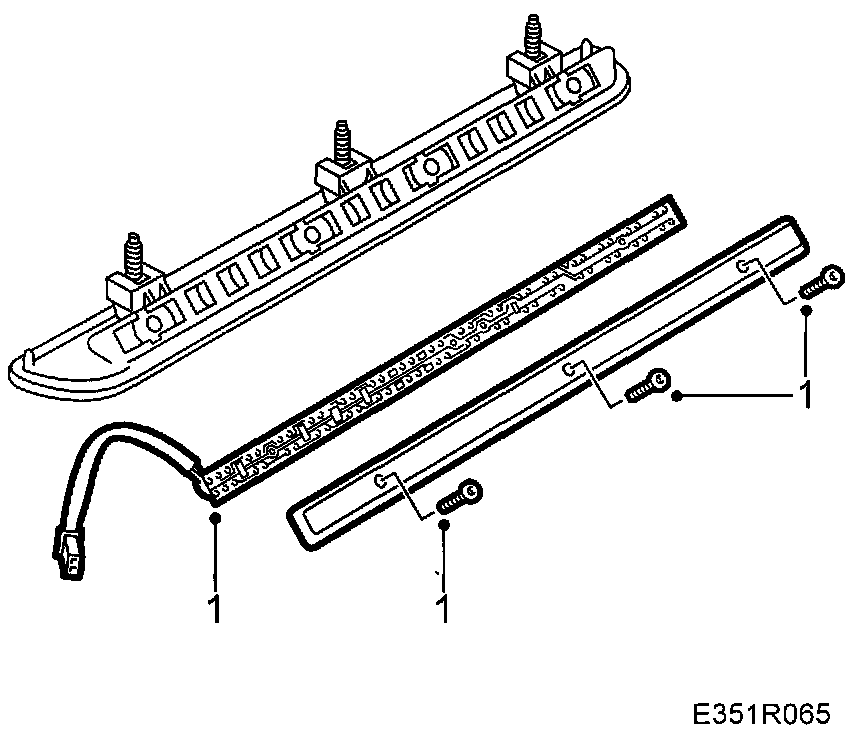

4. Unscrew the screws and remove the circuit board with LEDs.

To fit


IMPORTANT
Take care not to damage the guide pins when fitting the circuit board.







1. Screw on the circuit board.







2. Fit the brake light and tighten the nuts alternately.
3. Fit the glass cover plates.
