Anti-Lock Brakes With Traction Control TC/ABS 5.3




Anti-Lock Brakes With Traction Control TC/ABS 5.3

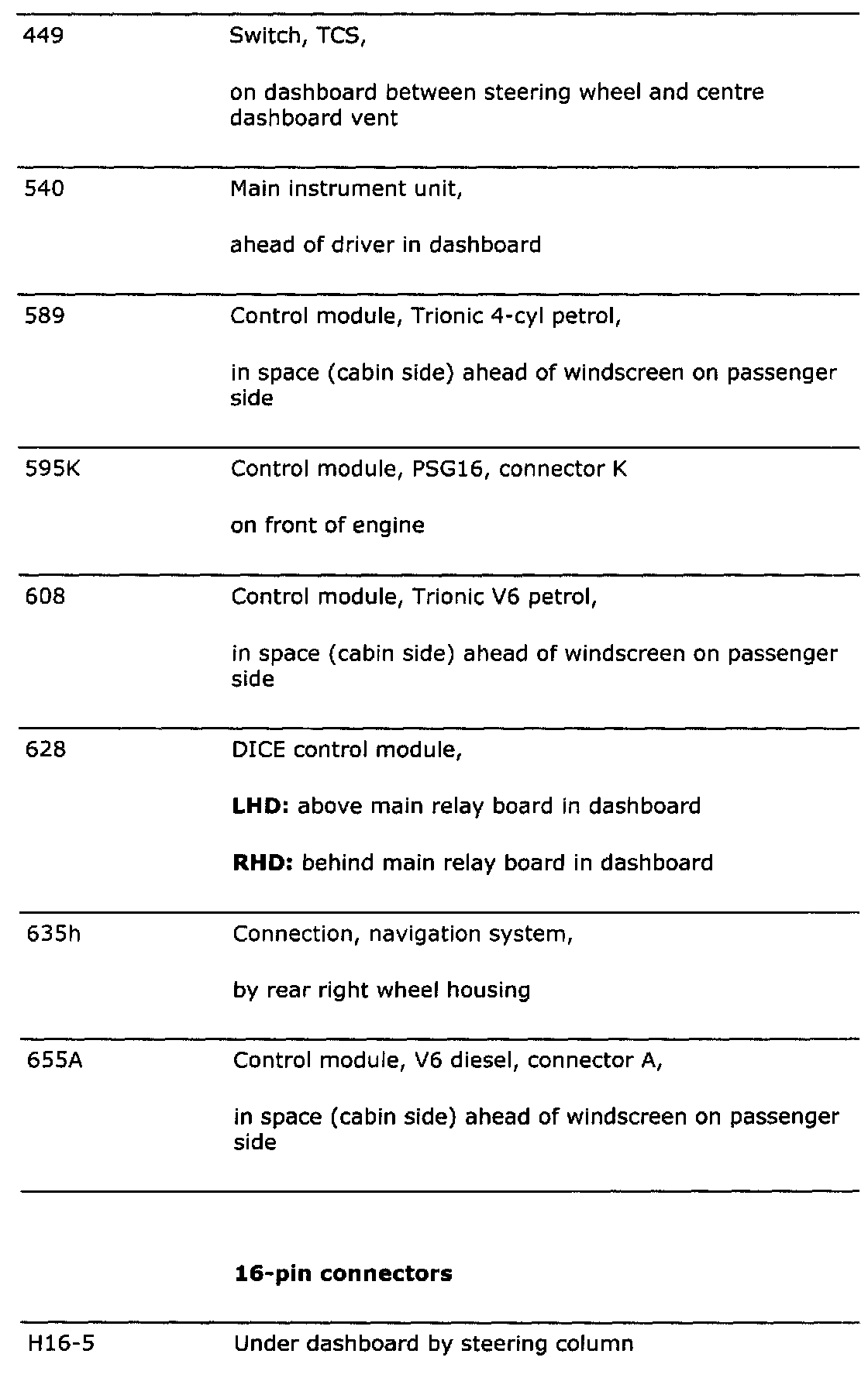

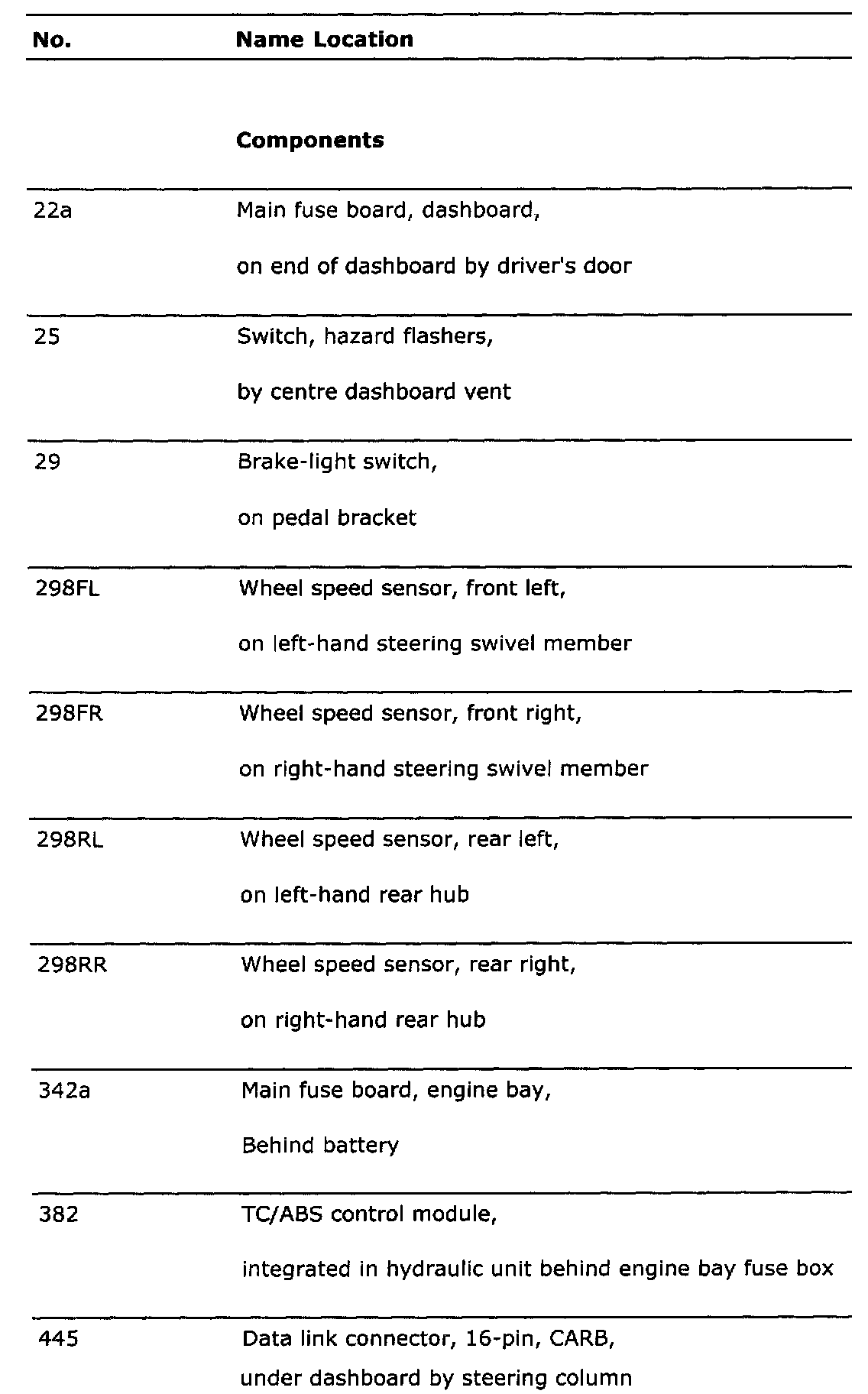

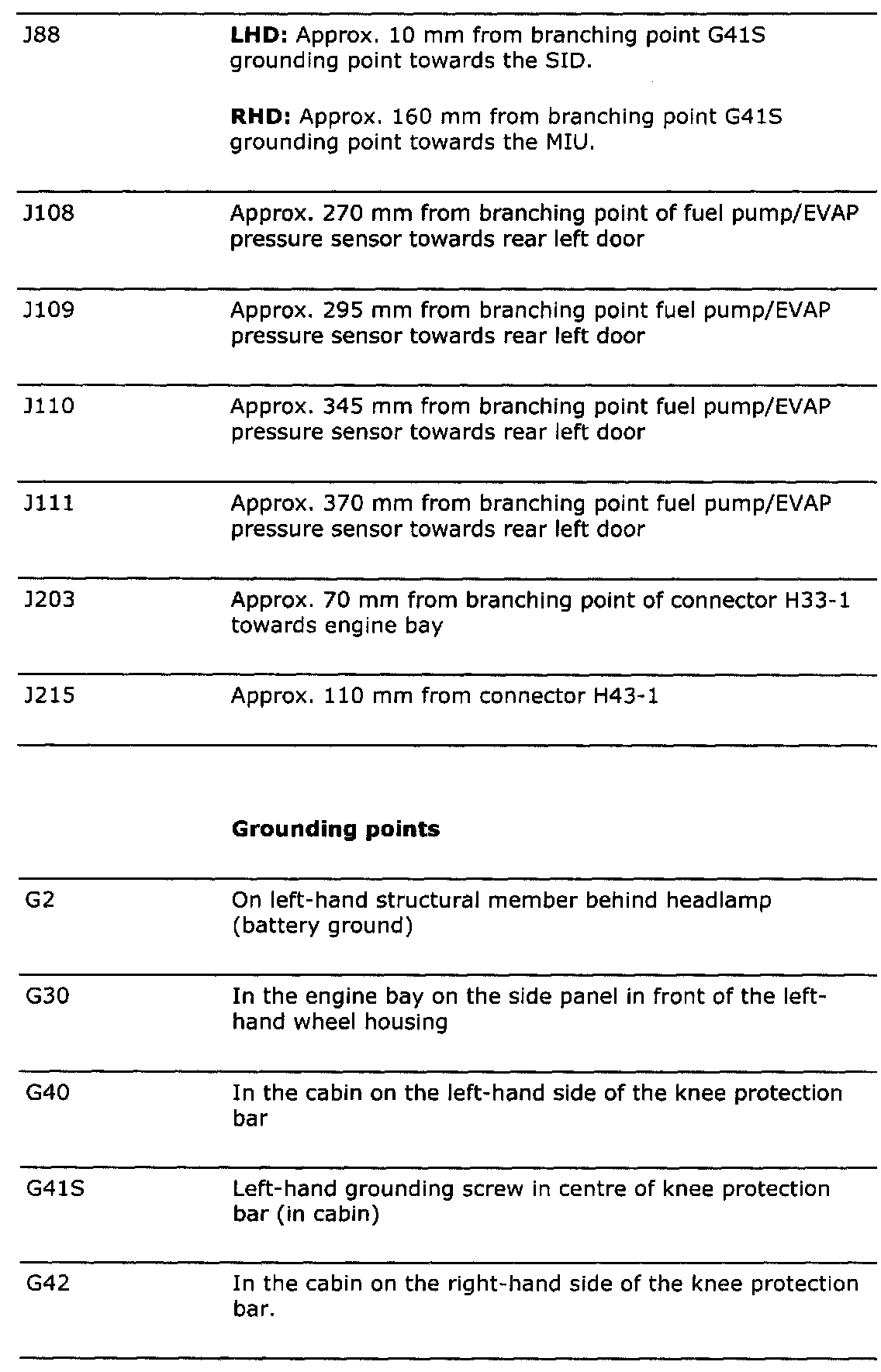

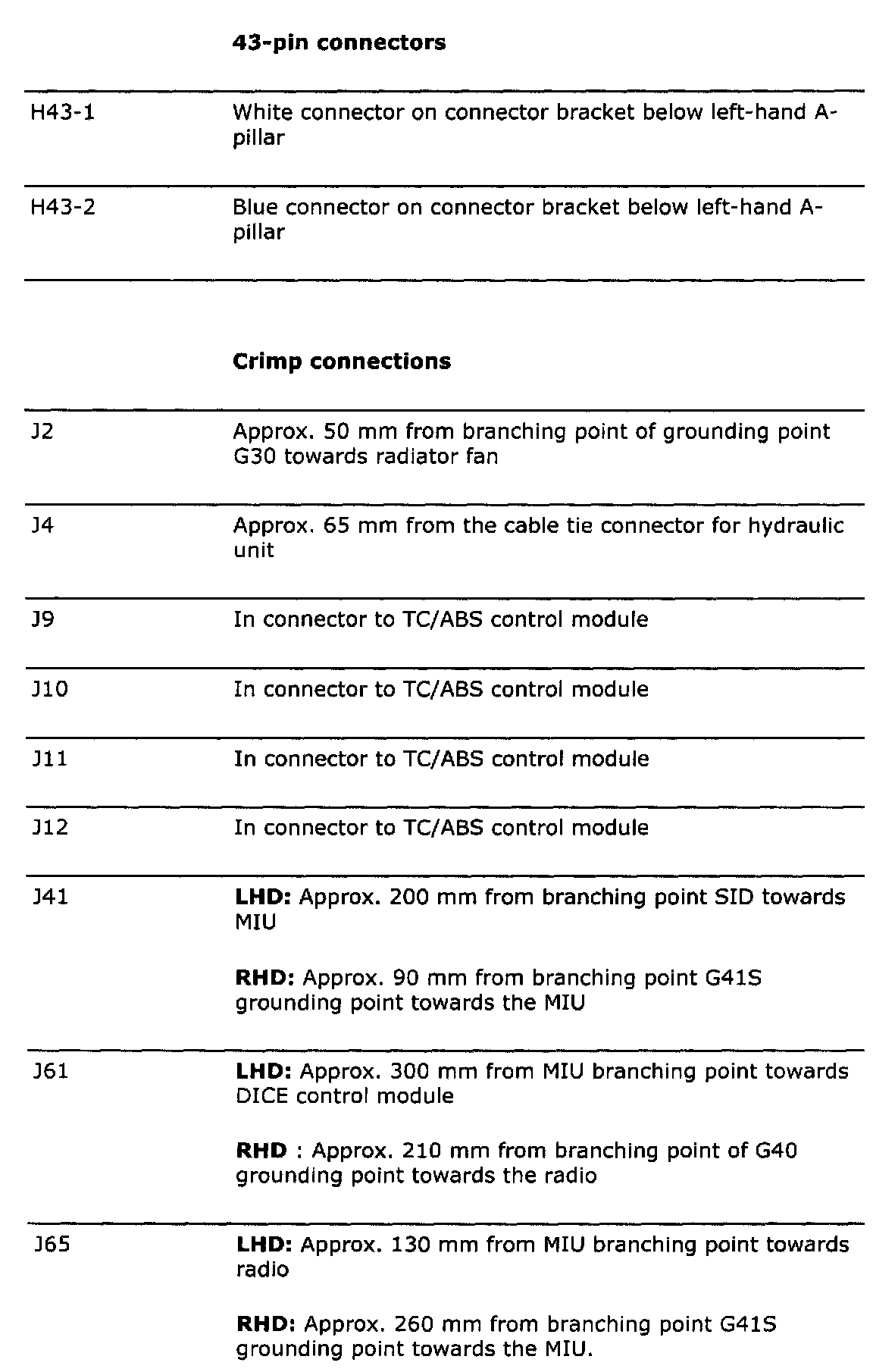

List of Components


Part 1:






Part 2:






Part 3:






Part 4:
