System Overview, Intermittent Wiper Operation, Rear Window

System Overview, Intermittent Wiper Operation, Rear Window (5D)

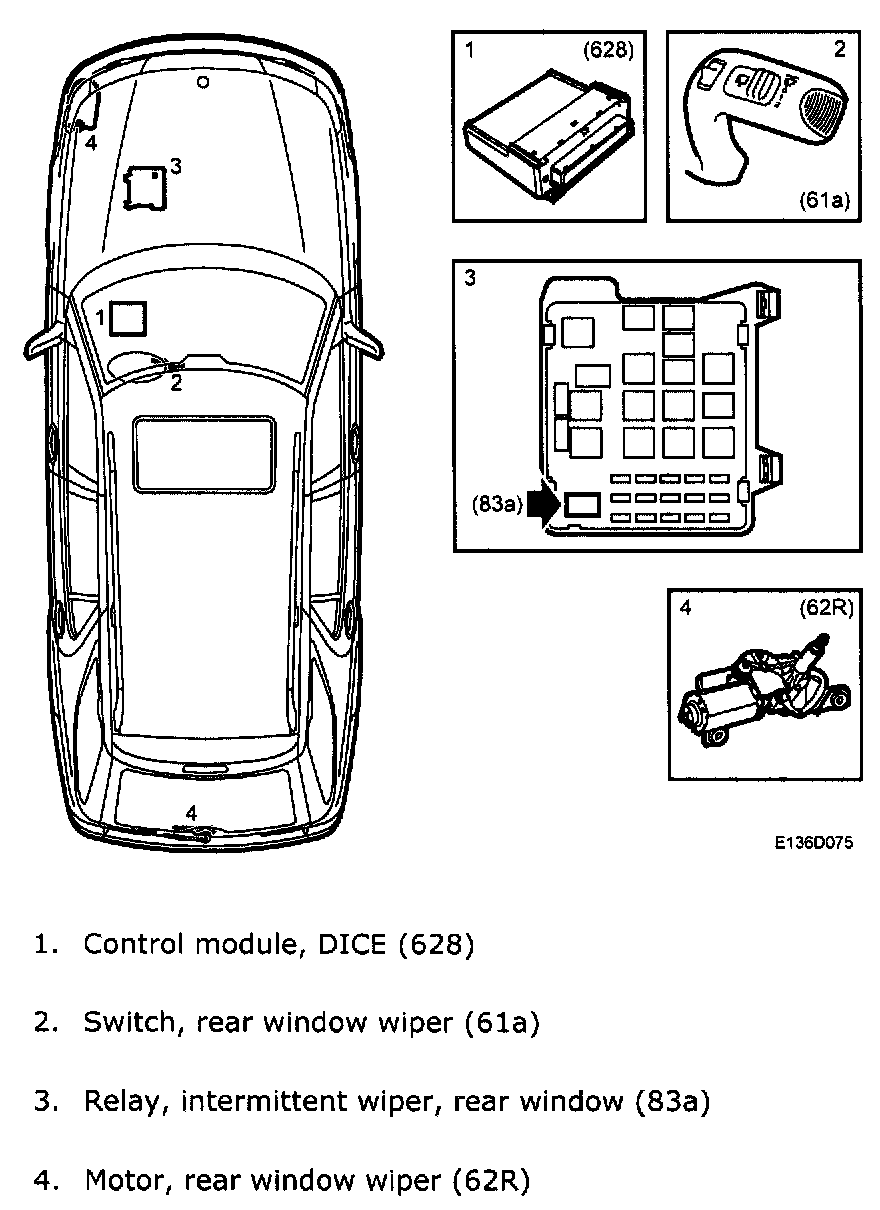

- Control module, DICE (628)
- Switch, rear window wiper (61a)
- Relay, intermittent wiper, rear window (83a)
- Motor, rear window wiper (62R)

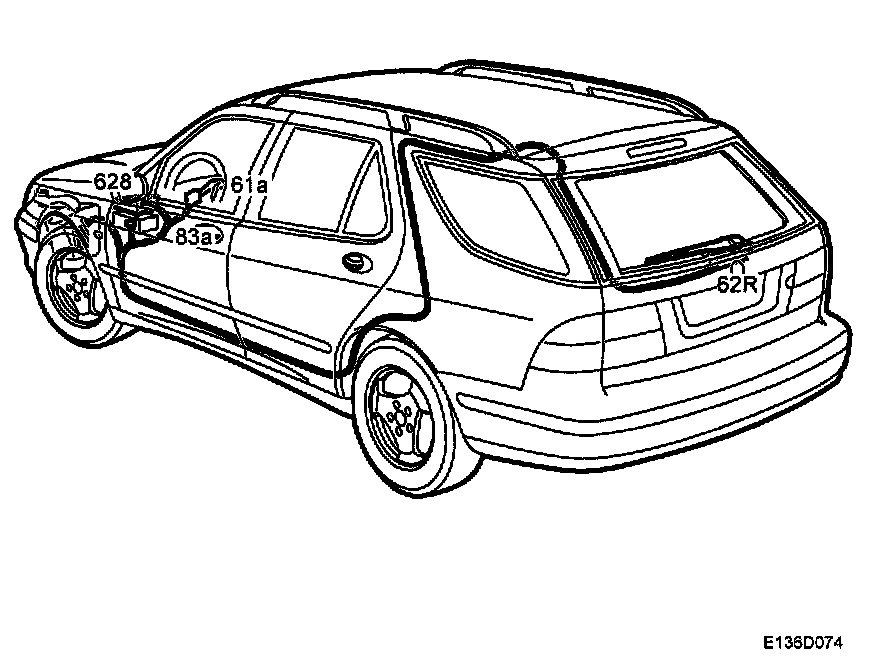

Principal components, intermittent wiper operation, rear window (5D)
