Mixed-Air Temperature Sensor (217 LH/RH)
Mixed-Air Temperature Sensor (217 LH/RH)

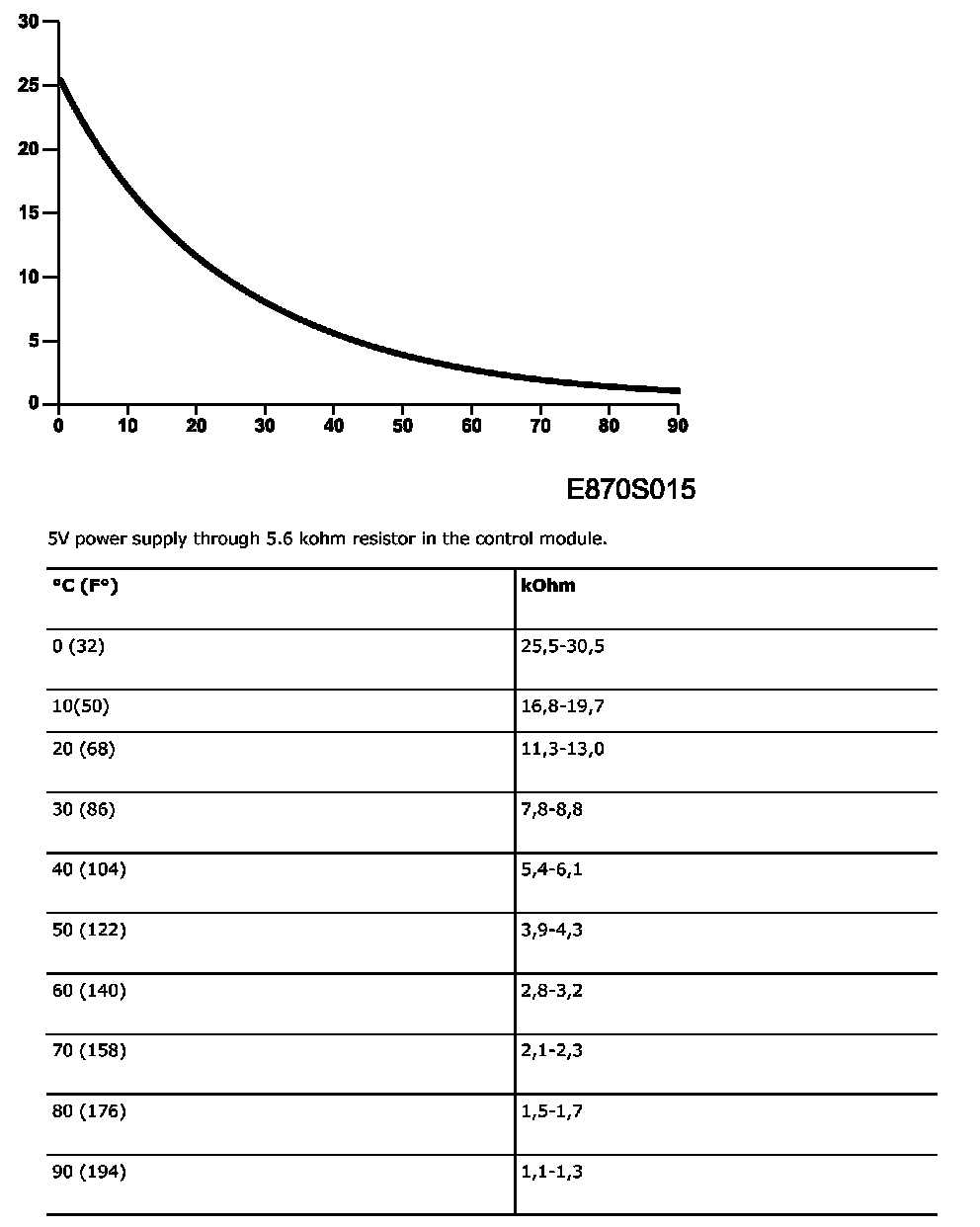

Mixed-air Temperature Sensor (217 LH/RH):
