ABS 5.4

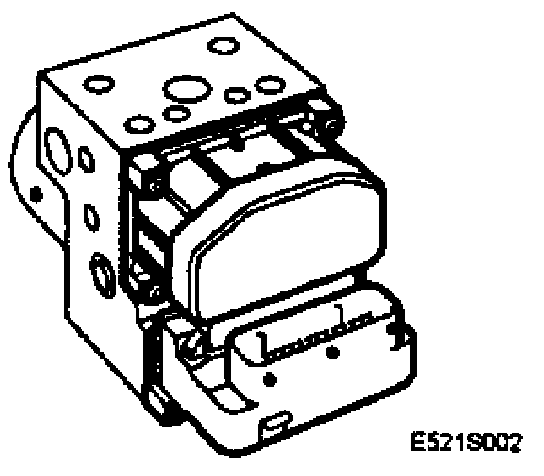

Control Module (Integrated Into Hydraulic Unit)
Number of terminal pins:
26
Power supply, (+30 circuit):
Pin 17, 18
Power supply (+15 circuit):
Pin 15
Main ground:
Pin 19
Working voltage:
9-16 V
Power consumption, brakes-off position:
Less Than 3 mA
