Ground Locations

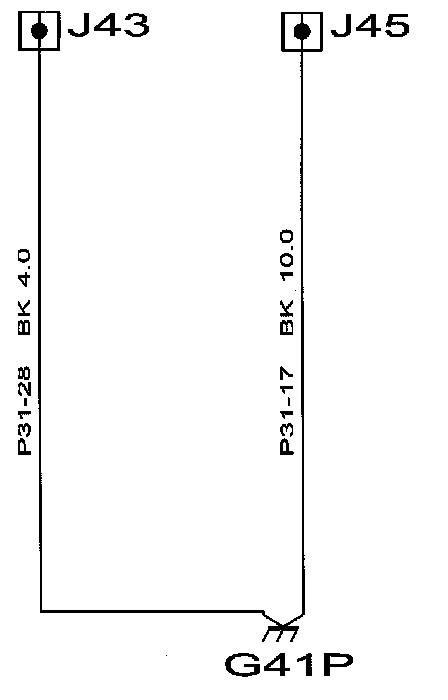

Grounding point, G41P








Location: Left grounding screw on middle of knee member (in cabin)

Part 1:

Part 2:

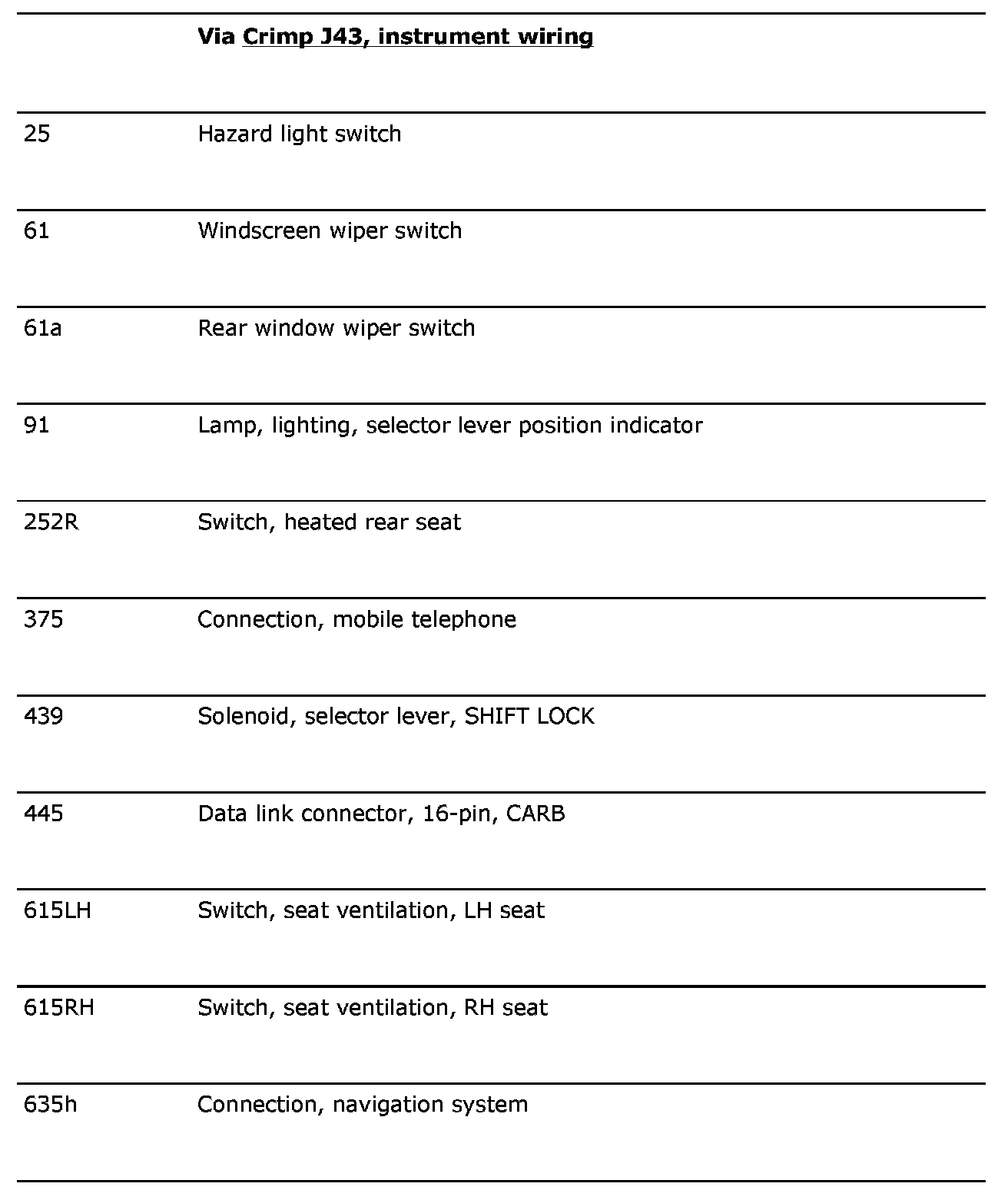

Connected components

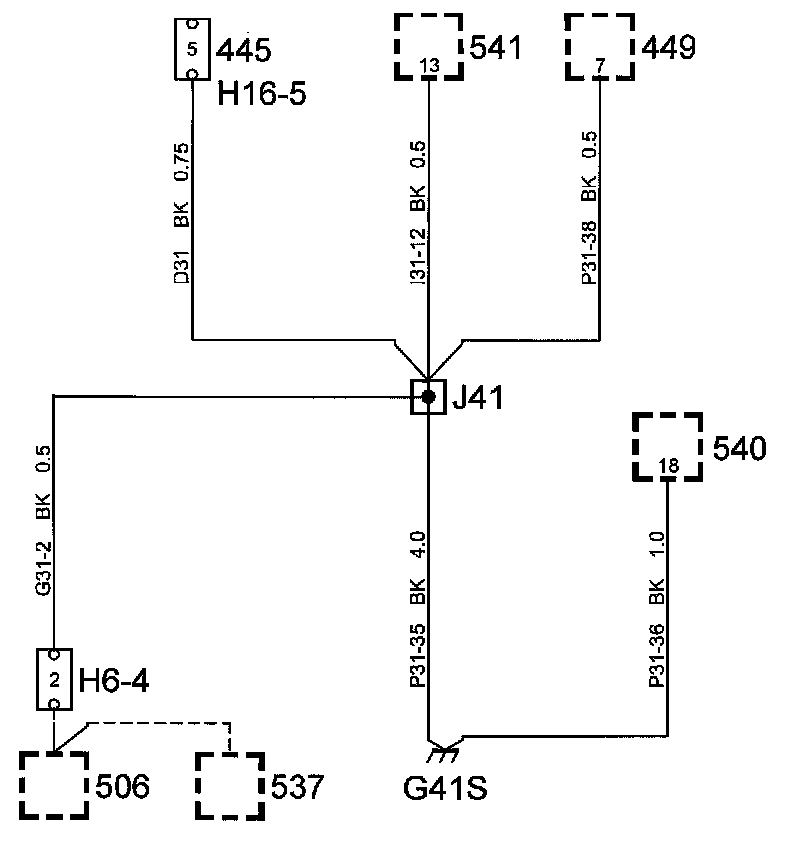

Grounding point G41S








Location: Left-hand grounding screw in center of knee protection bar (in cabin)





Connected components

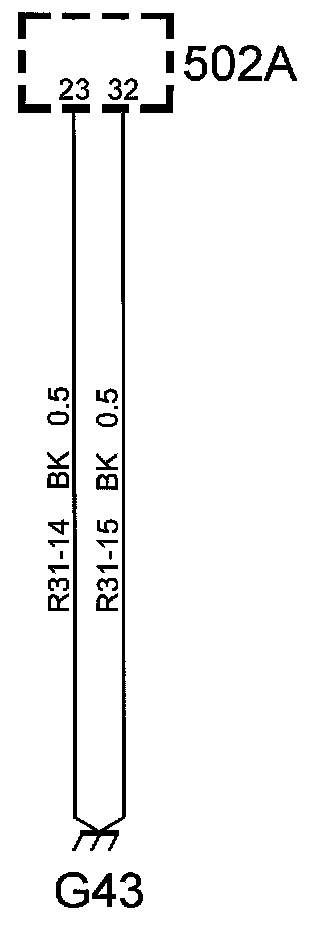

Grounding point G43

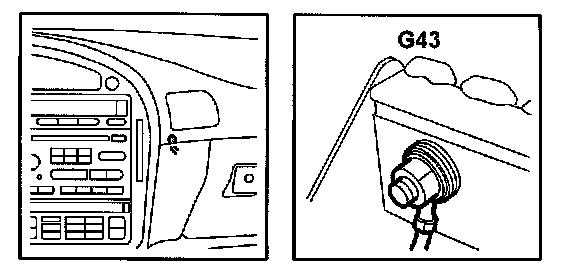

Location: Right-hand grounding bolt in the center of the knee member (inside the cabin).





Connected components
