Rear Window Wiper

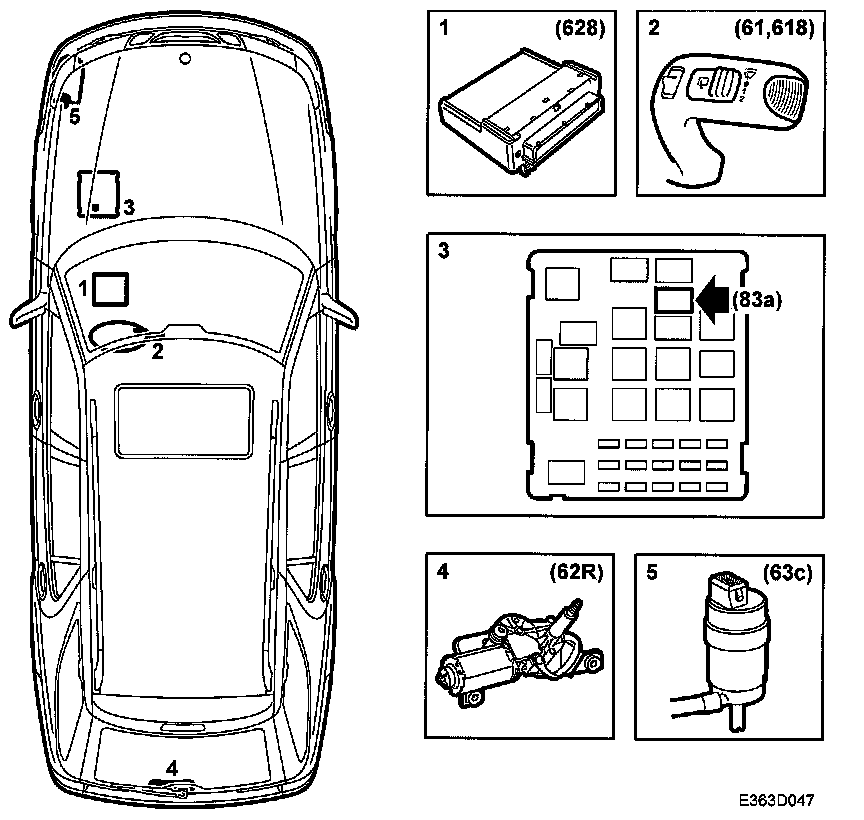

Main Components, Rear Window Wiper, (5D)







1. DICE (628)
2. Windscreen wiper switch (61a)
3. Relay, intermittent rear window wiper (83a)
4. Rear window wiper motor (62R)
5. Washer fluid pump, rear window (63c)
