Drive Belt For Auxiliaries

Drive for auxiliaries

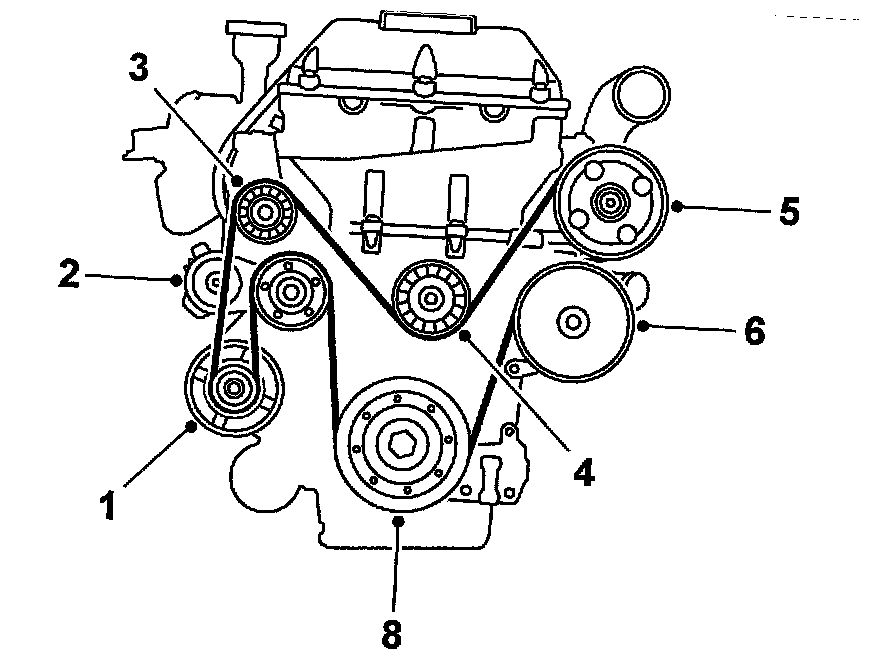

Without A/C:

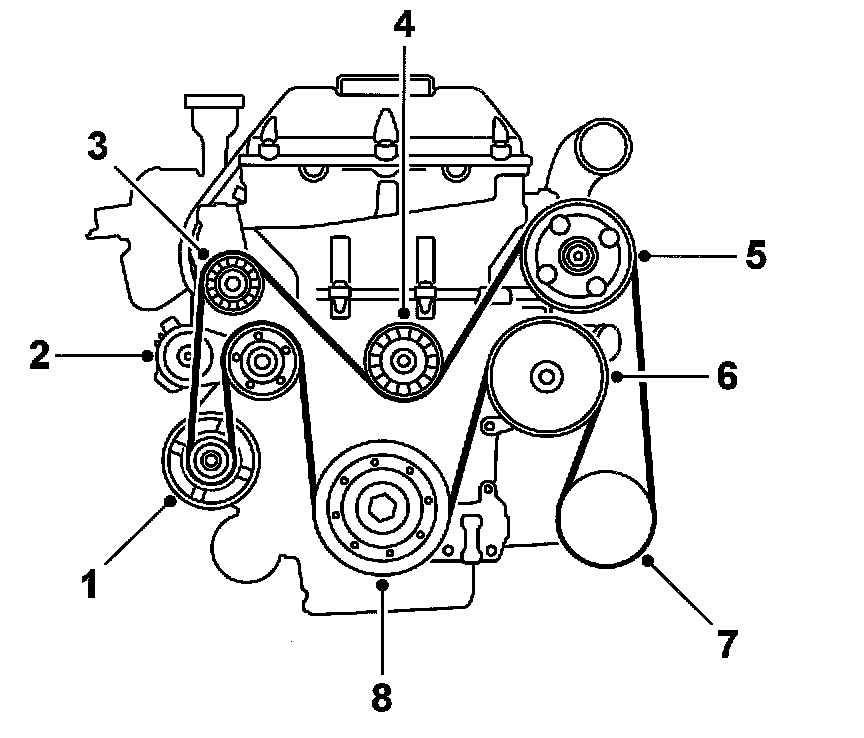

With Air Conditioning:

Drive belt routing, with and without A/C compressor
1. Generator
2. Belt tensioner
3. Idler sprocket
4. Idler sprocket
5. Power steering pump
6. Water pump
7. A/C compressor
8. Crankshaft

The engine has only one belt drive for all the auxiliaries. The drive has an automatic, self-adjusting belt tensioner consisting of a powerful spring which maintains belt tension via a pulley.
