B2360

B2360

A/C Pressure Sensor. Short to Ground

A/C Pressure Sensor. Open Circuit / Short to B+







Fault symptoms
No cold from the A/C system.

Conditions
Short to ground is set if:

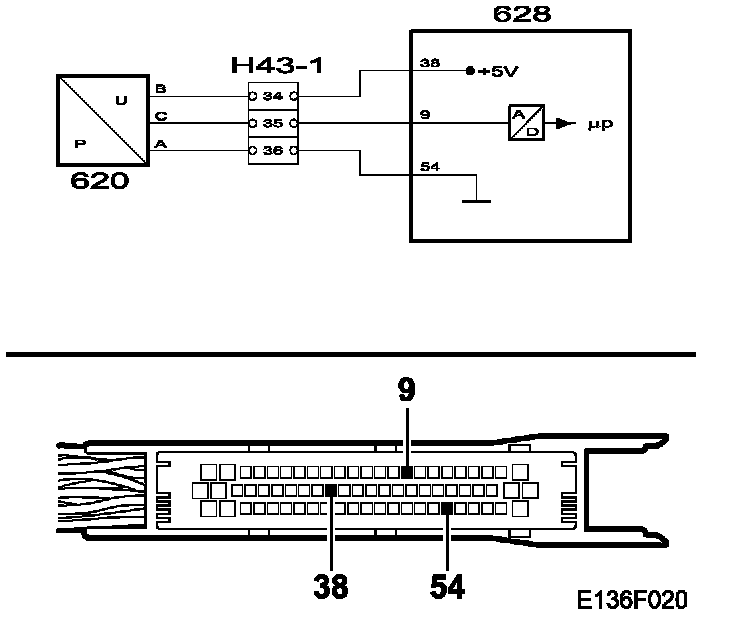

- the control module's pin 9 is short circuited to ground.
- the voltage is below normal measuring range.

Open Circuit/Short to B+ is set if:
- the control module's pin 9 is short circuited to B+.
- the voltage is above normal measuring range.

Diagnostic help
The pressure in the A/C system can be read using the diagnostic tool.
In the event of an open circuit in the wiring DICE switches off power supply (pin 38) 0.5s after ignition.

[Fault Diagnosis Procedure]
