B2425

B2425

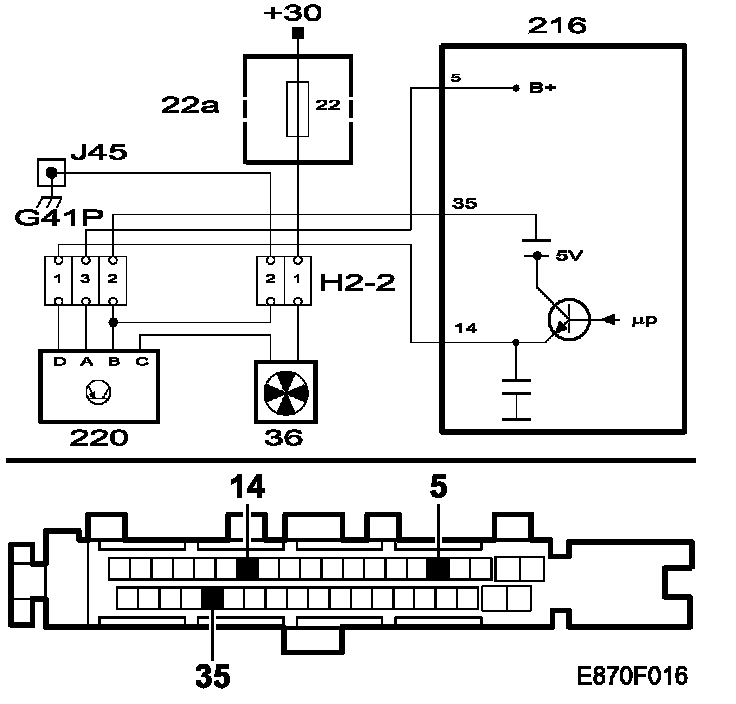

Fan Control Voltage. Short To B+

Fan Control Voltage. Short to Ground







Fault symptoms
The ventilation fan cannot be operated from the ACC.

Conditions
Short circuit to ground or B+.

[Fault Diagnosis Procedure]
