Leak Detection Solenoid, Evaporative System
Leak Detection Solenoid, Evaporative System

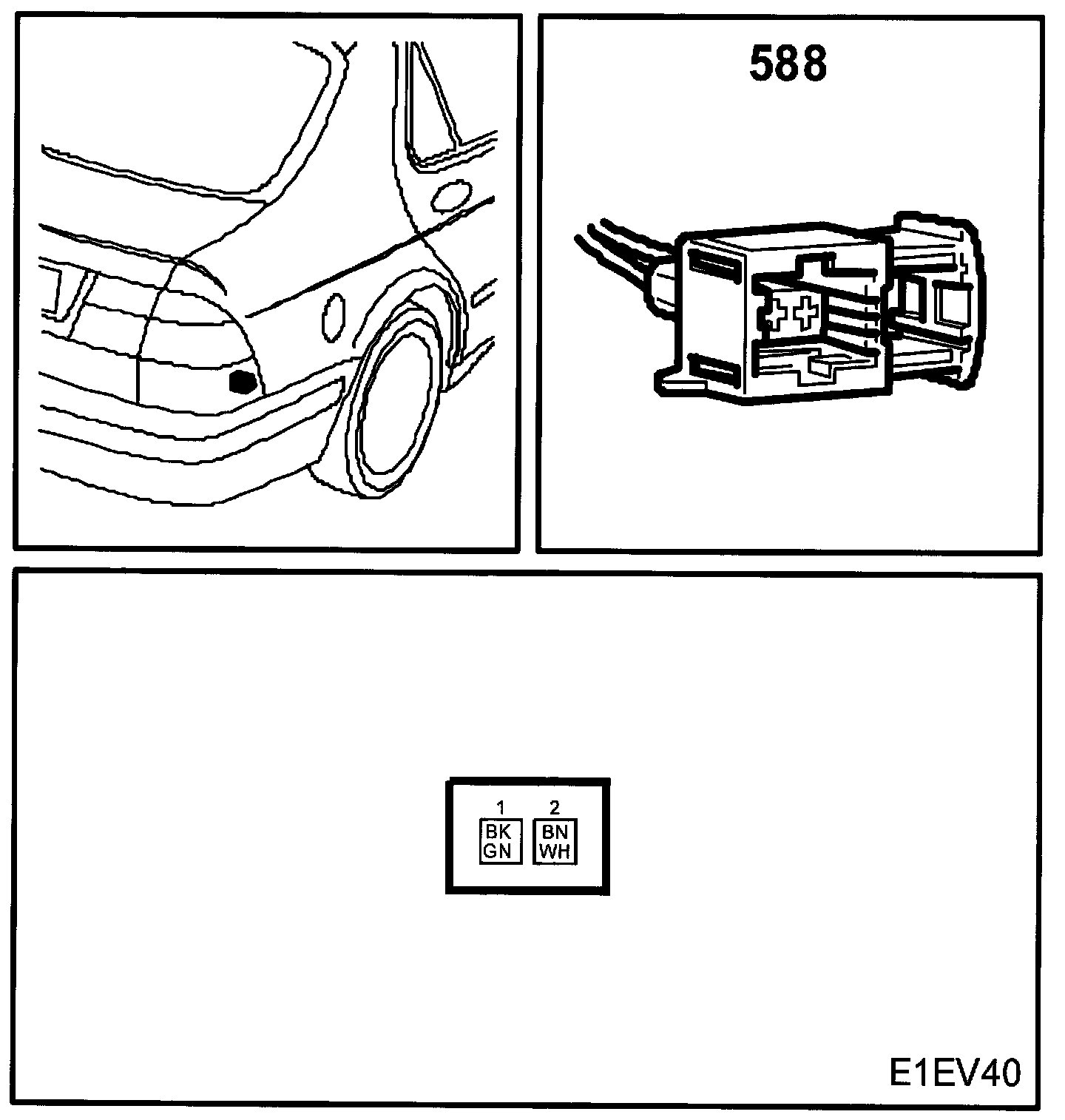

Solenoid Valve, EVAP Shut-off (588):
