Home >> Saab >> 2003 >> 9-5 Sport Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector H8-6

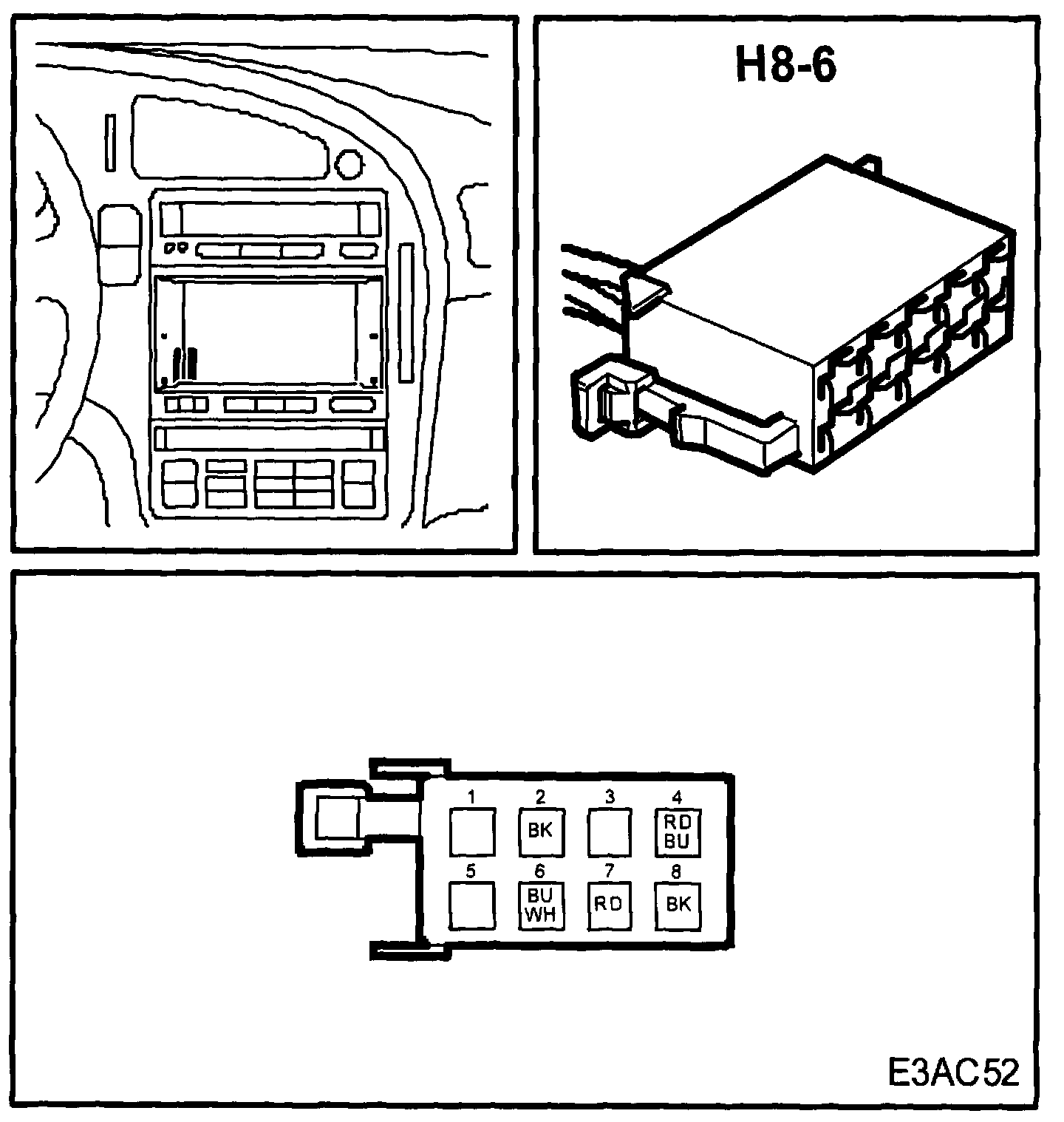

Connector H8-6

Connector H8-6:
