Grounding Point G2
Grounding Point G2

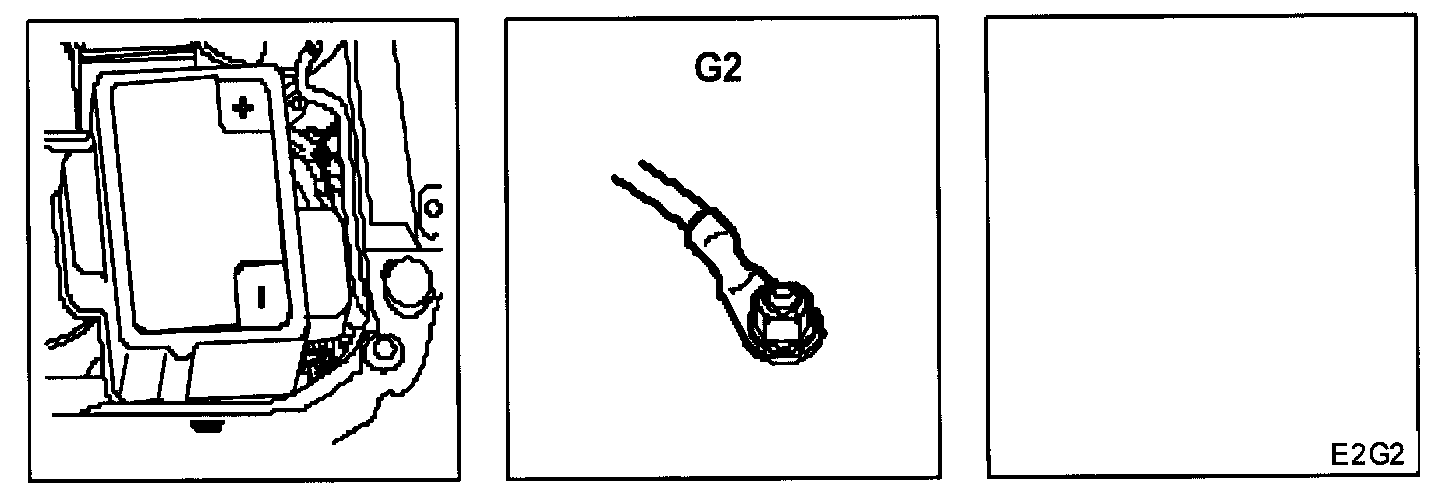

Location:
Left hand structural member behind headlamp (battery ground).
Grounding Point G2:

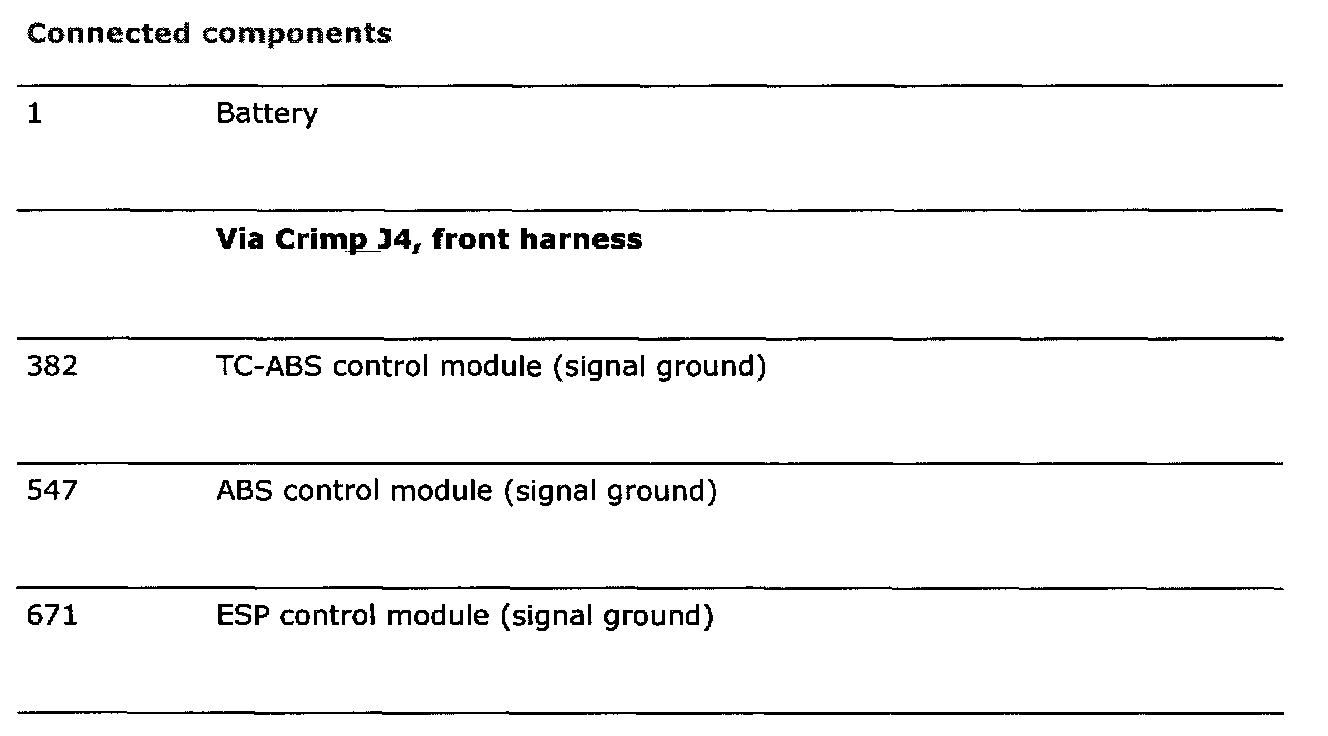

Connected Components:
