Grounding Point G24
Grounding Point G24

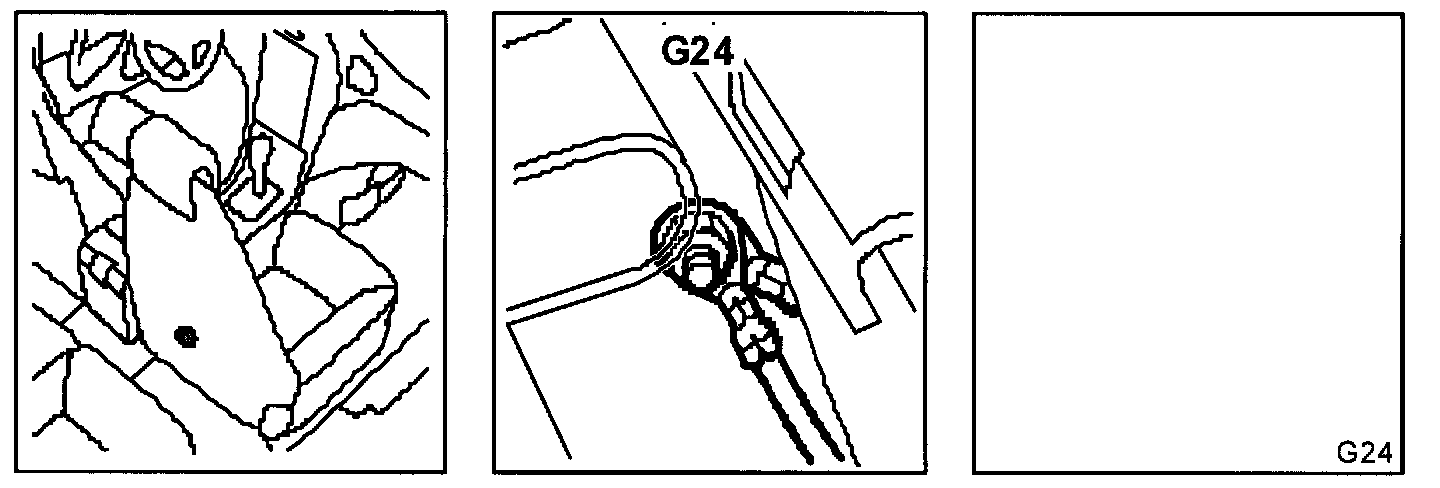

Location:
On seat member under RH seat.
Grounding Point G24:

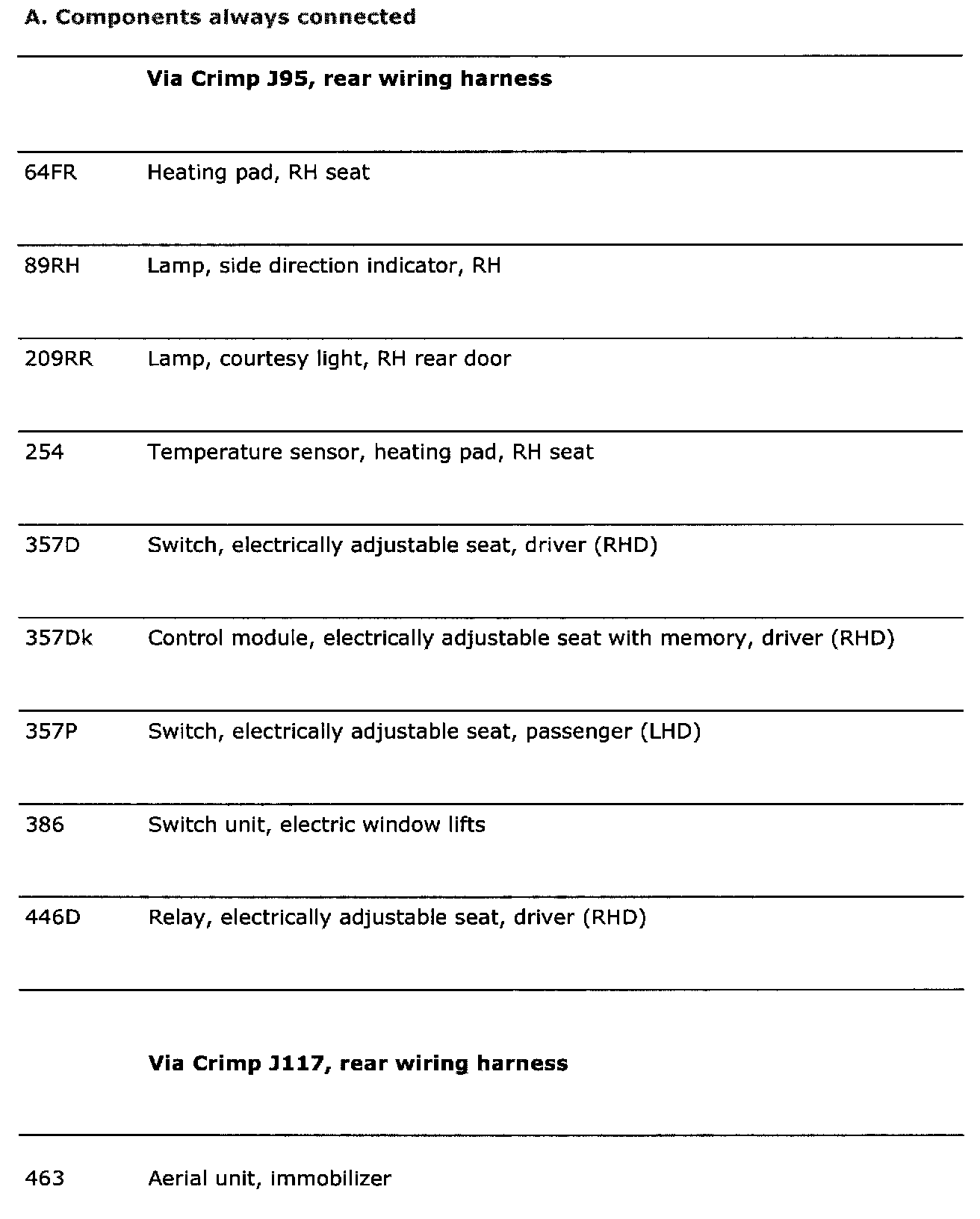

Connected Components Part 1:
Connected Components Part 2:

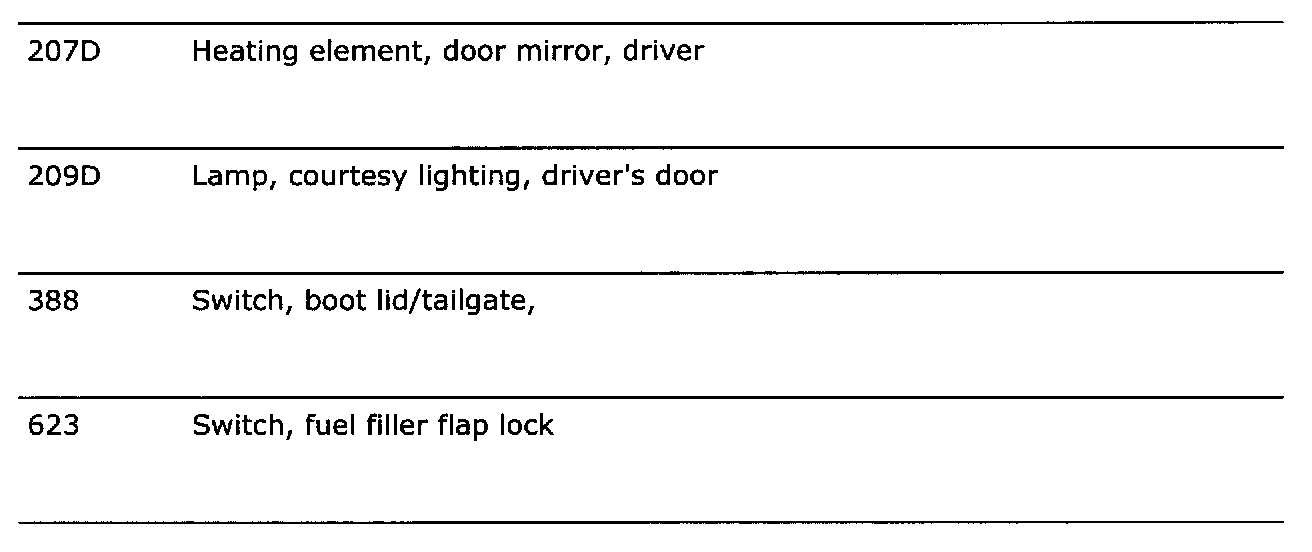

Connected Components Part 3:
