Grounding Point G41P
Grounding Point G41P
Location:
Left grounding screw on middle of knee member (in cabin)
Grounding Point G41P:

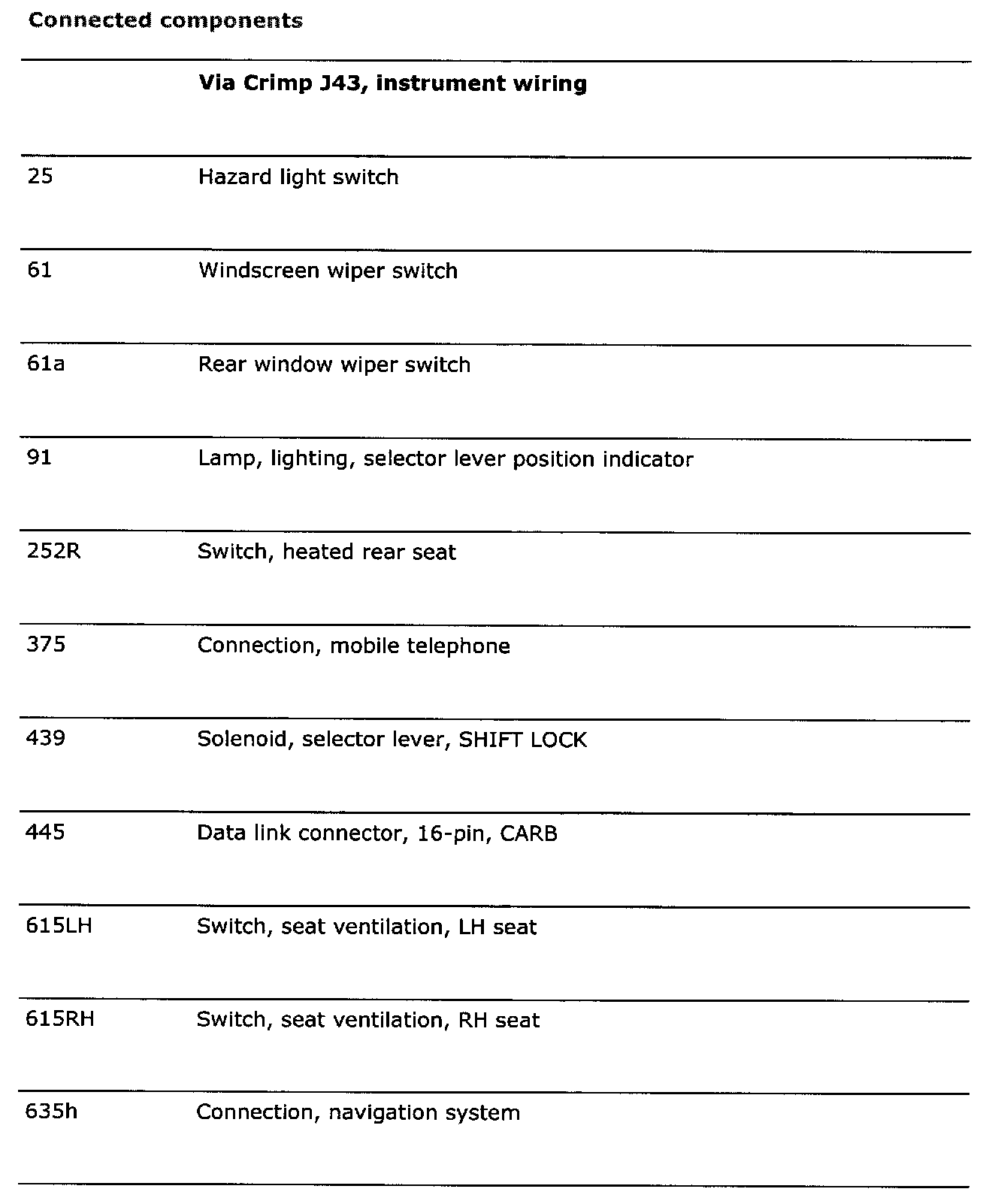

Connected Components Part 1:

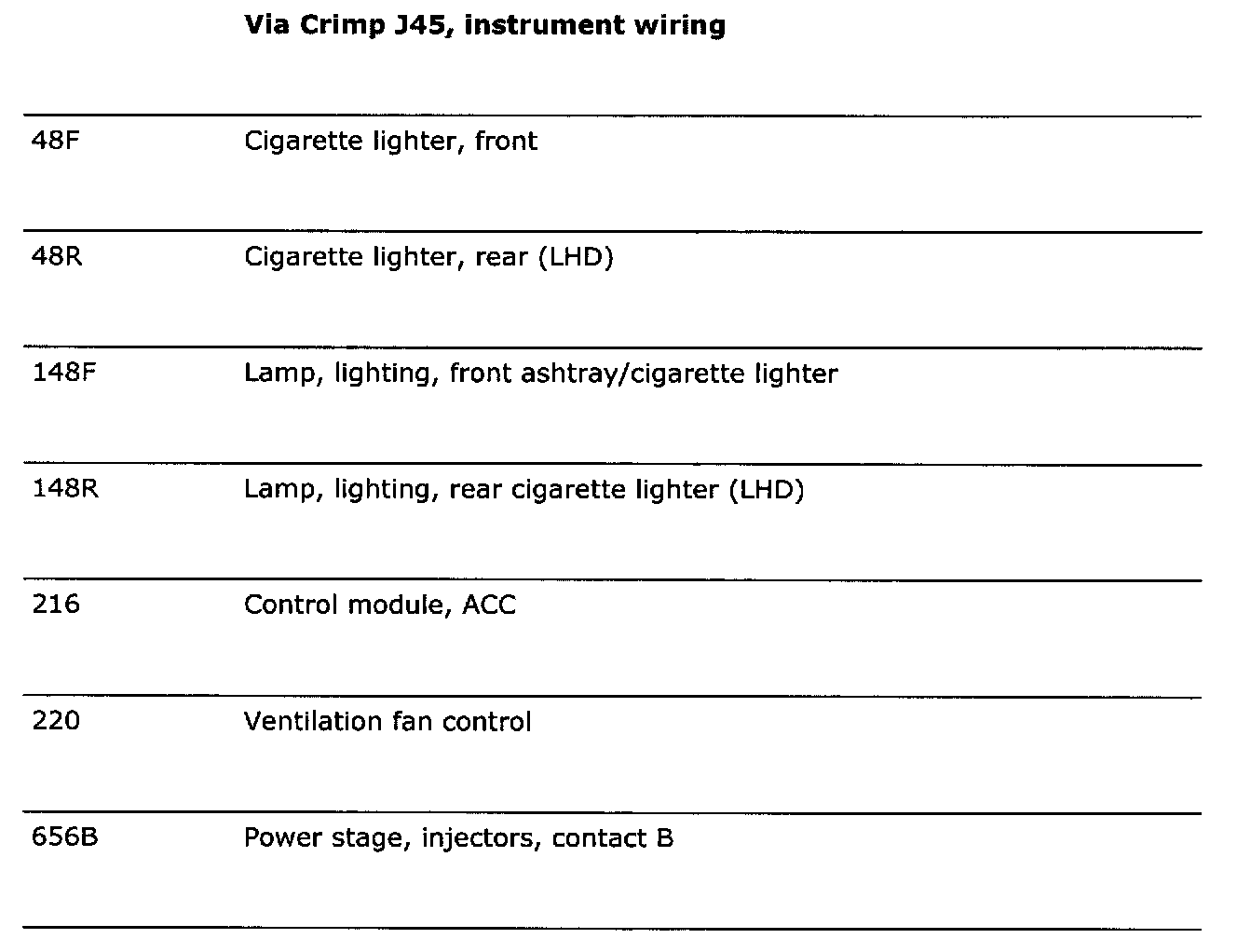

Connected Components Part 2:
