Grounding Point G45
Grounding Point G45

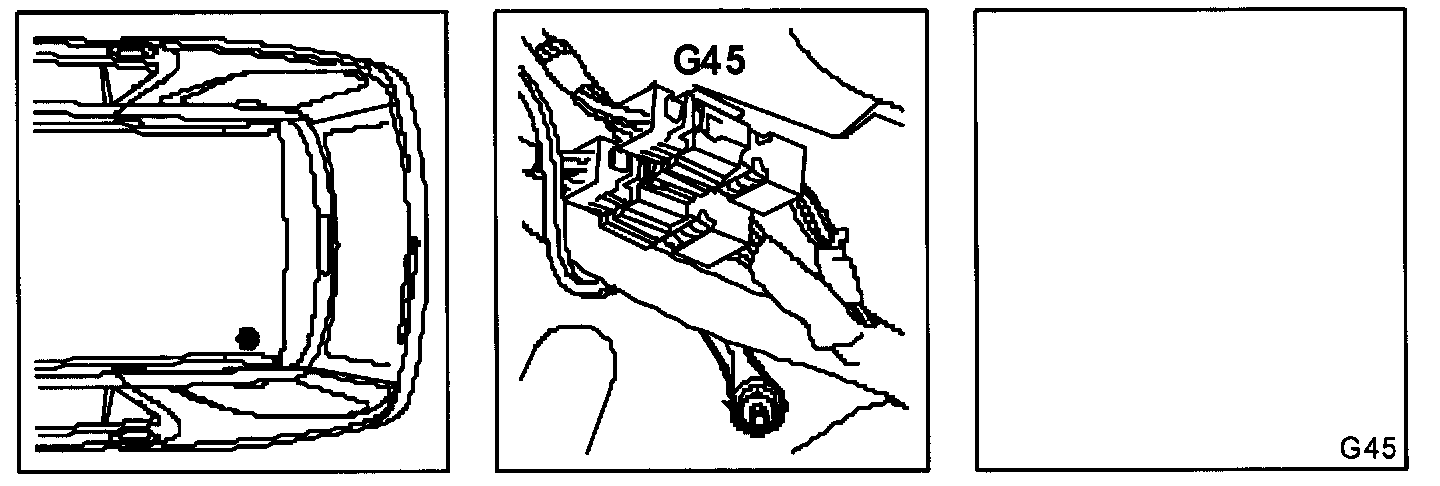

Location:
In roof above LH D-pillar.
Grounding Point G45 (Only 5D):

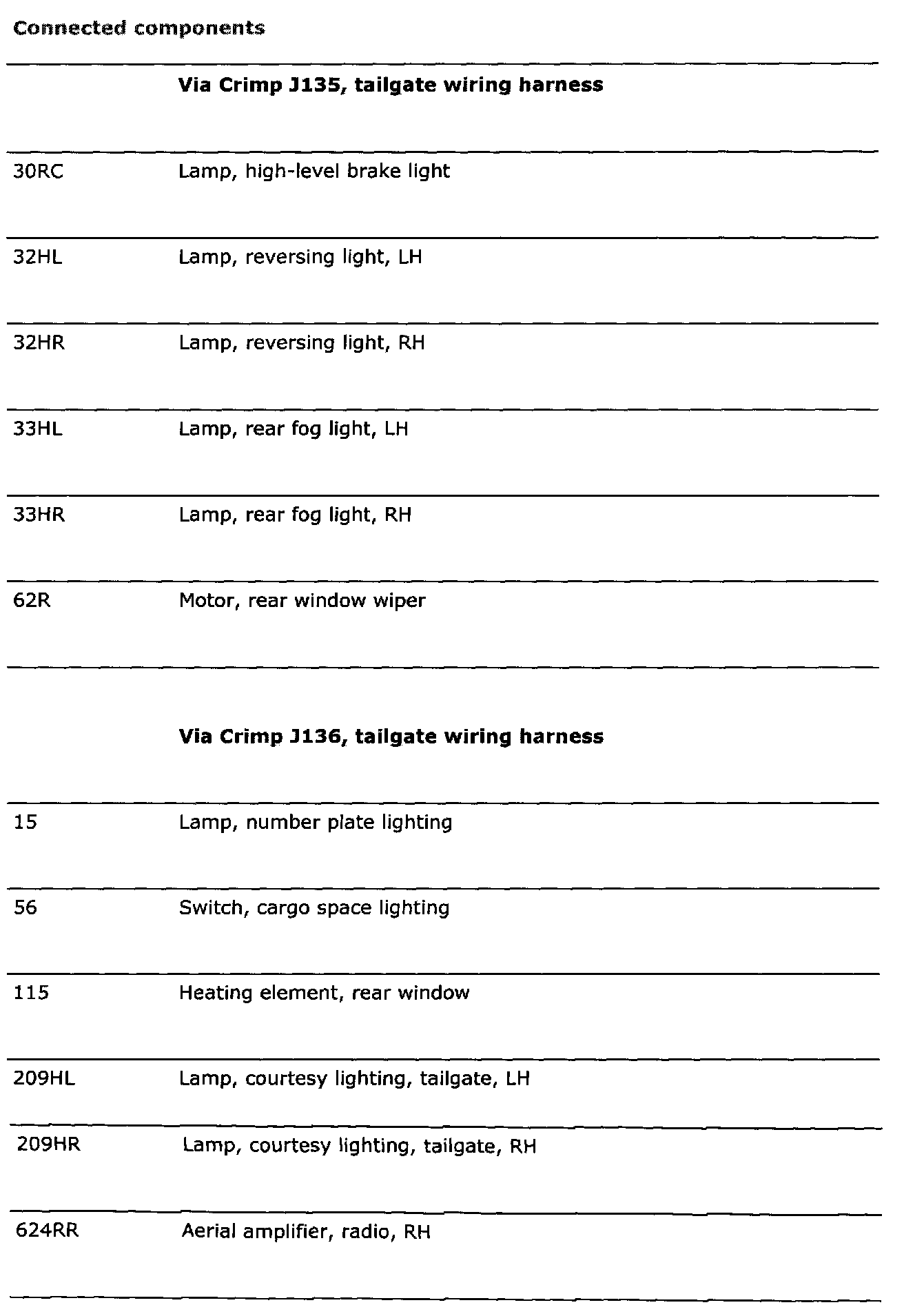

Connected Components:
