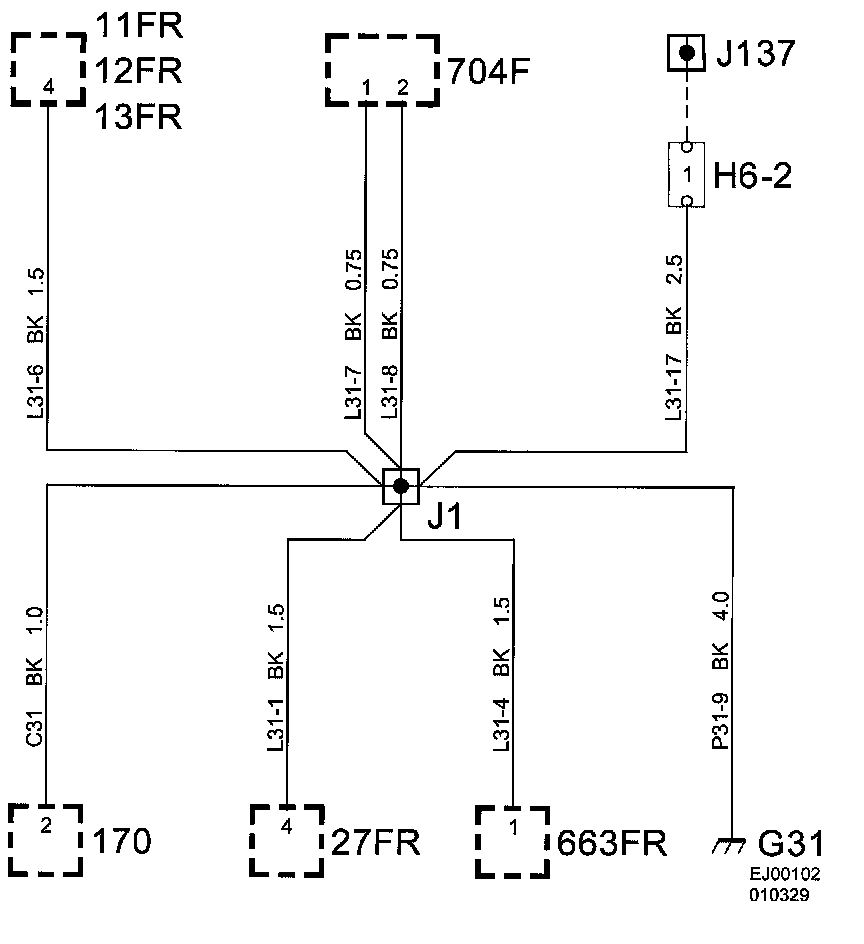

Grounding Point, G31
Grounding Point, G31
Grounding Point, G31

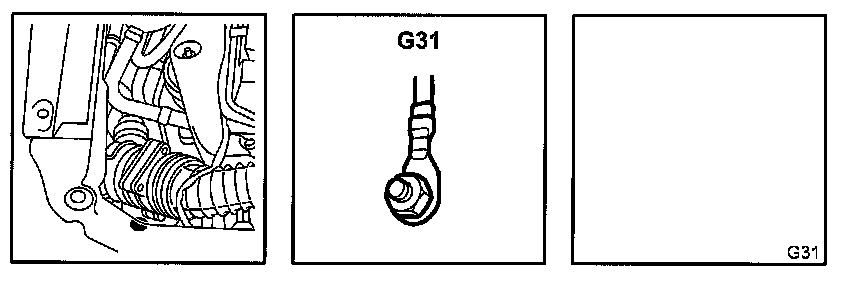

Location:
On the RH structural member behind the headlamp.

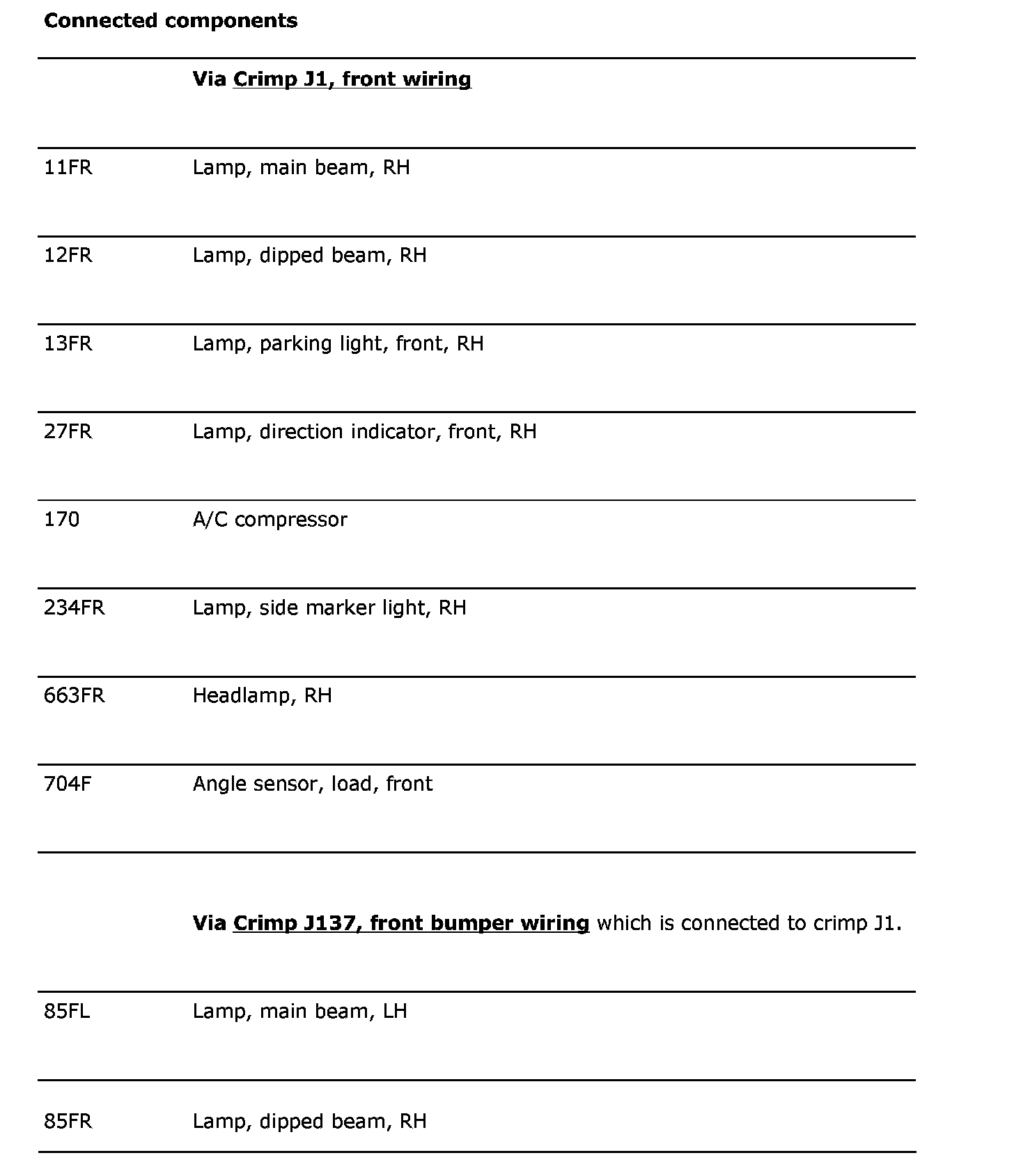

Connected Components:
