Coolant Temperature Sensor/Switch (For Computer)

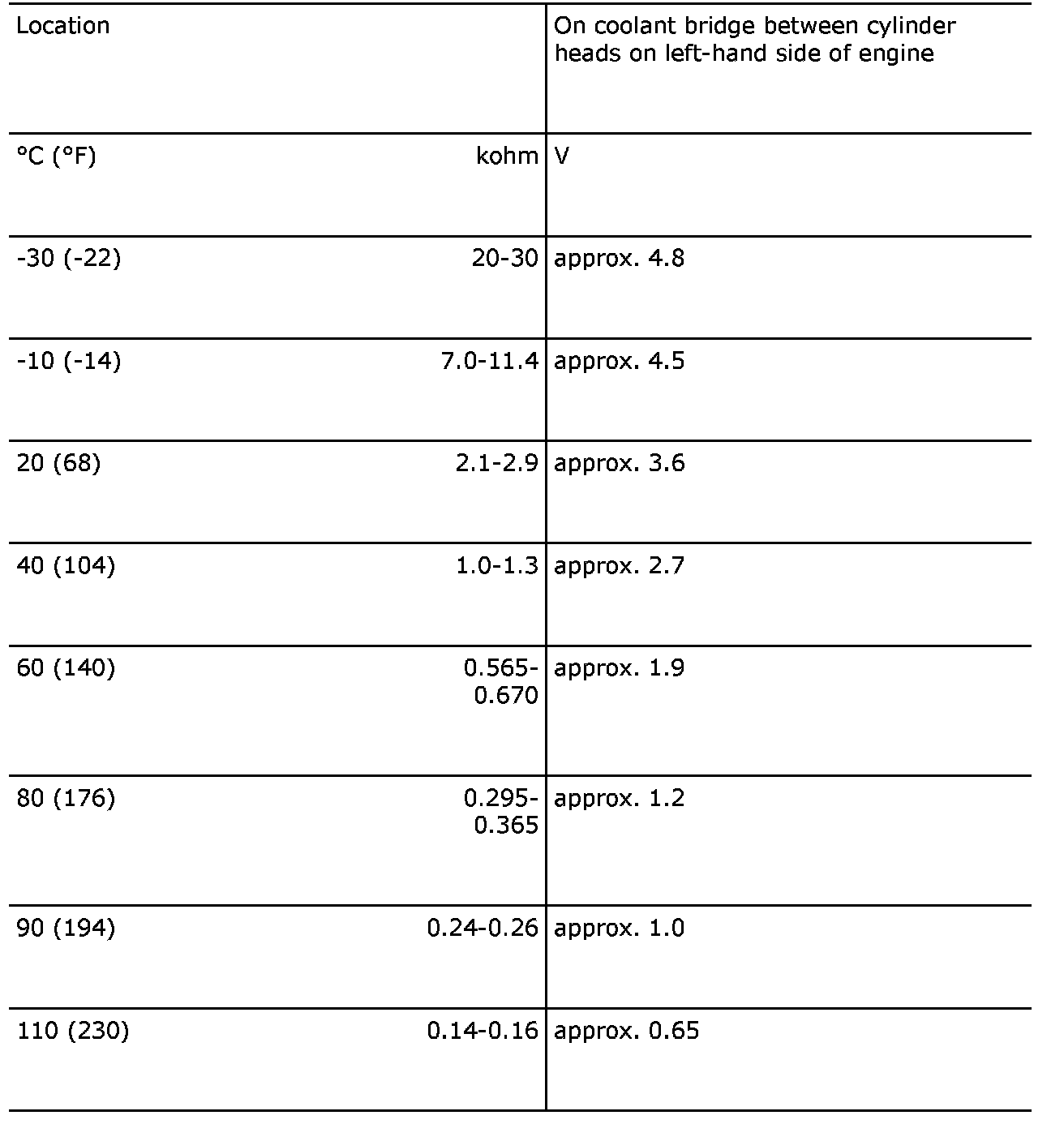

Temperature Sensor, Coolant (202)










Power supply 5 V through 1.0 kohm resistor in control module.
