Windshield Washer Relay: Locations

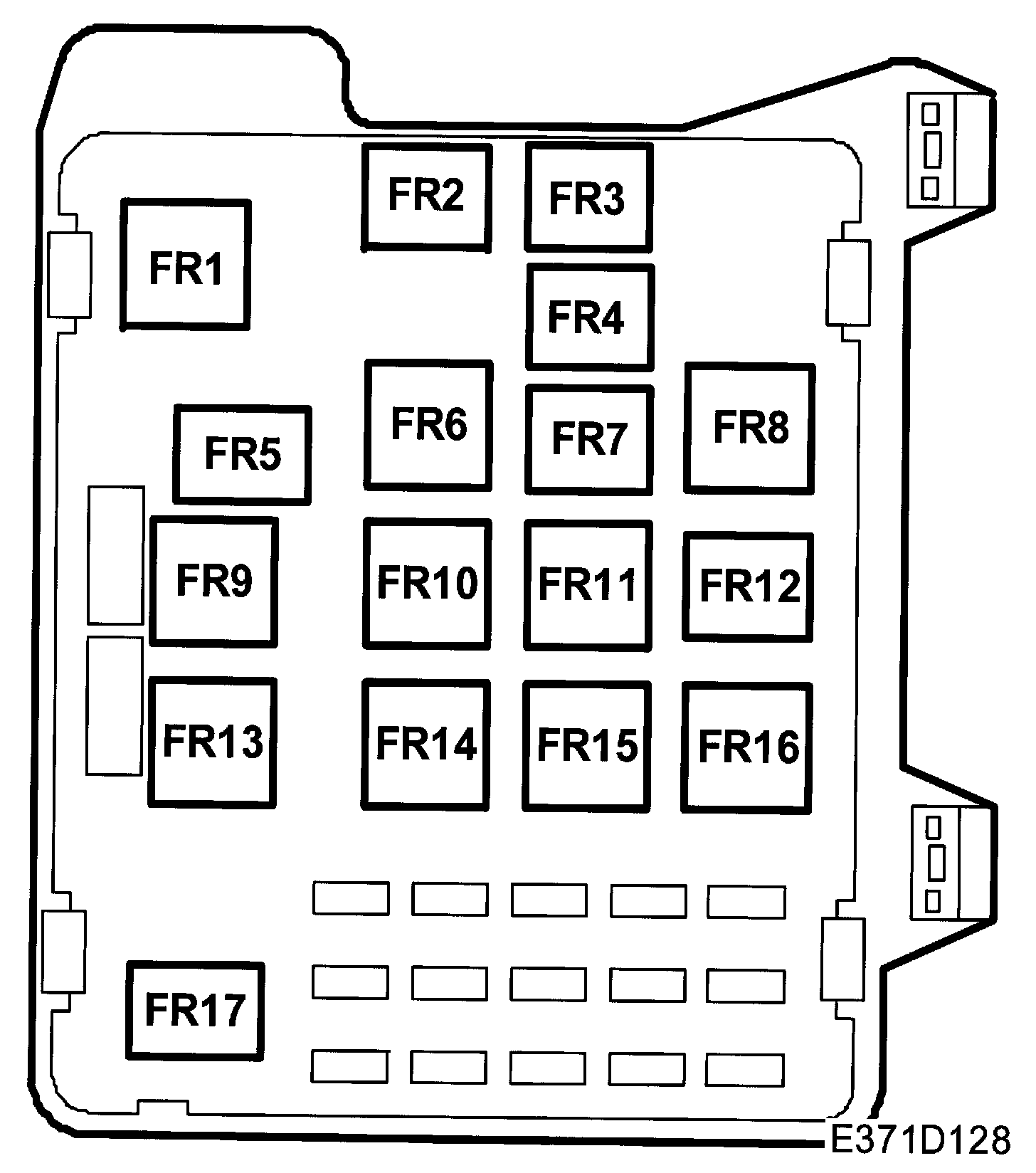

Relay Board 342b In Engine Bay
Relay Box 342b In The Engine Bay:
Behind the battery.

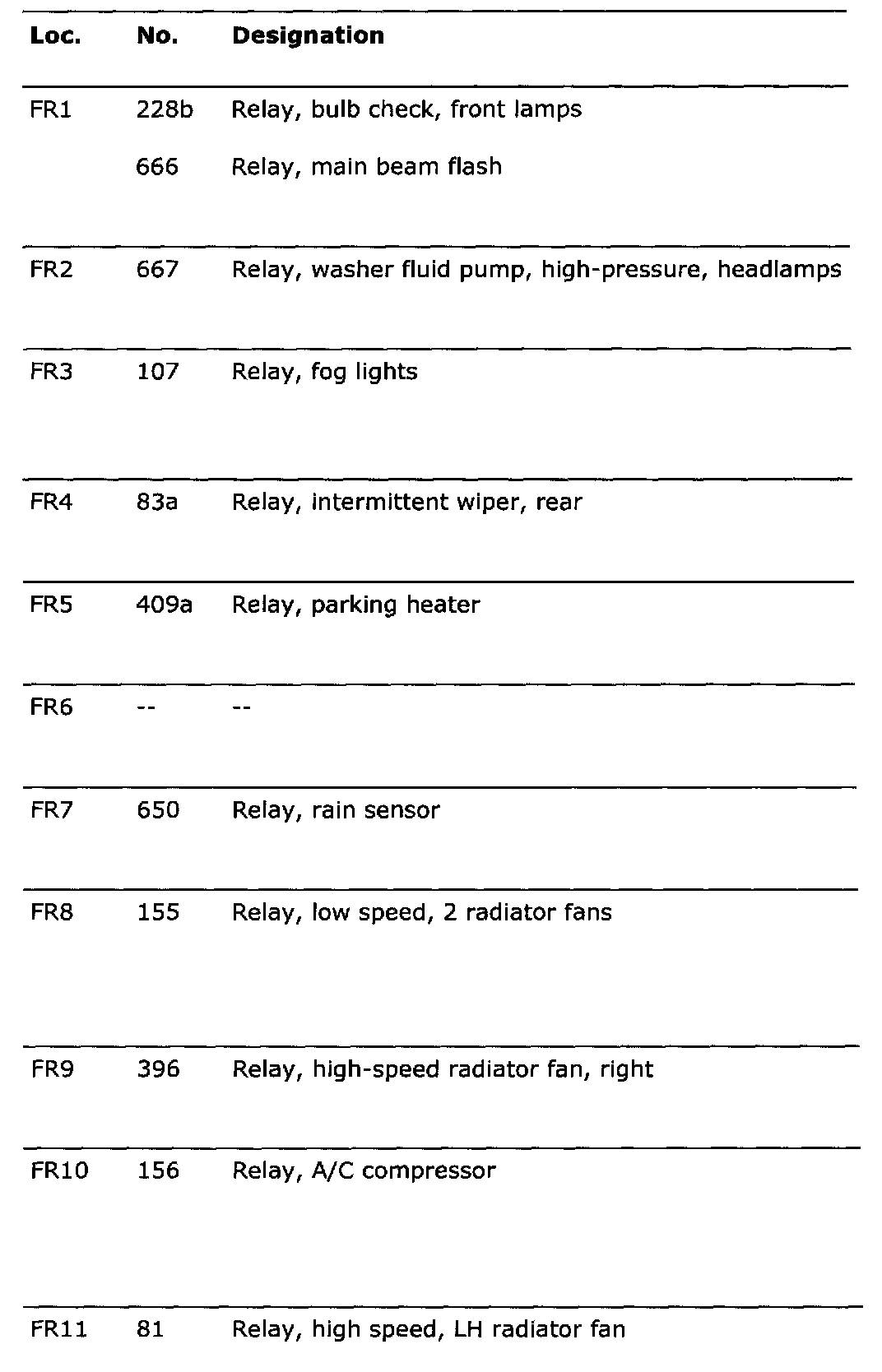

Relay Designation FR1 - FR11:

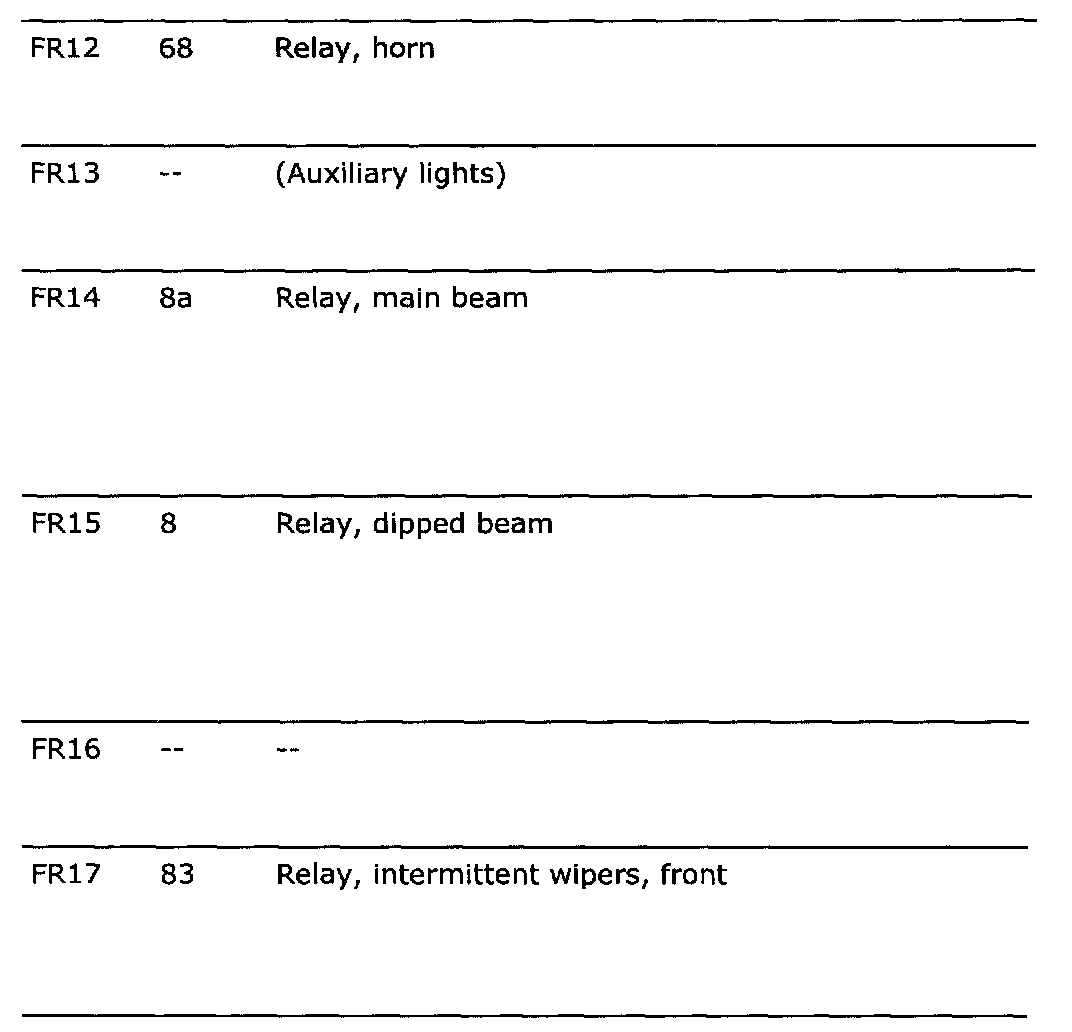

Relay Designation FR12 - FR17:
