Headlamp Washer Motor Relay: Diagrams

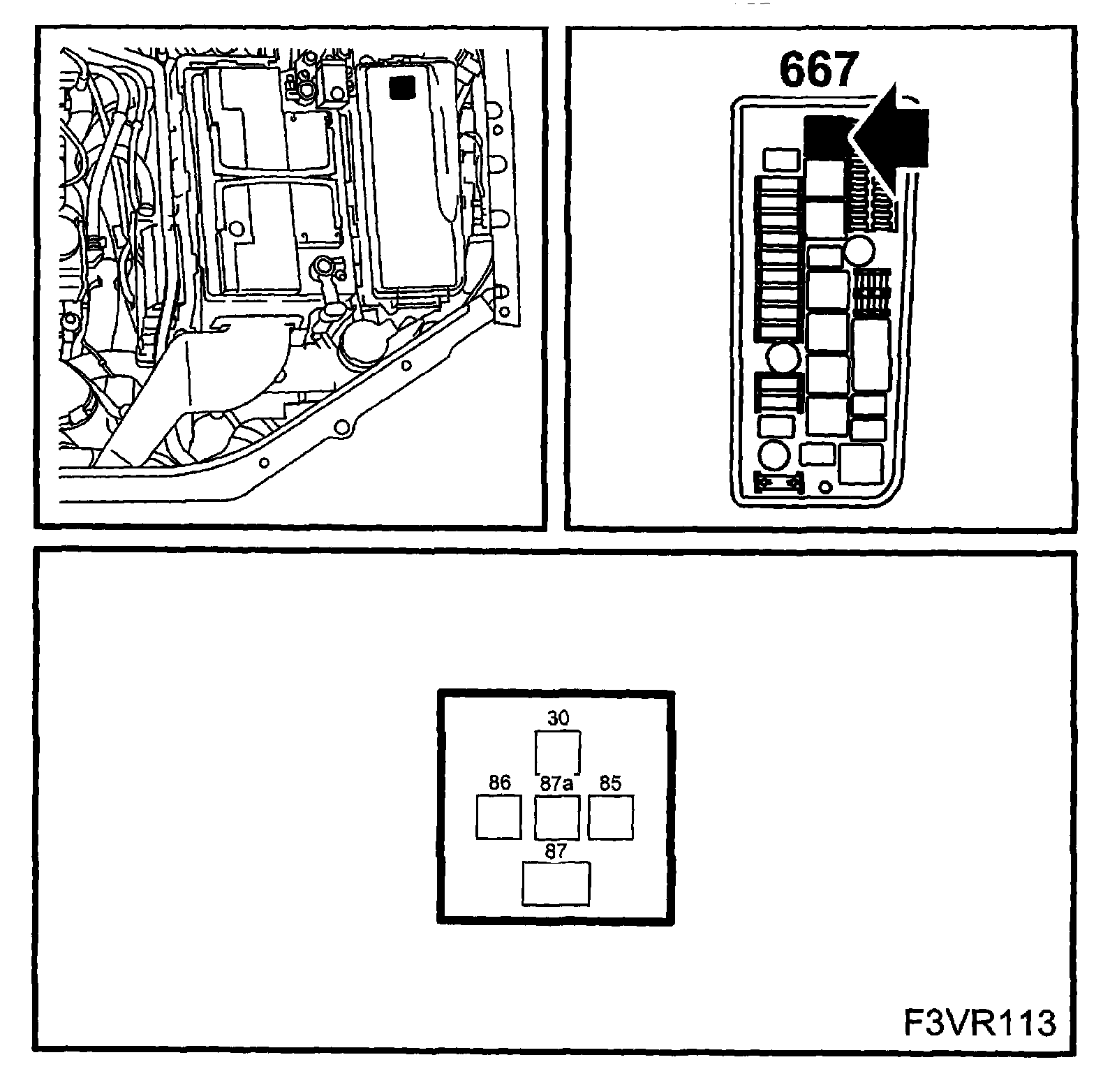

Location: in main fuse box in engine bay 342


High Pressure Headlamp Washer Fluid Pump Relay (667):
