Saab
>>
2004
>>
9-5 Aero (9600) L4-2.3L Turbo (2.3HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Lamps
Trailer Lamps

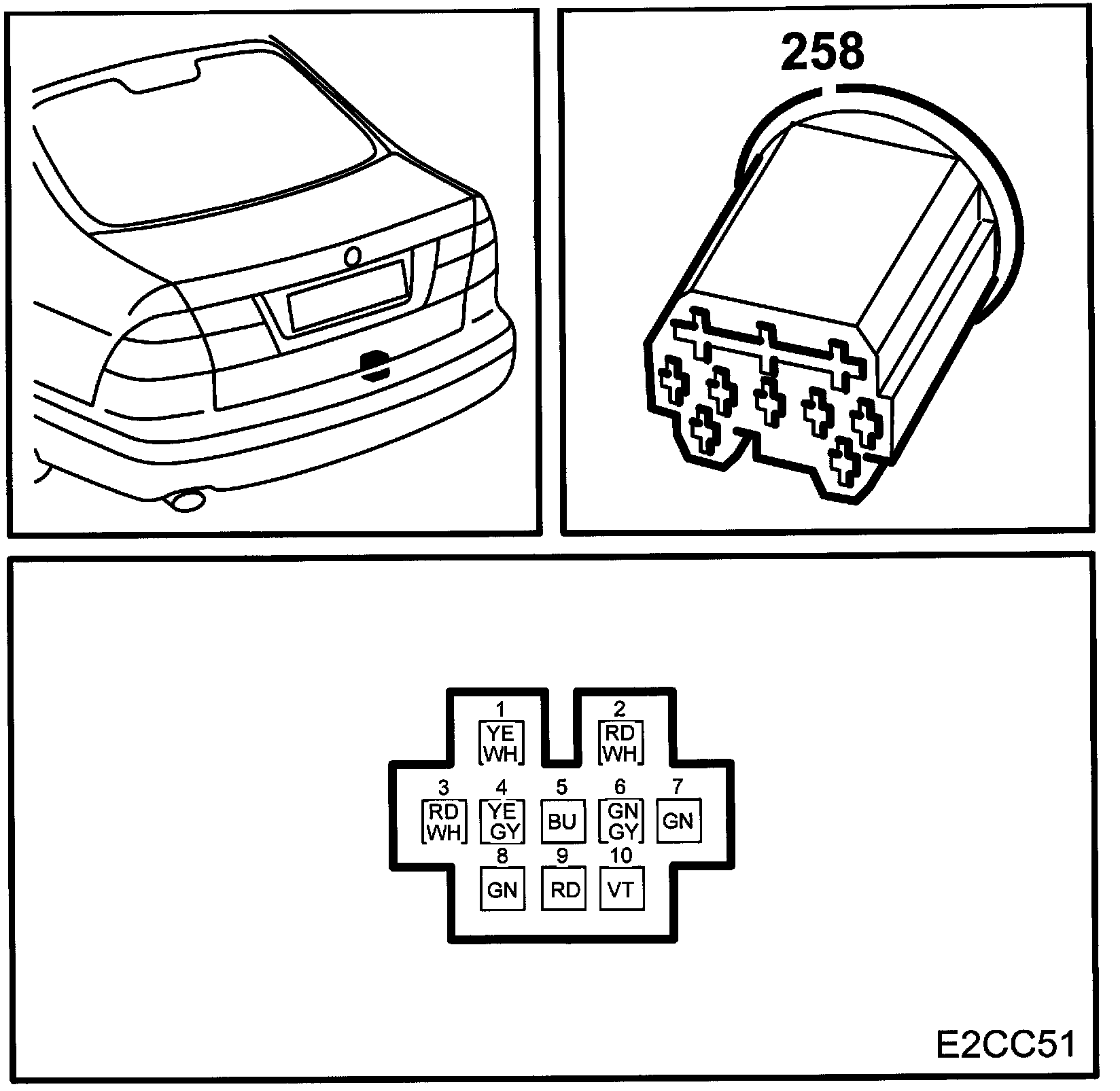

Connection, Trailer Connector (258) (Part 1):

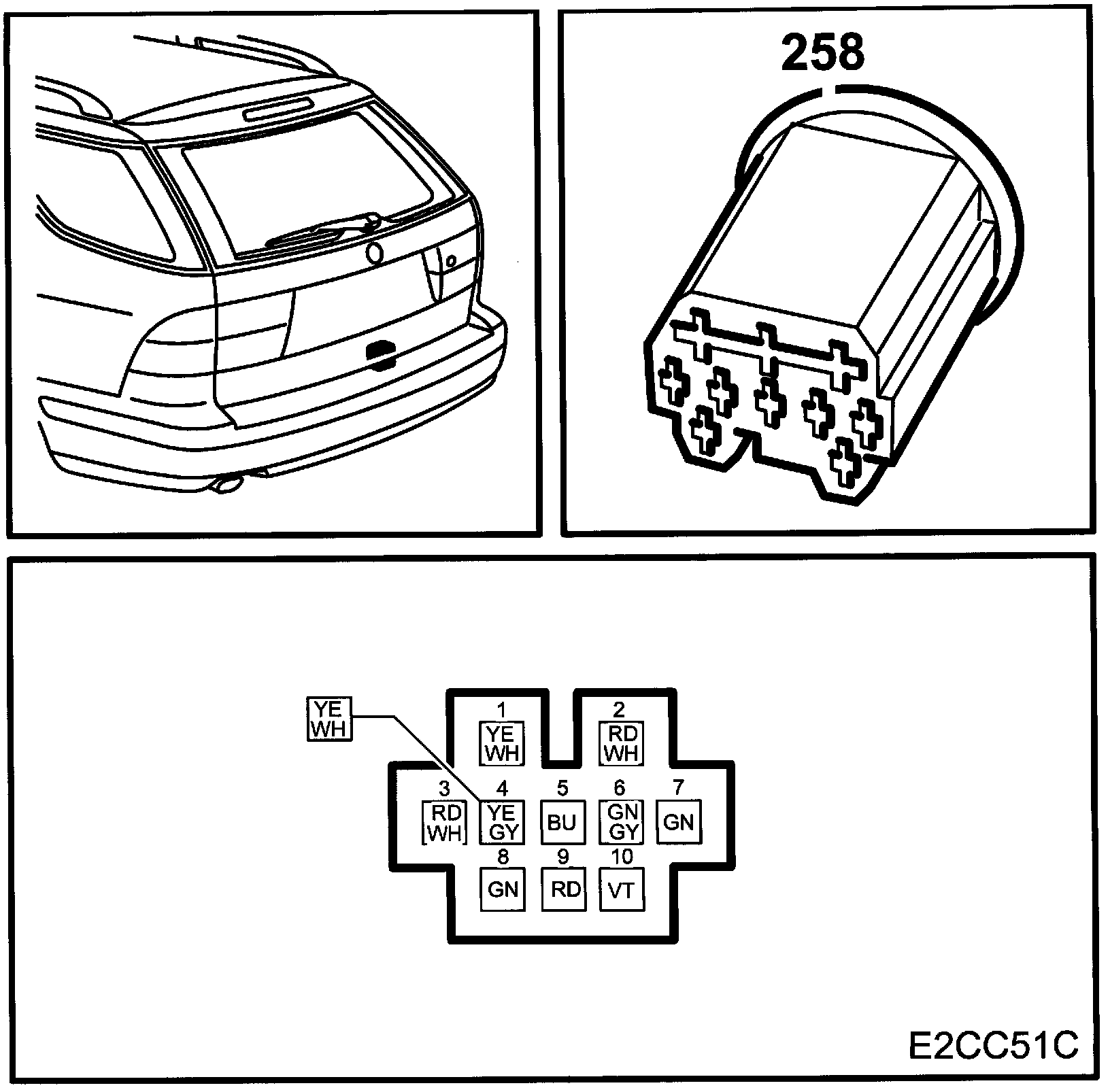

Connection, Trailer Connector (258) (Part 2):
