Grounding Point G3
Grounding Point G3
Location:
In luggage compartment under LH light cluster.
Grounding Point G3:

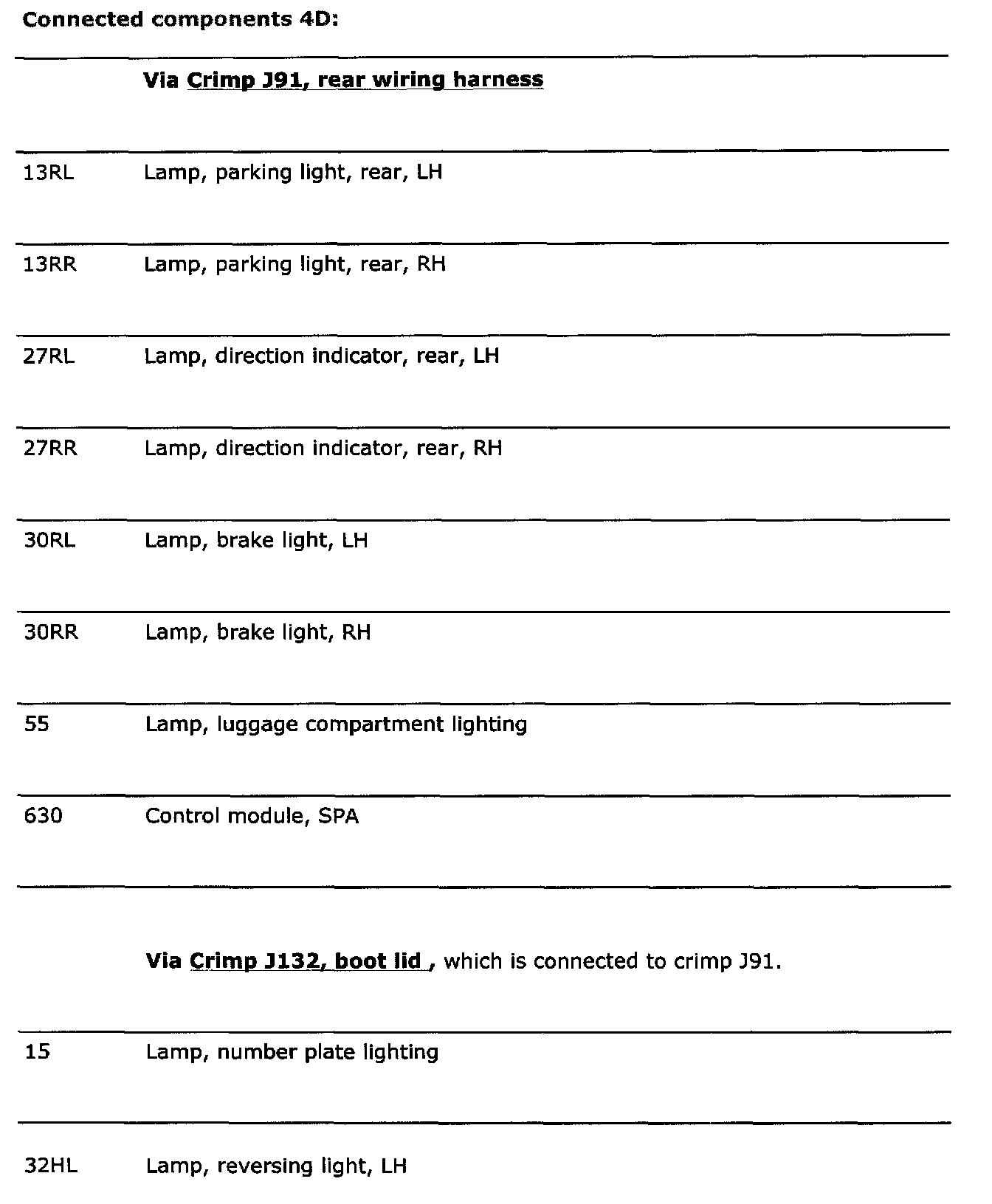

Connected Components 4D (Part 1):
Connected Components 4D (Part 2):

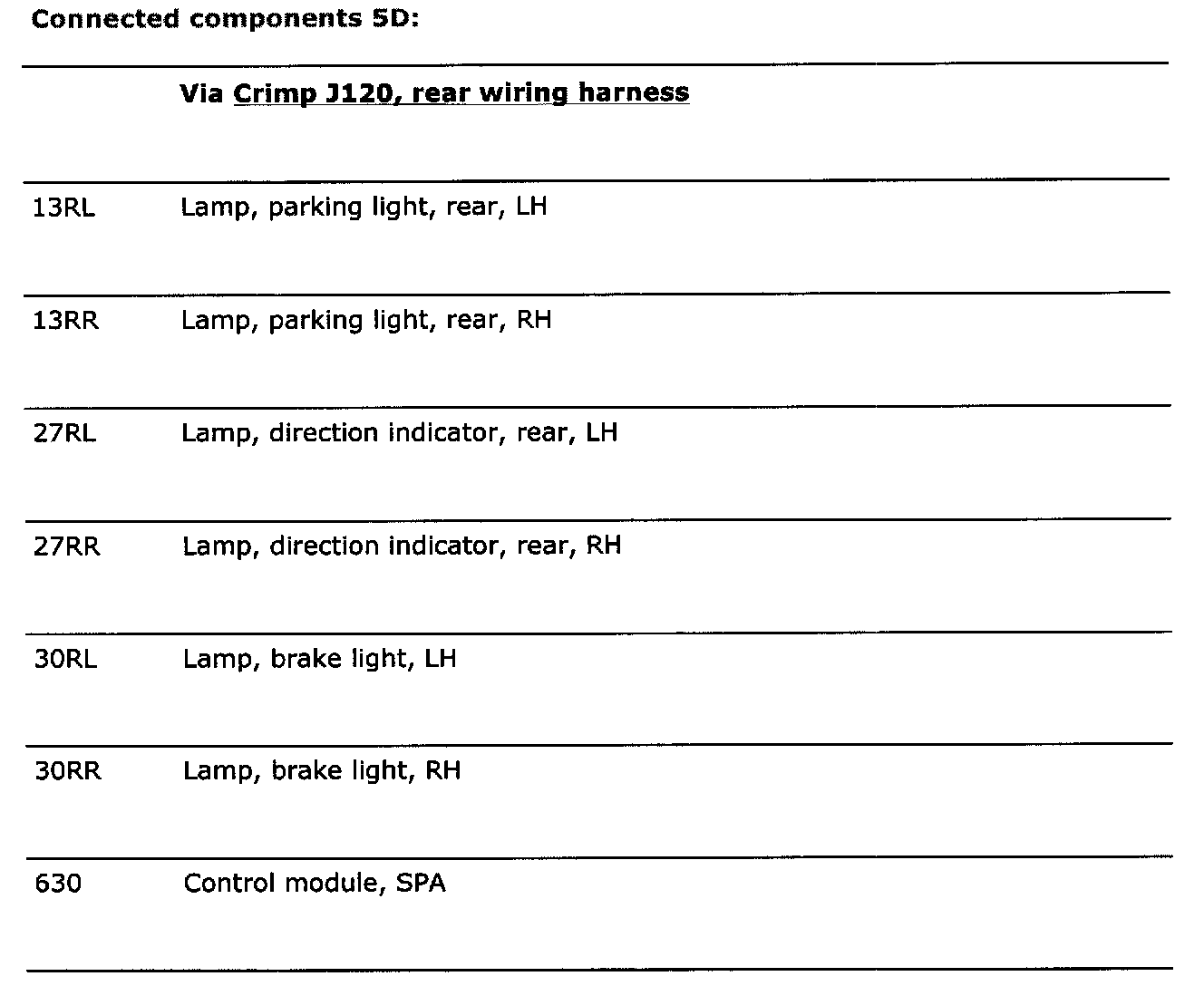

Connected Components 5D:
