Grounding Point G41P
Grounding Point G41P
Location:
Left grounding screw on middle of knee member (in cabin).
Grounding Point, G41P:

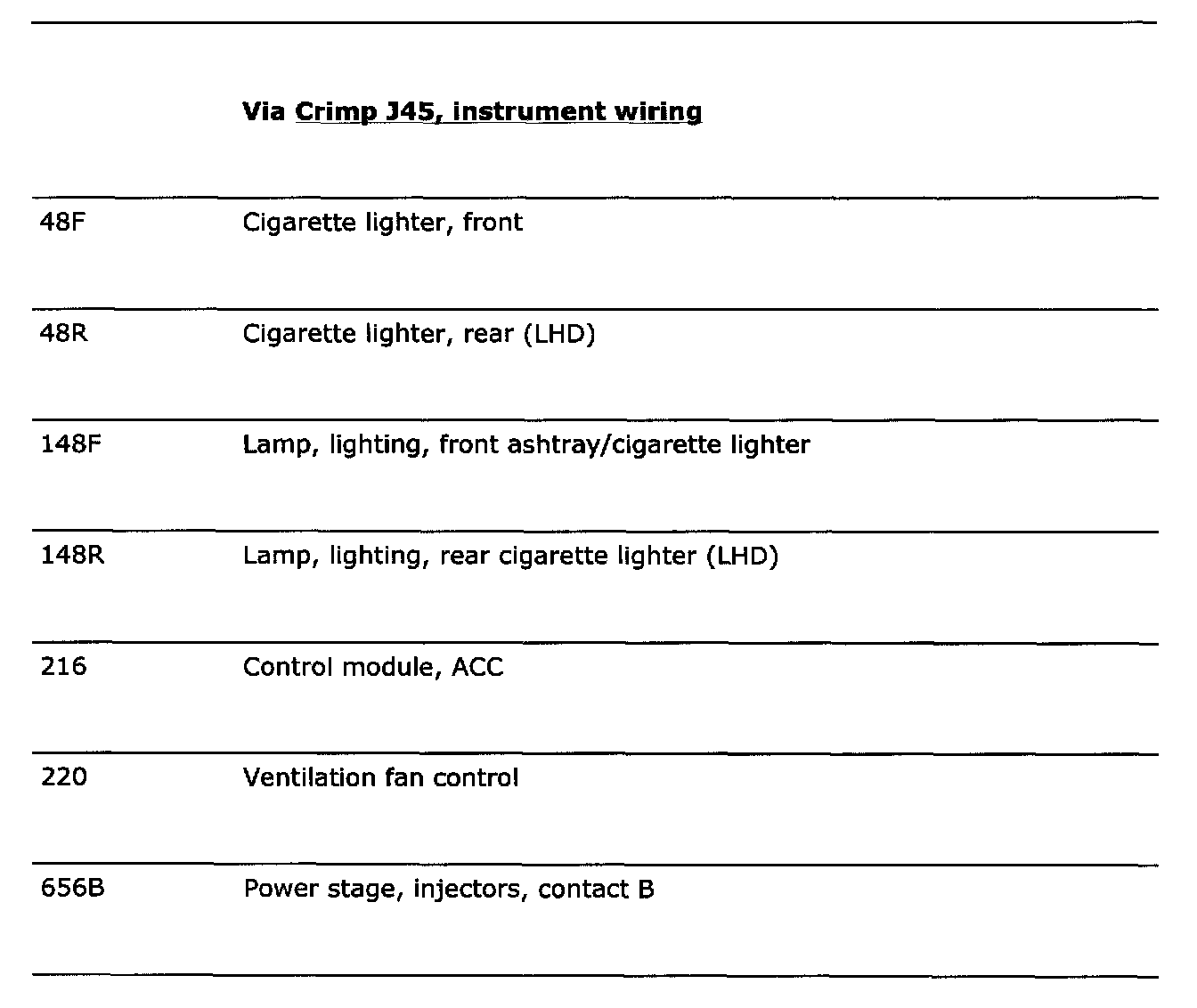

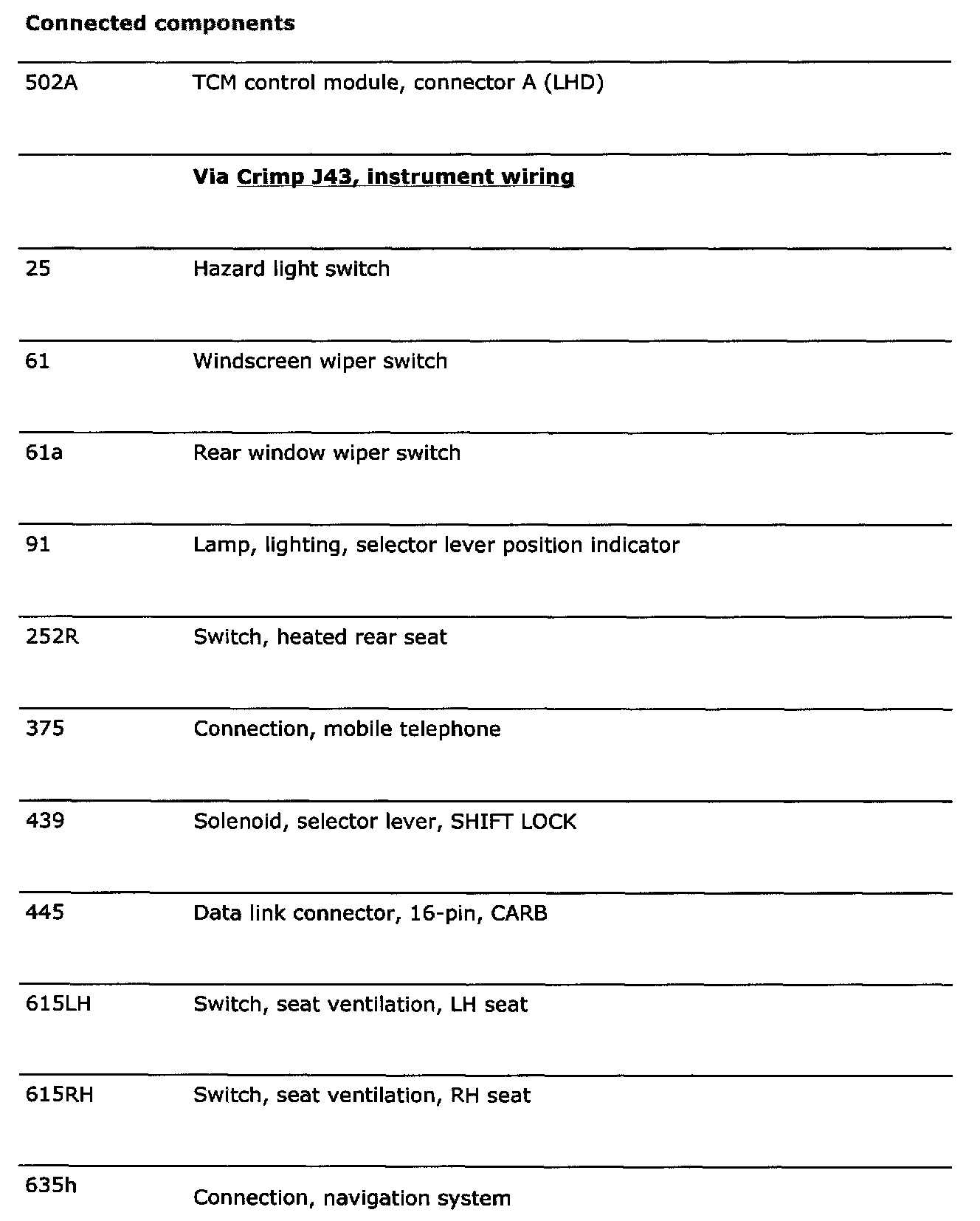

Connected Components (Part 1):
Connected Components (Part 2):
