Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2004
>>
9-5 Aero (9600) L4-2.3L Turbo (2.3HOT)
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G5
Grounding Point G5
Location:
Under left-hand corner of rear seat.
Grounding Point G5:

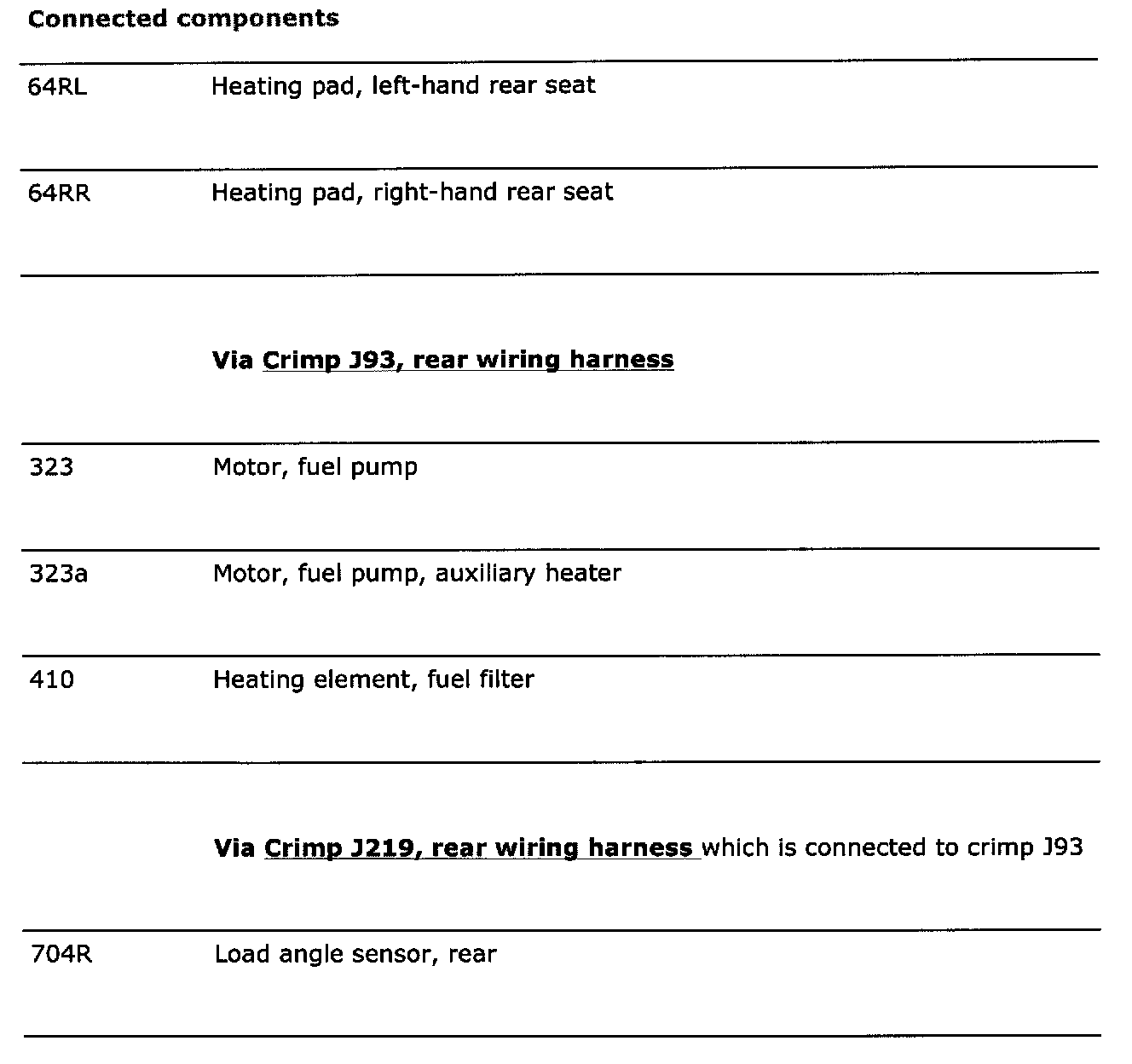

Connected Components:
